MTD011236

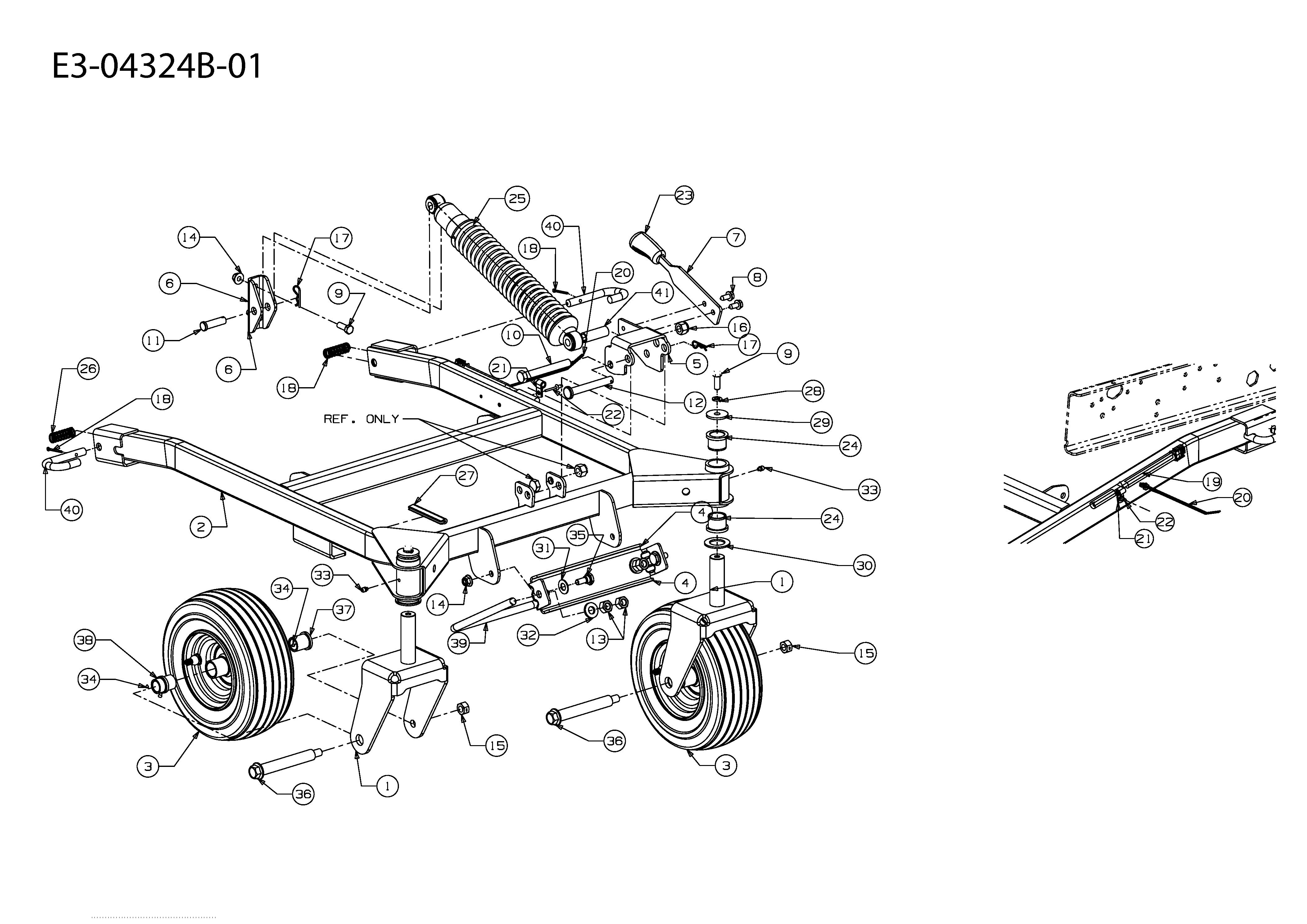

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04308	YOKE ASSY. CASTER / FIRE RED	N/A	POA
002	603-04684	FRAME ASM 50" DECK	£370.55	Add
003	634-04212B	WHEEL CPL. 11.0X4.0X5.0 BEIGE 634-04212A	£129.54	Add
004	703-05414A	BRKT:FRT DECK HNGR	N/A	POA
005	703-06568	BRACKET:SHABS MNT	£45.02	Add
006	703-06596	MT:SHABS:FRNT CUT	£35.47	Add
007	703-06673	HNDL:BRAKE/SHABS	£30.22	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-0514	HEX BOLT	£3.81	Add
010	710-0786	HHCS:1/2-13:4.00:GR5:STD	£7.63	Add
011	711-04997	PIN:CLEVIS:.50 DIA X 1.59	£24.91	Add
012	711-1206	PIN:CLV: .500 DIA X 3.75 LG	£27.05	Add
013	712-0206	NUT	£3.42	Add
014	712-04065	NUT	£4.02	Add
015	712-3022	NUT:HEXLK:1/2-13:GRB:CTRLK	£10.83	Add
016	712-3083	NUT	£2.79	Add
017	714-04023	COTTER PIN	£7.22	Add
018	714-0470	COTTER PIN	£5.07	Add
019	725-04715	HARN:INTERLOCK:FMZ	£39.30	Add
020	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
021	726-04056	CLAMP:HOSE:-3	£42.84	Add
022	728-04000	RIV:POP:.188 DIA x .300 L	£4.64	Add
023	731-04735	Handle	£24.91	Add
024	731-05500	BRG-FLANGE:1,00 ID x 1.246 OD	£14.25	Add
025	732-04512	ABSORBER-SHOCK:FRONT CUT	£141.58	Add
026	732-3127	COMPR. SPRING:0.66 OD x 1.9 LG	£7.05	Add
027	735-04130	TRIM:EDGE:RZ	£12.81	Add
028	736-0169	L. WASHER	£2.89	Add
029	736-0227	WASH:FLAT:.390x1.500x.134	£10.28	Add
030	736-0250	WASH:FLAT:1.00x1.75x.107	£10.32	Add
031	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
032	736-3019	WASHER FLAT	£5.39	Add
033	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
034	737-3007	GREASE:ALAVANIA EP2	N/A	POA
035	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
036	738-04182A	BOLT:SHLDR:.750x4.75:1/2-13	£12.84	Add
037	741-0516B	FLANGE BEARING .760x1.00x1.20	£12.25	Add
038	741-0990B	PLASTIC BEARING	£7.54	Add
039	747-04858	ROD:FRT HNGR:DECK LIFT	£34.95	Add
040	747-3188	ROD:HNDL:DECK RELEASE .5 DIA	£24.91	Add
041	750-05095	SPCR:.51 ID x.69 OD x 1.97	£14.20	Add
