MTD011238

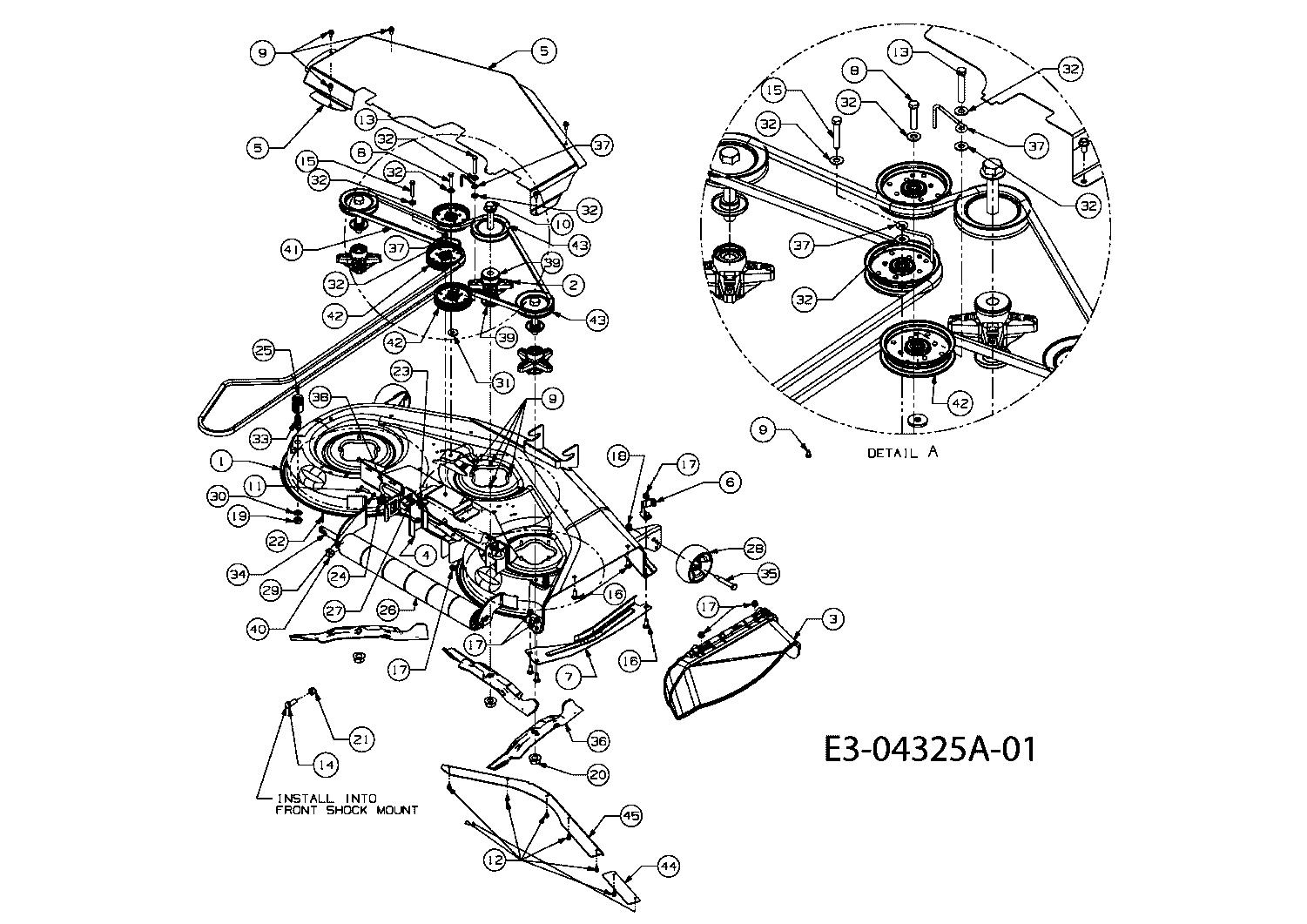

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04566	SHELL DECK 50"	N/A	POA
002	618-04426	SPINDLE ASSY	£136.79	Add
003	631-04092C	CHUT ASM:48/50/54" DECK EXPORT	£57.60	Add
004	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
005	703-06690A	COVER DECK 50"	£198.28	Add
006	703-3279	STOP:CHUT:DFL	£27.80	Add
007	703-3511B637	GUARD BLACK	£30.09	Add
008	710-0347	HEX SCR	£3.72	Add
009	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
010	710-04781	BOLT	£34.49	Add
011	710-0528	SCREW (DNR)	£3.55	Add
012	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
013	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
014	710-3032	BOLT-HEX 1/2-13X1-1/4	£10.97	Add
015	710-3144	SCREW	£3.28	Add
016	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
017	712-04065	NUT	£4.02	Add
018	712-0431	NUT	£3.20	Add
019	712-0641	NUT	£6.47	Add
020	712-3078	NUT HEX FLANGE 3/4-16	£11.32	Add
021	712-3083	NUT	£2.79	Add
022	714-0162	COTTER PIN	£2.79	Add
023	714-0470	COTTER PIN	£5.07	Add
024	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
025	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
026	731-3305	ROLLER:DECK:48/50/60	£43.85	Add
027	732-0306A	SPACER	£5.28	Add
028	734-04155	WHEEL:DECK	£16.47	Add
029	736-0119	LOCK WASHER 5/16	£3.33	Add
030	736-0225	WASHER (RED)	£5.32	Add
031	736-0247	F.I. WASHER	£8.70	Add
032	736-0300	WASHER	£2.81	Add
033	737-04003D	NOZ:DECK:WATER	£19.14	Add
034	738-04260	SHF:.75 DIA x 26.893 LG	£70.33	Add
035	738-3056	SHOULDER BOLT	£12.94	Add
036	742-04068C	BLADE	£40.81	Add
037	747-04530	ROD KEEPER	£19.05	Add
038	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
039	748-3065A	SPCR:SPDL:DECK	£14.96	Add
040	750-0212	SPCR:.82 ID x 1.00 OD x.53	£12.80	Add
041	754-04188	DECK BELT	£100.15	Add
042	753-08171	KIT IDLER PULLEY	£37.57	Add
043	756-3096	PUL:SPDL:60" DECK	£35.54	Add
044	783-04415	SKIRT:RH:50"	N/A	POA
045	783-06125	SKIRT:CNTR:50" EXPORT	N/A	POA
