MTD011006

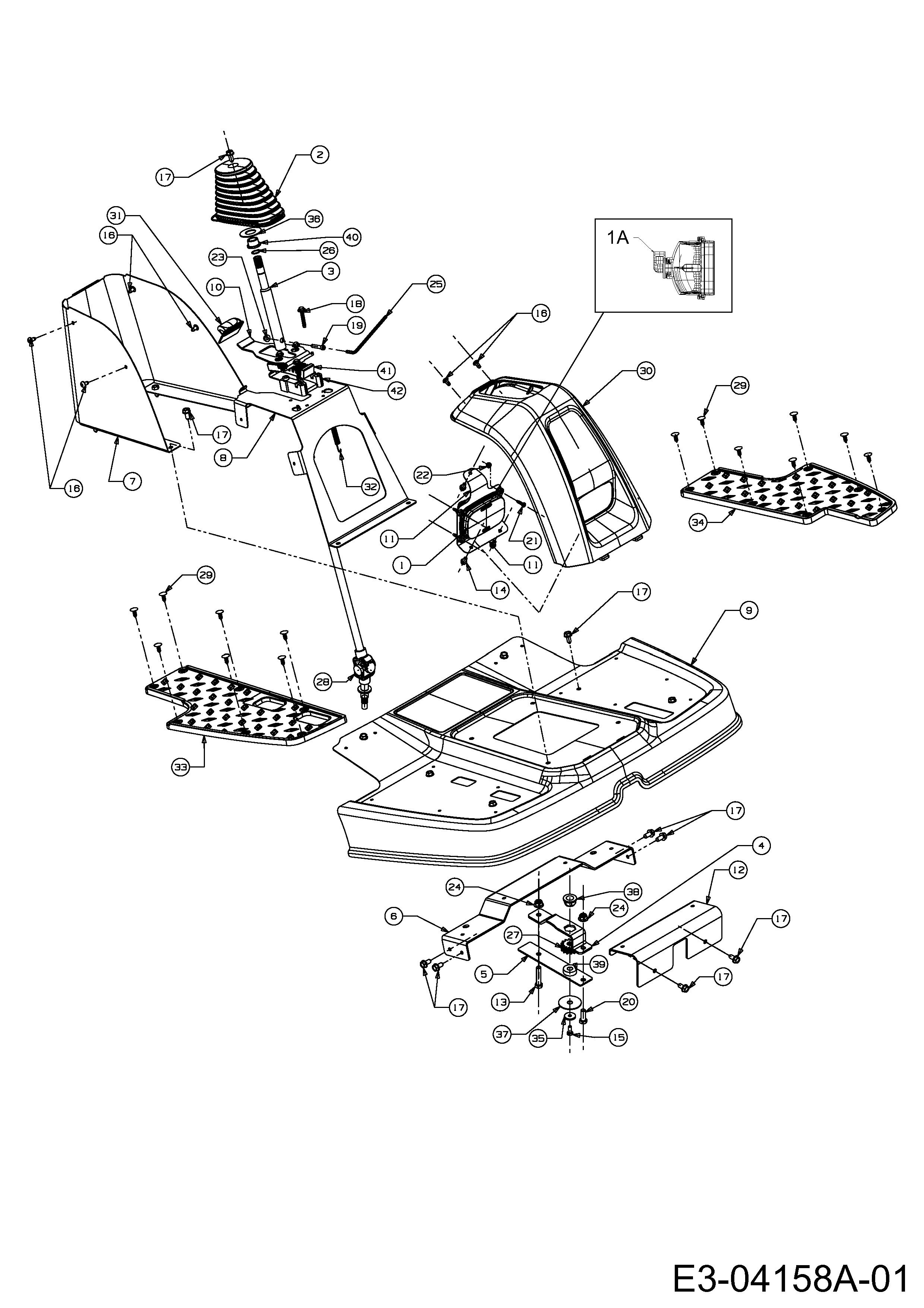

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	625-04036	HDLT ASM:UV:DOMESTIC	£65.02	Add
002	631-0076	NO LONGER AVAILABLE	N/A	POA
003	638-04018	SHAFT-UPPER STEERING	£74.01	Add
004	703-06388	BRKT:SUPT:STEERING UPPER	£31.44	Add
005	703-06497	BRKT:STRG:STUB PIVOT	£39.70	Add
006	703-06498	BRKT:CNSOL:MOUNT FRONT CUT	N/A	POA
007	703-06551	CONSOLE-STEERING	£150.94	Add
008	703-06553	BRKT:CNSOL:REINFORCEMENT	£111.43	Add
009	703-06558	BOARD-RUNNING	£209.88	Add
010	703-06560	BRACKET	N/A	POA
011	703-06563	BRKT:HDLT:FC	£61.20	Add
012	703-06633	BRKT:CNSOL:MOUNT:FRONT:FC	N/A	POA
013	710-0347	HEX SCR	£3.72	Add
014	710-04187	SCH:HL:1/4-15:0.50:HXINDWSH	£4.22	Add
015	710-0433	HEX BOLT	£6.66	Add
016	710-04483	SCR:TT:1/4-20:0.500 PANTRXI	£11.98	Add
017	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
018	710-04586	NO LONGER AVAILABLE	N/A	POA
019	710-04776	NO LONGER AVAILABLE	N/A	POA
01A	725-3161A	BULB-HEAD LAMP	£43.41	Add
020	710-0514	HEX BOLT	£3.81	Add
021	710-3009	NO LONGER AVAILABLE	N/A	POA
022	712-0161	NYLOK NUT #10-24	£6.05	Add
023	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
024	712-04065	NUT	£4.02	Add
025	714-04065	TOOL:WRENCH:3/16 ALLEN	N/A	POA
026	716-0115	RING:RET:.56 DIA SHAFT	£3.59	Add
027	717-04570	NO LONGER AVAILABLE	N/A	POA
028	717-04571	SHAFT LWR 20.09"	£157.16	Add
029	726-3046	MOUNTING CLIP:.250 DIA	£3.11	Add
030	731-06324	NO LONGER AVAILABLE	N/A	POA
031	731-3224	LEVER:TILT	£34.35	Add
032	732-0932	NO LONGER AVAILABLE	N/A	POA
033	735-04124	PAD:FOOT:FC RIGHT	£37.77	Add
034	735-04125	PAD:FOOT:FC LEFT	£37.77	Add
035	736-0176	WASHER:FLAT:.265 x .938 x .120	£5.70	Add
036	736-0514	WASH:FLAT:.885 x 1.850 x.060	£3.07	Add
037	736-0518	WASH:THRST:.445 x 1.920 x.060	£6.50	Add
038	741-0225	HEX FLANGE BEARING	£4.92	Add
039	741-04323	NO LONGER AVAILABLE	N/A	POA
040	748-0176	FLANGE BEARING	£8.62	Add
041	748-3083A	NO LONGER AVAILABLE	N/A	POA
042	748-3084A	BLOCK-TILT STEERING 748-3084	£77.64	Add
