MTD011701

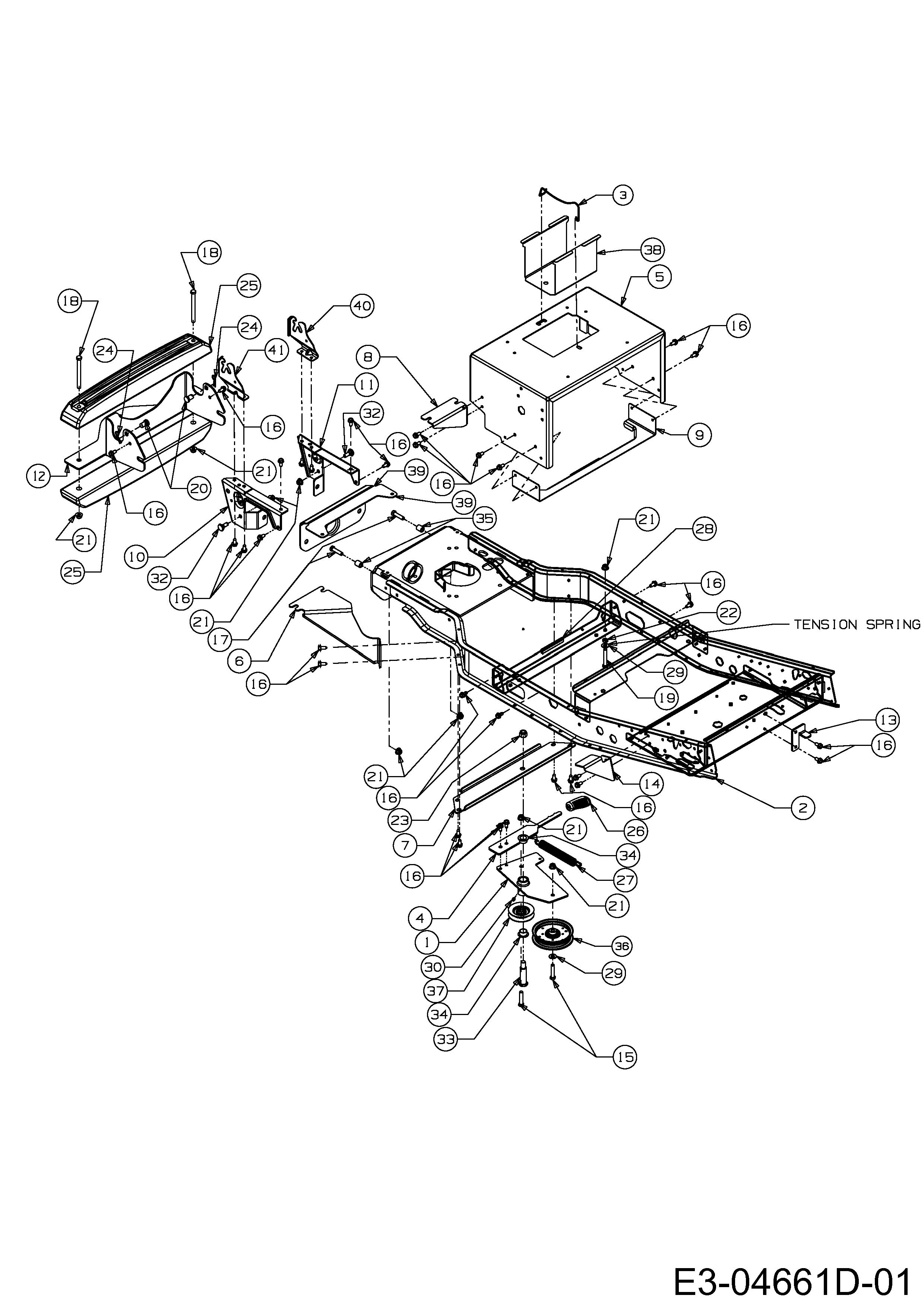

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04573	IDLR ASM:FRONT CUT	N/A	POA
002	603-04657B		N/A	POA
003	683-04448	ROD:BATT:HOLD LT-5	N/A	POA
004	703-05396A	LEVER, PARK BRAKE ENGAGEMENT	£58.33	Add
005	703-06446A	SEAT:FRAME:FMZ	N/A	POA
006	703-06472	BRACKET,FUEL TANK	N/A	POA
007	703-06540	BRKT:IDLER:FRONT CUT	N/A	POA
008	703-06567A	BRKT:TANK SUPT	N/A	POA
009	703-06597A	BRKT:SUPT:BELT KEEPER	N/A	POA
010	703-06670	BRKT:PIVOT:SUPT RH	N/A	POA
011	703-06671	BRKT:PIVOT:SUPT LH	N/A	POA
012	703-07215A	PLATE:TOW:FMZ	£108.18	Add
013	703-07230	LIFT:STOP:FRM	N/A	POA
014	703-07240A	BRKT:SUPT:RUNBD:RH	N/A	POA
015	710-0347	HEX SCR	£3.72	Add
016	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
017	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
018	710-0944	SCREW HEX CAP	£4.50	Add
019	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
020	711-0332	CLEVIS PIN (RED)	£13.13	Add
021	712-04065	NUT	£4.02	Add
022	712-3008	NUT:JAM:3/8-16:GR5	£3.26	Add
023	712-3083	NUT	£2.79	Add
024	714-04023	COTTER PIN	£7.22	Add
025	719-04271A	WEIGHT - RZT BAGGER	£203.48	Add
026	731-04735	Handle	£24.91	Add
027	732-0594A	EXTENSION SPRING	£25.17	Add
028	735-04130	TRIM:EDGE:RZ	£12.81	Add
029	736-0300	WASHER	£2.81	Add
030	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
032	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
033	738-3110	BSHLD:SCR:.750 DIA X 2.23 LG	£26.93	Add
034	741-0338	FLANGE BEARING (OBSOLETE)	£7.81	Add
035	750-0807	SPCR: .385 X.625 X.700	£3.07	Add
036	753-08171	KIT IDLER PULLEY	£37.57	Add
037	756-04325	PULLEY	£35.65	Add
038	783-0349637	BATTERY TRAY	£34.84	Add
039	783-04806	BRKT:PIVOT:BAR 4SZ	N/A	POA
040	783-04840	BRKT:PIVOT:HOOD RH	N/A	POA
041	783-04841	BRKT:PIVOT:HOOD LH	N/A	POA
