MTD011710

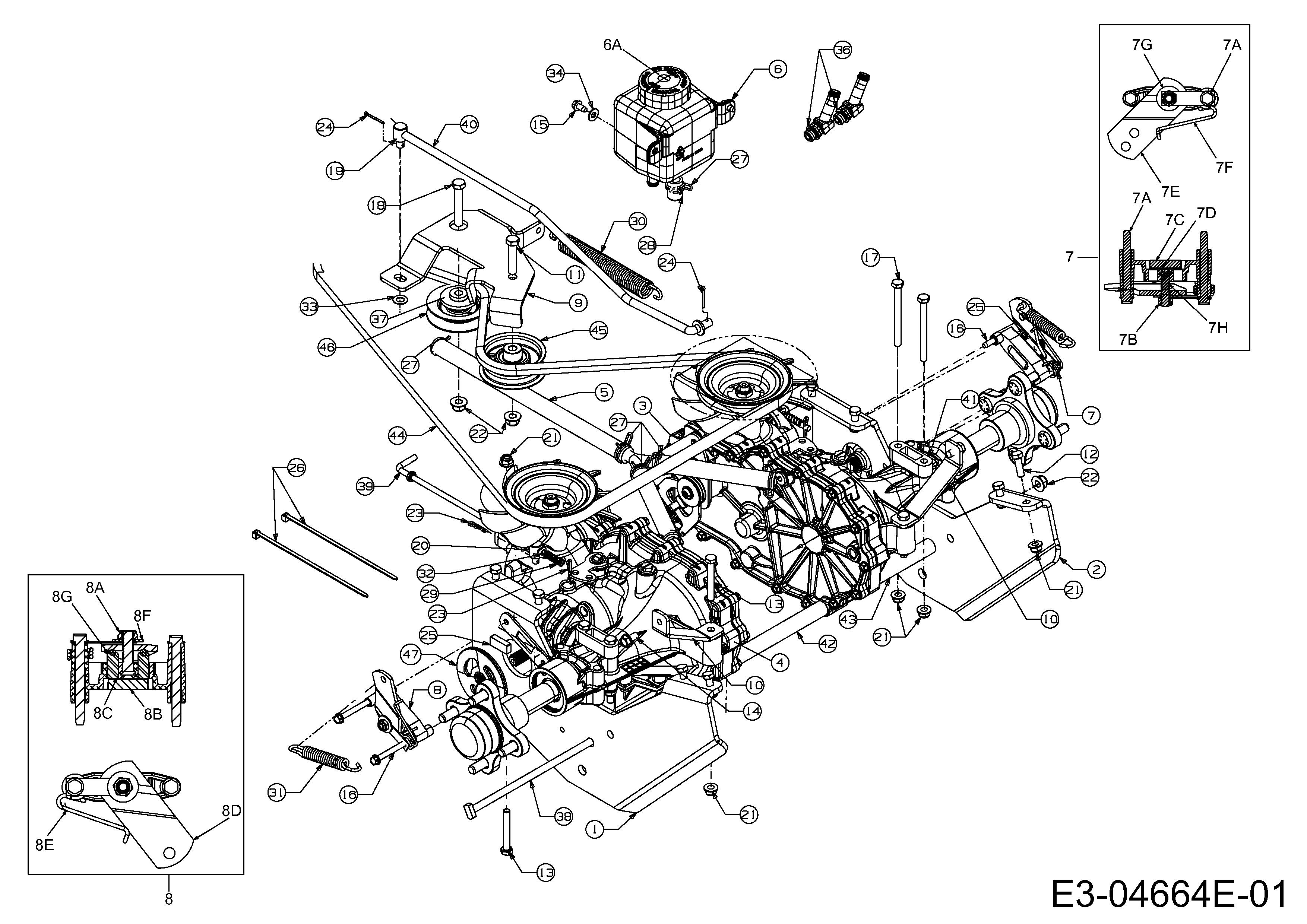

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04686	MT ASM:CRG:DECK:RH	£84.90	Add
002	603-04687	MT ASM:CRG:DECK:LH	N/A	POA
003	618-04651A	TRANS ASM:ZT2800:FMZ:LH	£799.33	Add
004	618-04652A	TRANS ASM:ZT2800:FMZ:RH	£799.33	Add
005	618-04668A	BREATHER ASM:FMZ:ZT2800	£87.32	Add
006	631-04286	TANK ASM: EXPANSION:FMZ	£62.59	Add
007	661-0009A	BRK ASM:R.H.	£124.31	Add
008	661-04023B	BRAKE ASM:LEFT:FMZ 661-04023A	£136.61	Add
009	703-06442	BRACKET:IDLER:FRONT CUT	£26.11	Add
010	703-06674A	BRKT:TRANS:STRAP	N/A	POA
011	710-0347	HEX SCR	£3.72	Add
012	710-0376	SCREW HEX CAP 5/16	£9.02	Add
013	710-0395	SCRE.HHCS:5/16-18:2.25:GR2:STD	£4.62	Add
014	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-1206	SCREW SELF TAP	£3.69	Add
017	710-1266	SCREW HHCS:5/16-18:3.5:GR5:STD	£4.70	Add
018	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
019	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
020	711-1530	FERRULE:.325 ID x .312 OD	£24.80	Add
021	712-04063	FLANGED NUT	£4.20	Add
022	712-04065	NUT	£4.02	Add
023	714-0104	PIN INTERNAL COTTER	£2.78	Add
024	714-0111	COTTER PIN	£3.20	Add
025	717-0678	PAD	£12.86	Add
026	725-0157	NO LONGER AVAILABLE	N/A	POA
027	726-04059	CLAMP-HOSE:.750	£22.08	Add
028	731-05785	CAP:1/2" ID x.870 "LG	£30.27	Add
029	732-0437	COMPR. SPRING:.34 OD x 1.0 LG	£17.07	Add
030	732-0594A	EXTENSION SPRING	£25.17	Add
031	732-0716D	SPRING EXTENSION	£14.42	Add
032	736-0175	SPRING WASHER	£3.39	Add
033	736-0314	WASHER-THRUST	£2.97	Add
034	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
036	737-04226	FTG:ELB:45:1/2" BARB x SAE-6	£31.92	Add
037	738-04162C	SPACER	£5.00	Add
038	738-04397	ROD:.337 DIA x 24,000 LG	£27.02	Add
039	747-04636	ROD:BYPASS:ZT2800	£28.02	Add
040	747-04896A	ROD:IDLR	£45.64	Add
041	748-0334	TRANSAXLE SPACER .68	£6.32	Add
042	750-05025	SPACER:.4375IDx.75ODx8.193LG	N/A	POA
043	750-05263	SPCR:.4375IDx.75ODx5.950 LG	N/A	POA
044	754-04188	V BELT	£100.15	Add
045	756-04224	IDLER PULLEY	£28.15	Add
046	756-04325	PULLEY	£35.65	Add
047	761-04061	DISC:BRAKE:FMZ	£38.88	Add
06A	HG-52375	CAP	£44.95	Add
07A	710-1206	SCREW SELF TAP	£3.69	Add
07B	712-0273	NUT:HEXLK:5/16-24:GR2:NYLON	£3.90	Add
07C	717-0678	PAD	£12.86	Add
07D	717-0682	PLATE	£14.67	Add
07E	717-0772B	LEVER, PARK BRAKE ENGAGEMENT	£13.38	Add
07F	732-0743	SPRING-TORSION .75 OD X3 COILS	£10.30	Add
07G	736-0371	WASH:THRST:.343 X .880 X .062	£3.20	Add
07H	741-0343	PIN	£10.78	Add
08A	712-0273	NUT:HEXLK:5/16-24:GR2:NYLON	£3.90	Add
08B	717-0678	PAD	£12.86	Add
08C	717-0682	PLATE	£14.67	Add
08D	717-0700	BRAKE LEVER L.H.	£45.96	Add
08E	732-0742	SPRING,EXT.1"	£12.86	Add
08F	736-0371	WASH:THRST:.343 X .880 X .062	£3.20	Add
08G	741-0343	PIN	£10.78	Add
