MTD012716

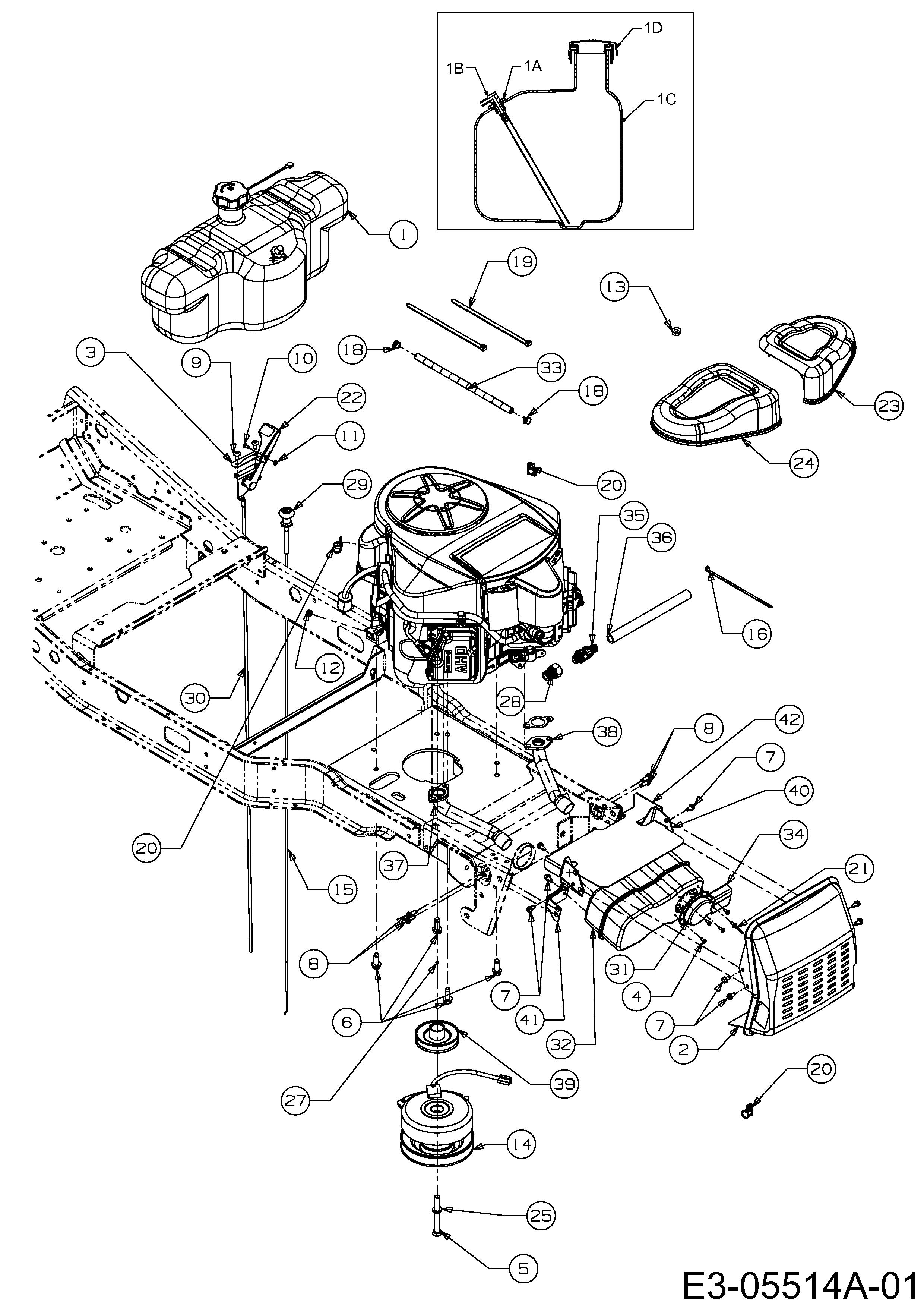

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012716

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 651-04209 TANK ASM:FUEL 3,5 GAL:MONO LY £156.07 Add
002 683-04256 SHLD ASM:MFLR N/A POA
003 703-05899 BRKT:THROT:KAW:EXPORT £75.96 Add
004 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
005 710-04379A SCREW £11.53 Add
006 710-04683 SCR:TT:3/8-16:1.000:HXINDWSH £1.97 Add
007 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
008 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
009 710-1017 TAP SCREW £2.52 Add
010 710-3217 SCR:MACH:#8-32:0.375:TRUSPHI £3.12 Add
011 712-0142 NUT:HEX:#8-32:GRA £2.98 Add
012 712-0271 NUT:SEMS:1/4-20 £2.68 Add
013 712-3005 NUT:FLGLK:3/8-16:GR5 £3.73 Add
014 717-05000 CLU:ELEC:PTO 46/50 £373.75 Add
016 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
017 725-04356 ADAPTER CABLE KAWASAKI 6 PIN £39.23 Add
018 726-0205 HOSE CLAMP 1/2 INCH DIA. £2.90 Add
019 726-0209 TIE:CBL:30.66 LG (OBSOLETE) N/A
020 726-0272 Clamp £3.41 Add
021 728-04000 RIV:POP:.188 DIA x .300 L £3.66 Add
022 731-04914 KNOB:THROTTLE CONTROL £29.12 Add
023 731-06348 CVR:GEARS:STEERING:FC RH £31.85 Add
024 731-06354 CVR:GEARS:STEERING FC LH £31.85 Add
025 736-0171 WASHER £2.50 Add
028 737-04138 FTG:1.0 HEX x M20 METRIC THD £61.98 Add
029 746-04235 CONT:CHOKE:47"LG 2"EXT EXT £37.43 Add
030 746-04581 THROTTLE CABLE £43.21 Add
031 751-0564B DEFLECTOR:MUFFLER £18.20 Add
032 751-10161 SILENCER:DUAL INLET £48.20 Add
033 751-10349 HOSE:FUEL:LOW PERMEATION £70.46 Add
034 751-10353 DEFLECTOR EXTENSION £29.78 Add
035 751-10517A OIL DRAIN £32.40 Add
036 751-10831 HOSE:EXTN:OIL DRAIN N/A POA
037 751-11006 PIPE:EXH:RH KAW TWIN 725CCFR £37.08 Add
038 751-11007 PIPE:EXH:LH KAW TWIN 725CCFR £37.08 Add
039 756-0978B PULLEY ENGINE ELECT. PTO £69.19 Add
040 783-04870637 BRACKET MUFFLER L/H BLACK £46.25 Add
041 783-04872637 BRACKET MUFFLER R/H BLACK £50.12 Add
042 783-06625 SHLD:HEAT:KAW TWIN N/A POA
043 751-12428 FUEL CAP VENTED £27.70 Add
044 751-10442 INTAKE TUBE £31.72 Add
045 735-0149 BUSHING £7.96 Add
