MTD011695

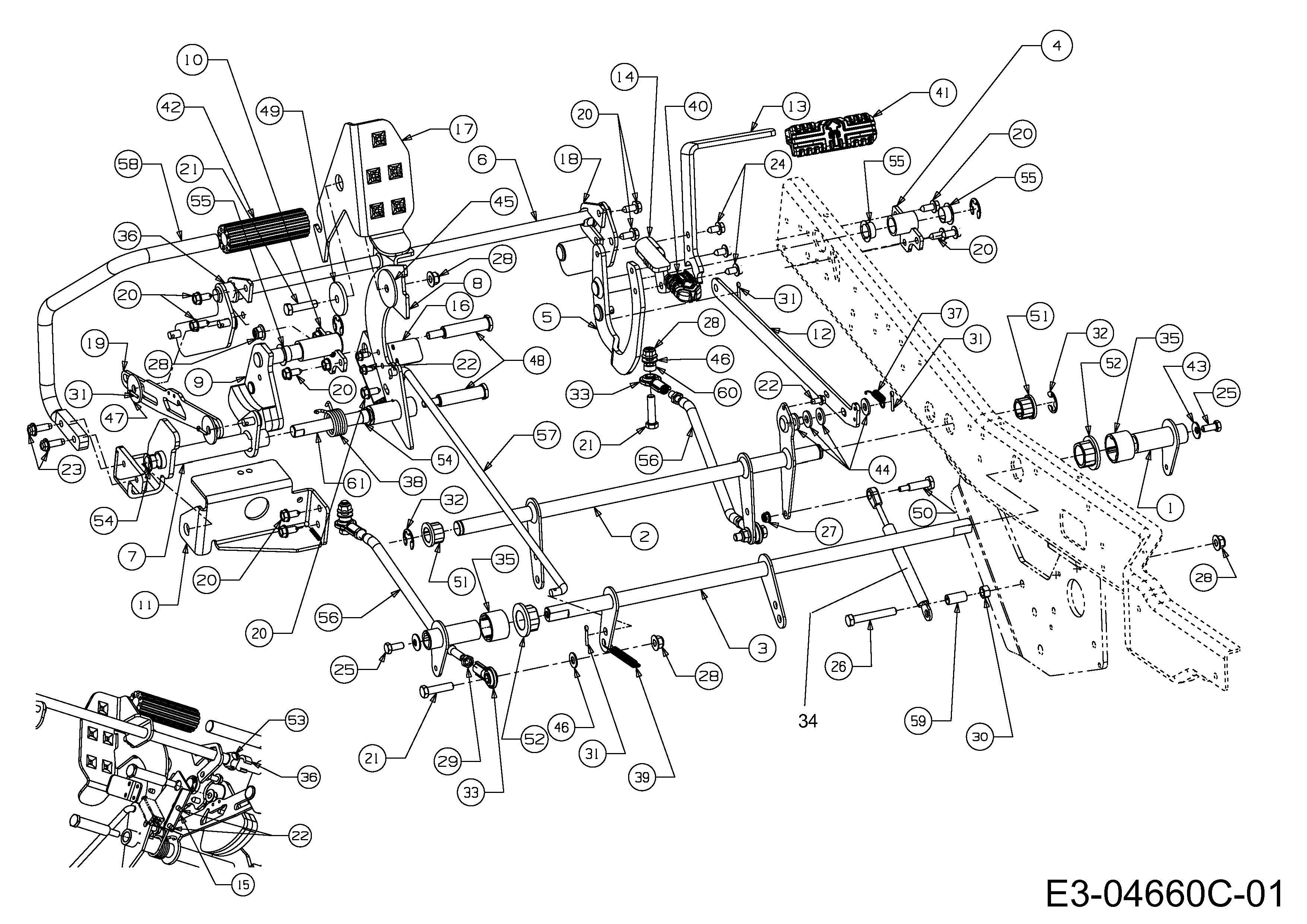

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011695

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04526B BRAKE LEVER N/A POA
002 603-04535B SHF ASM:PED CONT N/A POA
003 603-04560A SHF ASM:CROSS:BRAKE N/A POA
004 603-04587A HUB ASM:PIVOT:PED £37.43 Add
005 603-04590 PED ASM:FWD REV N/A POA
006 603-04697 SHAFT ASM:LIFT:CRG £77.90 Add
007 603-04699A PIVOT ASM:LIFT PEDAL N/A POA
008 603-04704 PED ASM:PIVOT:BRAKE N/A POA
009 603-04750A PLT ASM:PENDULUM SW N/A POA
010 603-04751 HUB VOLLST:PIVOT:PENDULUM SW N/A POA
011 603-04775 BEAM ASM:LOGSP:31/33 W/O TRAY N/A POA
012 703-06339A LINK:FWD/REV N/A POA
013 703-06636A PED:FWD:FMZ £21.17 Add
014 703-06654 PEDAL:REVERSE £33.81 Add
015 703-06676 BRAKE BRACKET N/A POA
016 703-06678A BRKT:BRAKE SW N/A POA
017 703-07102 PEDAL-BRAKE £68.54 Add
018 703-07198 LIFT:SUPPORT £21.02 Add
019 703-07509A LIFT:LINK:CONNECTOR £18.79 Add
020 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £4.43 Add
021 710-0520 SCREW HEX CAP 3/8 (RED) £2.96 Add
022 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
023 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
024 710-0604A SCREW £3.50 Add
025 710-0627 HEX SCREW £2.81 Add
026 710-0859 SCREW HHCS:3/8-16:2.50:GR5:STD £5.04 Add
027 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
028 712-04065 NUT £3.39 Add
029 712-0711 NUT £2.59 Add
030 712-3017 NUT:JAM:3/8-16:GR5 £2.52 Add
031 714-0474 PIN (RED) £2.71 Add
032 716-0231 E RING (RED) £2.52 Add
033 723-04035 END:ROD:B/JNT:.375 £33.64 Add
034 727-04141 CYL:DAMPER .59 OD x 7.84 LG £39.27 Add
035 731-05163 SPACER: 1.50ODX1.00IDX1.00LG £5.33 Add
036 731-06918 SPACER:.62ID x .50 LG £7.91 Add
037 732-04549 SPR:EXTN:.375 OD x 1.48 LG £19.92 Add
038 732-04637 SPR:TORSN:1.120 ID x .675 LG £9.92 Add
039 732-0611 SPR:EXTN:.38 OD x 3.6 LG £5.21 Add
040 735-04117 PAD:PEDAL:REVERSE £17.58 Add
041 735-04118A PAD:PEDAL:FORWARD £19.43 Add
042 735-04174 PAD:FOOT 4.6" LG £20.75 Add
043 736-0242 BELL WASHER £3.14 Add
044 736-0300 WASHER £2.39 Add
045 736-04018 WASH:FLAT:.380x2.000x.120 £7.14 Add
046 736-0864 WASHER THRUST £3.02 Add
047 736-3039 WASH:FLAT:.406 x 1.5 x .105 £3.12 Add
048 738-04216A BOLT:SHLDR:.625x2.515:3/8-16 £19.22 Add
049 738-04392 SPACER £13.25 Add
050 738-0572 SHOULDER BOLT £7.32 Add
051 741-0245 BRG:HEX FLANGE x.75 ID £11.03 Add
052 741-04324 BRG:FLG:HEX:1.25ID x.775LG N/A POA
053 741-3065B BRG HEX FLG .628 ID SPLIT £5.50 Add
054 741-3074 BRG:FLG:.626x.938x.344 £6.75 Add
055 741-3084 BUSH £9.62 Add
056 747-04883A ROD:CONT:F/R FC £37.70 Add
057 747-04996 ROD:BRAKE:FMZ £27.42 Add
058 747-05103 LIFT:PEDAL £76.18 Add
059 750-0434 SPACER:.375 x.50 x 1.02 LG £3.51 Add
060 750-04776 SPACER .380ID X.625 OD X .265 £8.91 Add
061 750-05244 SHAFT:LIFT:PEDAL £28.67 Add
