MTD011008

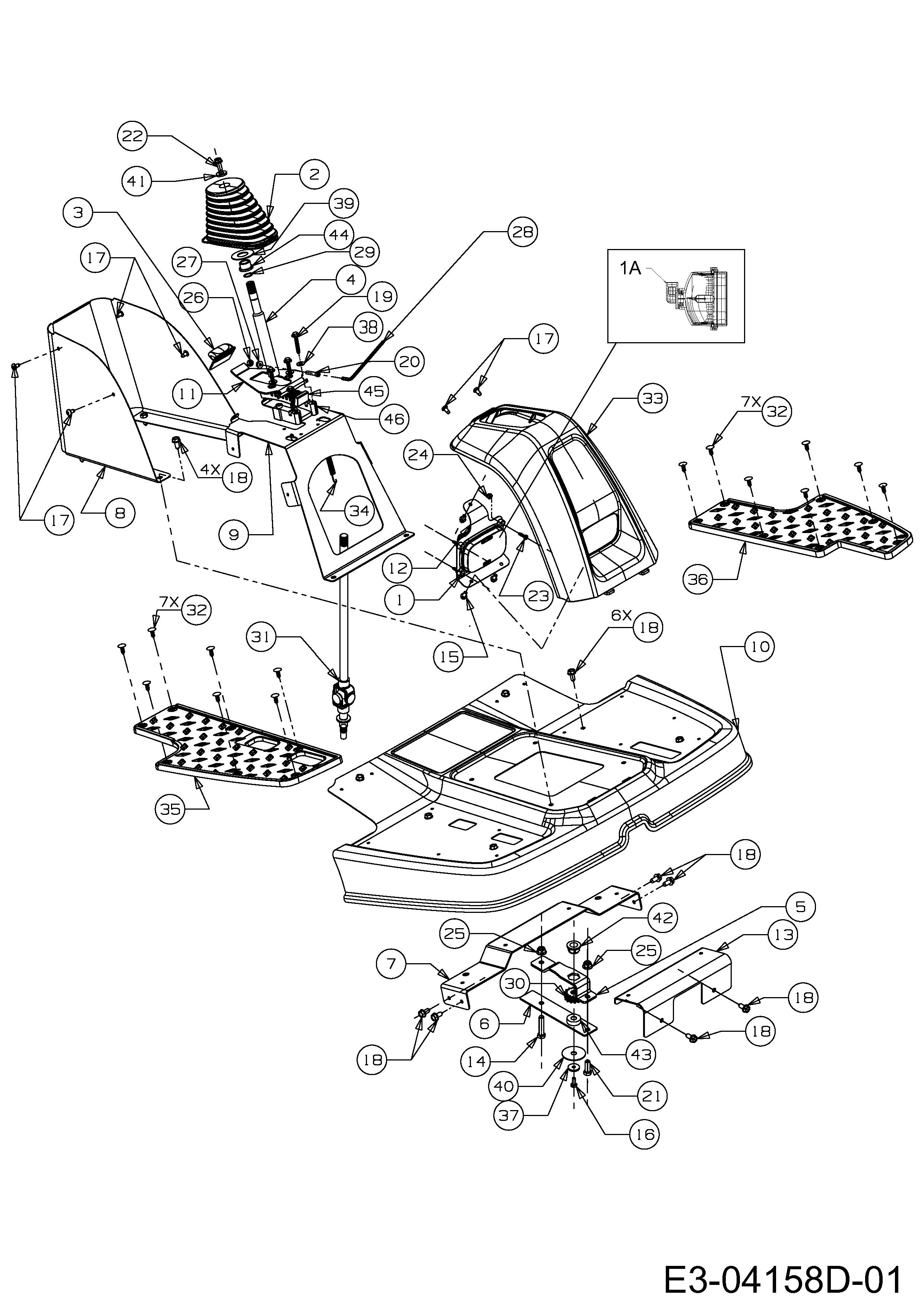

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011008

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 625-04036 HDLT ASM:UV:DOMESTIC N/A POA
002 631-0076 BOOT ASSY-TILT STEER £48.63 Add
003 631-04464 LVR ASM:TILT:w/LABEL £10.32 Add
004 638-04031 SHFT ASM:STRG:FRONT CUT £63.92 Add
005 703-06388 BRKT:SUPT:STEERING UPPER £35.76 Add
006 703-06497 BRKT:STRG:STUB PIVOT £34.37 Add
007 703-06498A BRKT:CNSOL:MOUNT FRONT CUT N/A POA
008 703-06551A CNSOL:FMZ £116.05 Add
009 703-06553 BRKT:CNSOL:REINFORCEMENT £88.80 Add
010 703-06558A BOARD:RUN:FC £172.44 Add
011 703-06560A BRKT:TILT:INDEX N/A POA
012 703-06563A BRKT:HDLT:FMZ N/A POA
013 703-06633A BRKT:CNSOL:MOUNT:FRONT FMZ N/A POA
014 710-0347 HEX SCR £3.14 Add
015 710-04187 SCH:HL:1/4-15:0.50:HXINDWSH £3.83 Add
016 710-0433 HEX BOLT £5.58 Add
017 710-04483 SCR:TT:1/4-20:0.500 PANTRXI £4.33 Add
018 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £4.43 Add
019 710-04586 SCREW:TT:1/4-20x1.625:HXINDWSH £4.22 Add
01A 725-3161A BULB-HEAD LAMP £30.37 Add
020 710-04776 SCR:SOC HD:1/4-20x1.25 LG £5.20 Add
021 710-0514 HEX BOLT £3.22 Add
022 710-0650 SCREW £2.78 Add
023 710-3009 SCR:T:#10-24:0.750:PANPHI N/A POA
024 712-0161 NYLOK NUT #10-24 £3.84 Add
025 712-04065 NUT £3.39 Add
026 712-3006 NUT £2.35 Add
027 712-3027 LOCK NUT £2.38 Add
028 714-04065 TOOL:WRENCH:3/16 ALLEN N/A POA
029 716-0115 RING:RET:.56 DIA SHAFT £3.12 Add
030 717-04570 GEAR:14T:STEERING FRONT CUT (OBSOLETE) N/A
031 717-04659 SHFT:STRG:FRONT CUT £93.87 Add
032 726-3046 MOUNTING CLIP:.250 DIA £2.94 Add
033 731-06324 HSG:COLMN:FC £53.45 Add
034 732-0932 SPR:EXT:.38 DIA x 5.6 £11.78 Add
035 735-04124 PAD:FOOT:FC RIGHT £47.84 Add
036 735-04125 PAD:FOOT:FC LEFT £47.84 Add
037 736-0176 WASHER:FLAT:.265 x .938 x .120 £4.51 Add
038 736-0463 WASH:FLAT: .250 x .630 x .052 N/A POA
039 736-0514 WASH:FLAT:.885 x 1.850 x.060 £2.68 Add
040 736-0518 WASH:THRST:.445 x 1.920 x.060 £7.66 Add
041 736-3004 FLAT WASHER £2.35 Add
042 741-0225 HEX FLANGE BEARING £4.14 Add
043 741-04323 BRG:FLG: 7/16 ID (OBSOLETE) N/A
044 748-0176 FLANGE BEARING £7.40 Add
045 748-3083A PANEL-SELECT 5SP £78.74 Add
046 748-3084A BLOCK-TILT STEERING 748-3084 £70.14 Add
