MTD010998

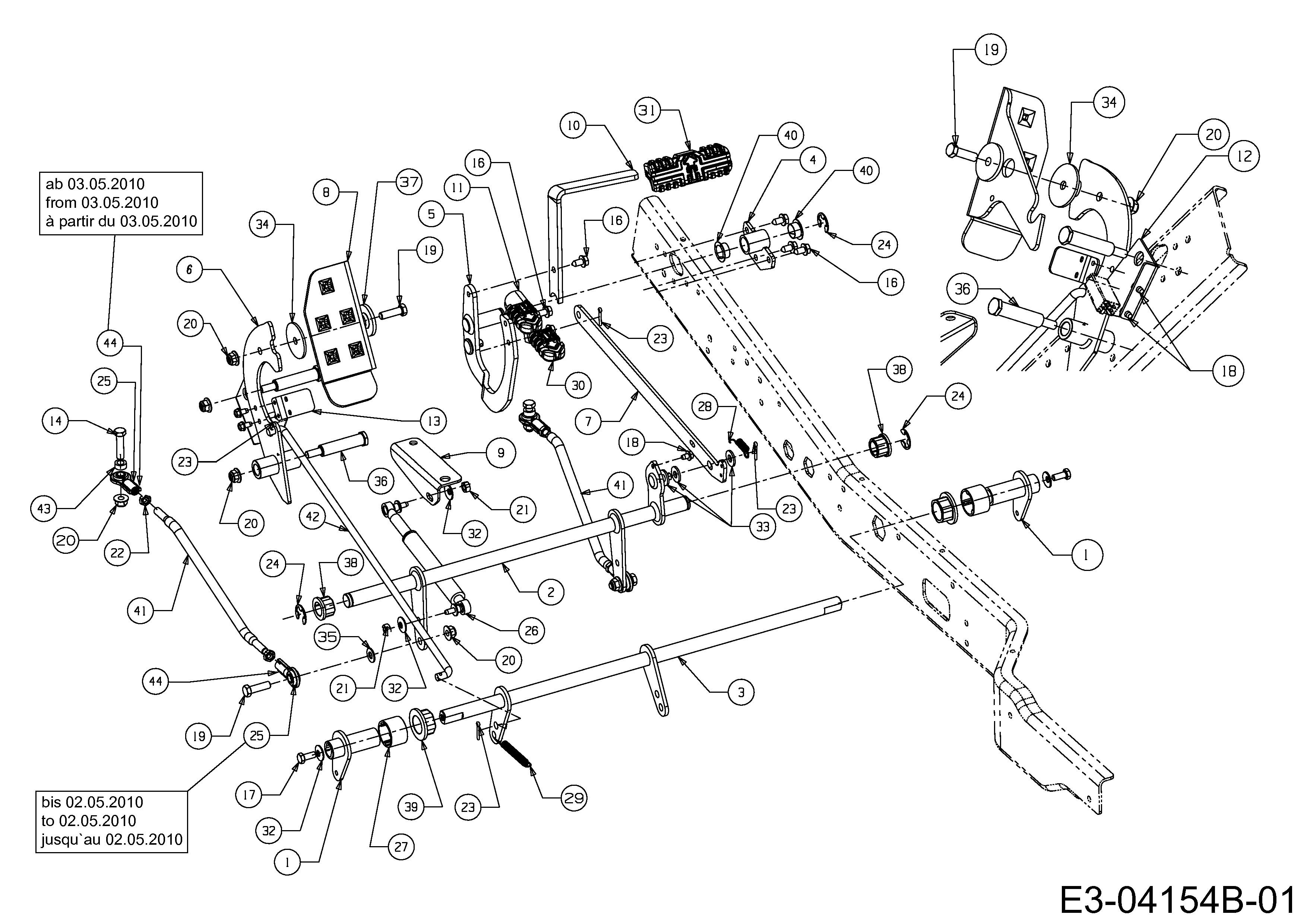

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04526	LVR ASM:BRAKE	£52.25	Add
002	603-04535	PEDAL SHAFT ASSEMBLY	£98.71	Add
003	603-04560	SHF ASM:CROSS:BRAKE	£95.61	Add
004	603-04587	HUB ASM:PIVOT:PED	N/A	POA
005	603-04590	PED ASM:FWD REV	N/A	POA
006	603-04602	BRAKE PEDAL ASSEMBLY	£73.36	Add
007	703-06339	LINK:FWD	N/A	POA
008	703-06603	brake pedal	£67.29	Add
009	703-06629	BRACKET	£30.51	Add
010	703-06636	PEDAL: EURO: HYDRO	£41.35	Add
011	703-06654	PEDAL:REVERSE	£27.52	Add
012	703-06676	BRAKE BRACKET	N/A	POA
013	703-06678	BRAKE BRACKET SWITCH	N/A	POA
014	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-0604A	SCREW	£3.62	Add
017	710-0627	HEX SCREW	£3.32	Add
018	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
019	710-3005	BOLT	£3.24	Add
020	712-04065	NUT	£4.02	Add
021	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
022	712-0711	NUT	£3.07	Add
023	714-0474	PIN (RED)	£3.20	Add
024	716-0231	E RING (RED)	£2.97	Add
025	723-04035	END:ROD:B/JNT:.375	£41.28	Add
026	727-3113	CYL.DAMPFER	£230.21	Add
027	731-05163	SPACER: 1.50ODX1.00IDX1.00LG	£4.62	Add
028	732-04549	SPR:EXTN:.375 OD x 1.48 LG	£16.77	Add
029	732-0611	SPR:EXTN:.38 OD x 3.6 LG	£5.34	Add
030	735-04117	PAD:PEDAL:REVERSE	£23.45	Add
031	735-04118A	PAD:PEDAL:FORWARD	£19.97	Add
032	736-0242	BELL WASHER	£3.72	Add
033	736-0300	WASHER	£2.81	Add
034	736-04018	WASH:FLAT:.380x2.000x.120	£5.91	Add
035	736-0864	WASHER THRUST	£3.58	Add
036	738-04216A	BOLT:SHLDR:.625x2.515:3/8-16	£25.14	Add
037	738-04392	SPACER	£15.86	Add
038	741-0245	BRG:HEX FLANGE x.75 ID	£9.33	Add
039	741-04324	BRG:FLG:HEX:1.25ID x.775LG	£9.92	Add
040	741-3084	BUSH	£11.51	Add
041	747-04883A	ROD:CONT:F/R FC	£29.82	Add
042	747-04996	ROD:BRAKE:FMZ	£30.22	Add
043	750-04776	SPACER .380ID X.625 OD X .265	£10.66	Add
044	723-04080	JOINT BALL FEMALE 3/8-24 RH	£35.94	Add
