MTD012664

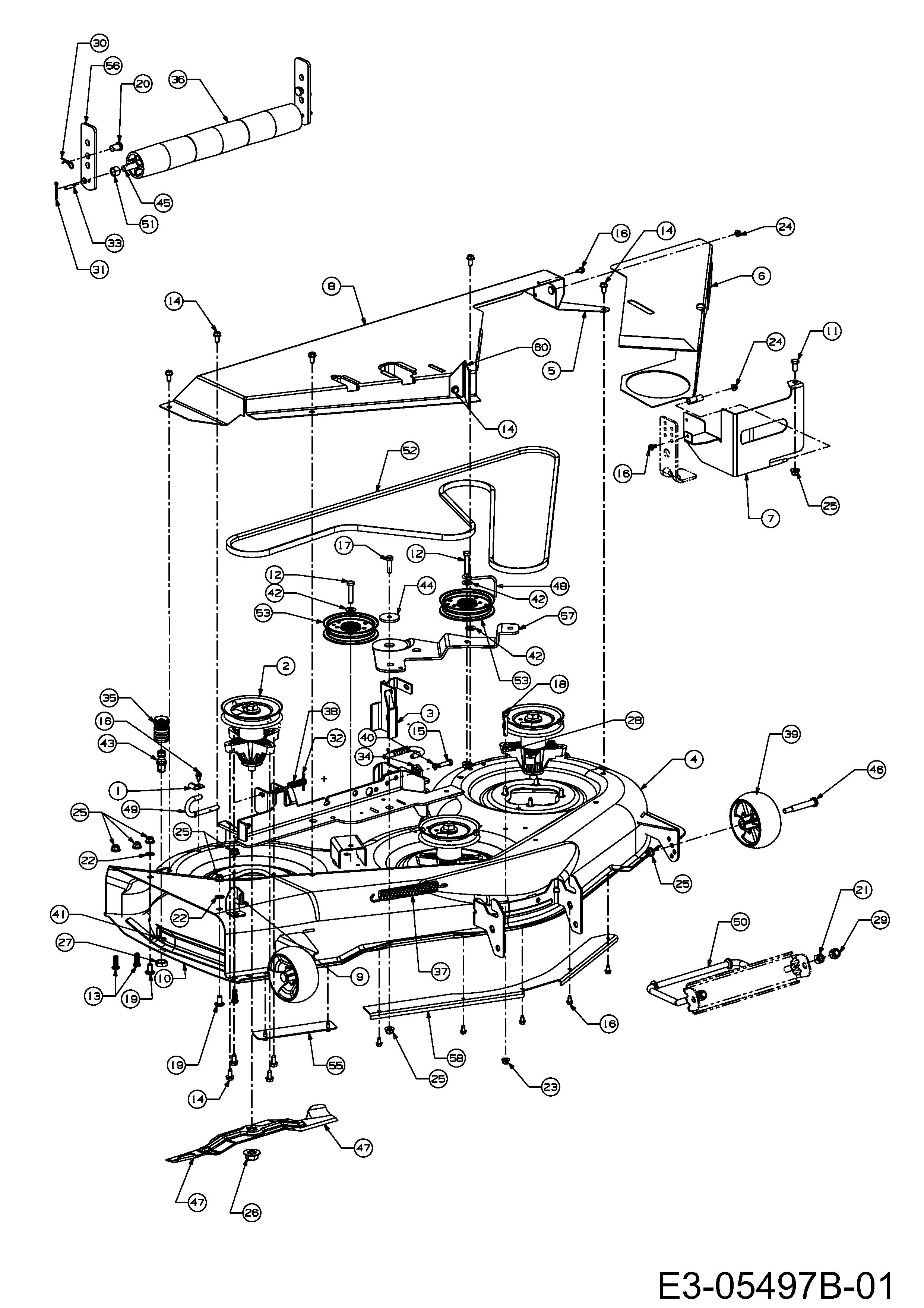

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	918-04125B	SPINDL ASM PUL 5.39 DIA x.5625	£152.37	Add
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	683-04336ACY	DECK ASM-50" SSZ	£773.55	Add
005	683-04540-CY	BRACKET CUB YELLOW	£53.25	Add
006	683-04543B	CVR ASM:SIDE:50	N/A	POA
007	683-04573	CVR ASM:PTO:11000	N/A	POA
008	683-04576	CVR ASM:DECK:50 11000	N/A	POA
009	703-3279	STOP:CHUT:DFL	£27.80	Add
010	703-3511B637	GUARD BLACK	£30.09	Add
011	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
012	710-0347	HEX SCR	£3.72	Add
013	710-04095	SCREW HEX CAP	£8.34	Add
014	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
015	710-0528	SCREW (DNR)	£3.55	Add
016	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
017	710-3005	BOLT	£3.24	Add
018	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
019	710-3178	BOLT SHORT NECK CARR	£11.46	Add
020	711-0332	CLEVIS PIN (RED)	£13.13	Add
021	712-0206	NUT	£3.42	Add
022	712-0229	NUT PUSH	£5.20	Add
023	712-04063	FLANGED NUT	£4.20	Add
024	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
025	712-04065	NUT	£4.02	Add
026	712-05134	BLADE NUT	£3.81	Add
027	712-0641	NUT	£6.47	Add
028	712-3010	NUT 5/16 x 18	£2.77	Add
029	712-3083	NUT	£2.79	Add
030	714-0145	R CLIP	£2.78	Add
031	714-0162	COTTER PIN	£2.79	Add
032	714-0470	COTTER PIN	£5.07	Add
033	715-0108	PIN-SPRING SPIR	£14.81	Add
034	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
035	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
036	731-05679B	ROLLER-FRONT 2.5X6	£28.94	Add
037	732-0459C	EXTENSION SPRING	£18.91	Add
038	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
039	734-04155	WHEEL:DECK	£16.47	Add
040	736-0119	LOCK WASHER 5/16	£3.33	Add
041	736-0225	WASHER (RED)	£5.32	Add
042	736-0300	WASHER	£2.81	Add
043	737-04003D	NOZ:DECK:WATER	£19.14	Add
044	738-04162C	SPACER	£5.00	Add
045	738-04235	SHAFT .5X20.8	£87.48	Add
046	738-3056	SHOULDER BOLT	£12.94	Add
047	742-04053C	BLADE	£39.96	Add
048	747-04530	ROD KEEPER	£19.05	Add
049	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
050	747-1324	ROD-DECK FRONT ADJUSTER .5"DIA 54"GT	£38.09	Add
051	750-1206	BUSHING	£23.45	Add
052	754-04164	V BELT	£102.03	Add
053	753-08171	KIT IDLER PULLEY	£37.57	Add
054	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
055	783-04415	SKIRT:RH:50"	N/A	POA
056	783-05411A-S	Bracket 783-05411A	£70.22	Add
057	783-05474	BRKT:IDLR:50LT W/O SPACER	N/A	POA
058	783-05513	SKIRT:CNTR:50" EXPORT	£109.17	Add
060	783-06291	COVER BELT 50" DECK	£39.93	Add
