MTD010163

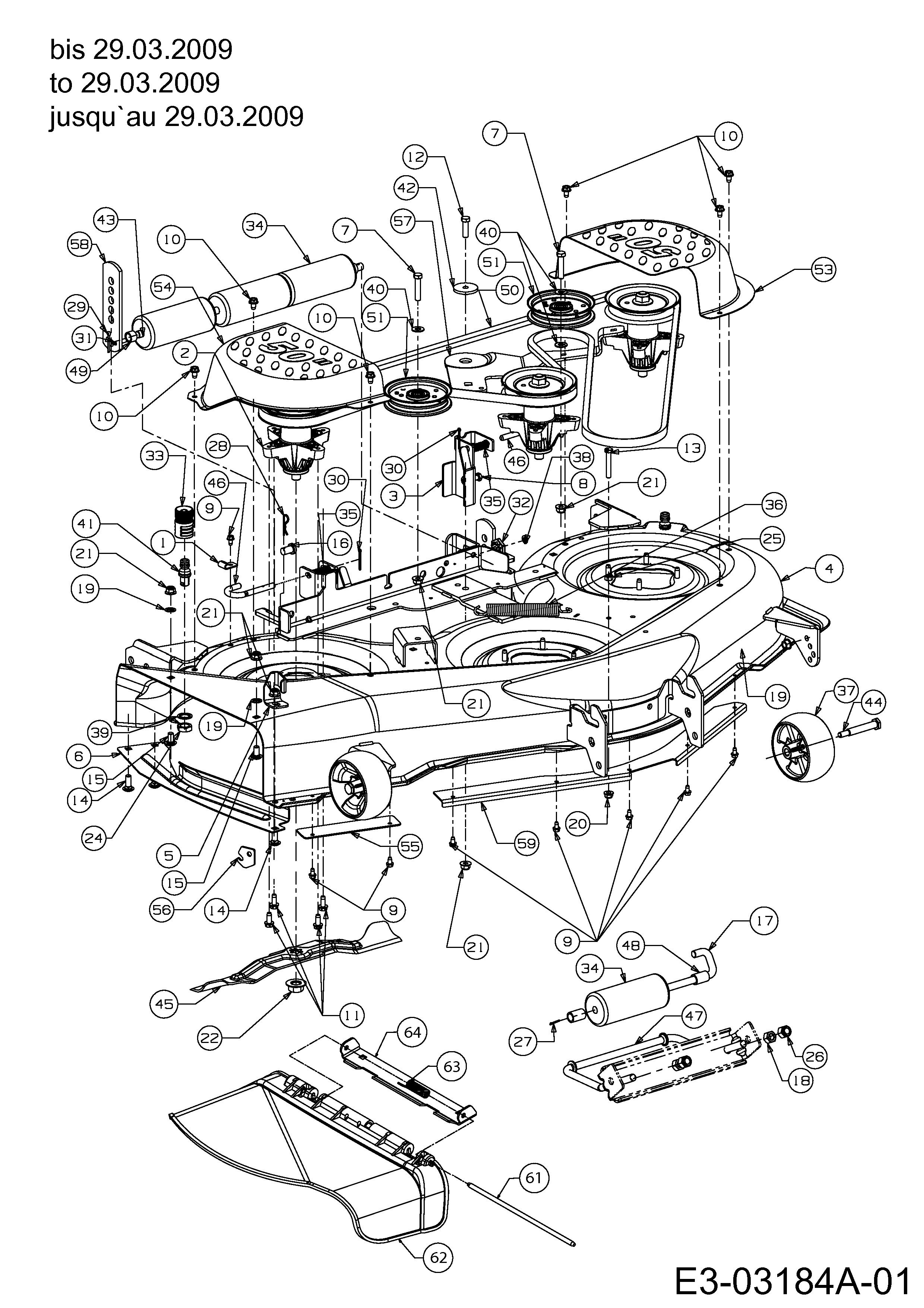

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
002	918-04125B	SPINDL ASM PUL 5.39 DIA x.5625	£152.37	Add
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	683-04336ACY	DECK ASM-50" SSZ	£773.55	Add
005	703-3279	STOP:CHUT:DFL	£27.80	Add
006	703-3511B637	GUARD BLACK	£30.09	Add
007	710-0347	HEX SCR	£3.72	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-0607	SELF TAP SCREW	£4.71	Add
011	710-1260A	SCREW	£4.00	Add
012	710-3005	BOLT	£3.24	Add
013	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
014	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
015	710-3178	BOLT SHORT NECK CARR	£11.46	Add
016	711-0332	CLEVIS PIN (RED)	£13.13	Add
017	711-1737	PIN FOR ROLLER	£21.06	Add
018	712-0206	NUT	£3.42	Add
019	712-0229	NUT PUSH	£5.20	Add
020	712-04063	FLANGED NUT	£4.20	Add
021	712-04065	NUT	£4.02	Add
022	712-05134	BLADE NUT	£3.81	Add
023	712-0431	NUT	£3.20	Add
024	712-0641	NUT	£6.47	Add
025	712-3010	NUT 5/16 x 18	£2.77	Add
026	712-3083	NUT	£2.79	Add
027	714-0111	COTTER PIN	£3.20	Add
028	714-0145	R CLIP	£2.78	Add
029	714-0162	COTTER PIN	£2.79	Add
030	714-0470	COTTER PIN	£5.07	Add
031	715-0108	PIN-SPRING SPIR	£14.81	Add
032	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
033	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
034	731-3005	ROLLER	£42.43	Add
035	732-0306A	SPACER	£5.28	Add
036	732-0459C	EXTENSION SPRING	£18.91	Add
037	734-04155	WHEEL:DECK	£16.47	Add
038	736-0119	LOCK WASHER 5/16	£3.33	Add
039	736-0225	WASHER (RED)	£5.32	Add
040	736-0300	WASHER	£2.81	Add
041	737-04003D	NOZ:DECK:WATER	£19.14	Add
042	738-04162C	SPACER	£5.00	Add
043	738-04235	SHAFT .5X20.8	£87.48	Add
044	738-3056	SHOULDER BOLT	£12.94	Add
045	742-04053C	BLADE	£39.96	Add
046	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
047	747-1324	ROD-DECK FRONT ADJUSTER .5"DIA 54"GT	£38.09	Add
048	750-0151	SPCR:.550IDx.750ODx1.125	£12.04	Add
049	750-1206	BUSHING	£23.45	Add
050	754-04077A	BELT	£113.45	Add
051	753-08171	KIT IDLER PULLEY	£37.57	Add
052	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
053	783-04399	COVER-BELT LH	N/A	POA
054	783-04400	COVER-BELT RH	N/A	POA
055	783-04415	SKIRT:RH:50"	N/A	POA
056	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
057	783-05303	BRKT:IDLR:50 w/o SPACER	N/A	POA
058	783-05411	BRACKET ASJUSTMENT	£70.22	Add
059	783-05513	SKIRT:CNTR:50" EXPORT	£109.17	Add
060	783-0720C637	BRKT:ADJ:FRT DECK ROD 783-0720C	£50.24	Add
061	711-04565	NO LONGER AVAILABLE	N/A	POA
062	631-04092C	CHUT ASM:48/50/54" DECK EXPORT	£57.60	Add
063	732-04372	SPR_TORSION:.44 ID x 2.0	£16.05	Add
064	783-05030	BRKT:CHUTE:50/54"	£21.04	Add
