PEDALS

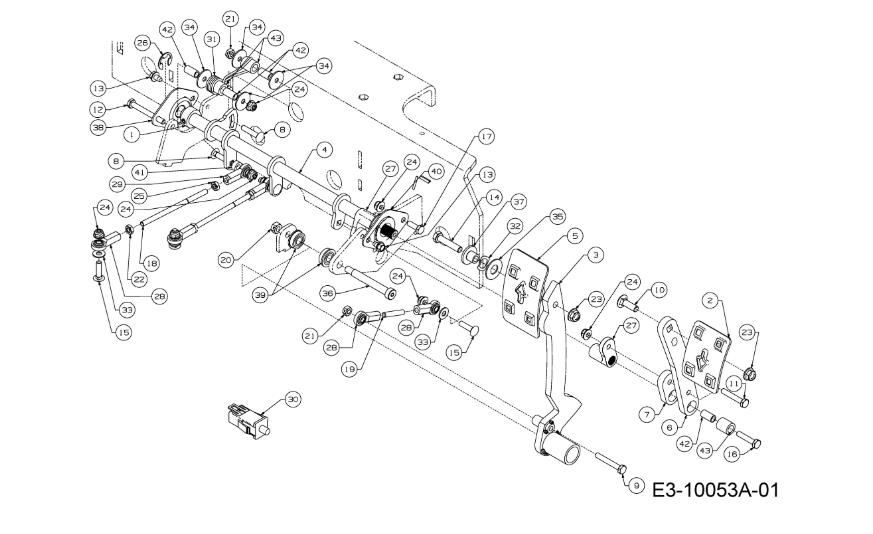

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	01006350	COLLAR SHAFT	£25.85	Add
004	680-00446	SPEED CONTROL ARM	£96.44	Add
009	710-0136	BOLT, HEX 1/4-20 x 1-3/4" 1509-069	£3.58	Add
010	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add
011	710-05289	SCREW - HEX CAP 1/4-20	£12.41	Add
012	710-0641	SCREW HHCS:1/4-20:2.25:GR5:STD	£3.19	Add
013	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
014	710-0805A	SCRE.HHCS 5/16-18:1.50	£13.70	Add
015	710-0932A	SCR:CRG:1/4-20:1.000:GR5	£3.39	Add
016	710-1062	BOLT	£11.98	Add
017	710-3015	SCREW HEX CAP	£3.33	Add
018	711-05493	CONTROL ROD	£22.81	Add
019	711-06634	STUD 1/4-28	£12.85	Add
020	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
021	712-0291	LOCK-NUT	£2.77	Add
022	712-0314	NUT:HEX JAM:1/4-28 GR2	£7.92	Add
023	712-04063	FLANGED NUT	£4.20	Add
024	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
025	712-04326	JAM NUT	£8.79	Add
026	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
027	718-04858A	ARM SHAFT PEDAL	£35.32	Add
028	723-04077	ROD END R/H	£72.08	Add
029	723-04088	ROD END L/H	£58.52	Add
030	725-3164A	SWITCH INTERLOCK (BRAKE)	£36.48	Add
031	732-04955	TORSION SPRING	£13.82	Add
032	736-0232	WAVE WASHER	£3.69	Add
033	736-04446	WASH:FLAT:.25X.630X.0515 HT	£4.11	Add
034	736-04511	WASHER	£8.19	Add
035	736-3084	WASHER FLAT	£3.77	Add
036	738-05003	BOLT SHOULDER	£27.37	Add
037	738-05022	SPACER	£15.73	Add
038	741-04566	BALL BEARING	£29.12	Add
039	741-04568	BEARING FLANGED	£60.48	Add
040	741-04569	BALL BEARING	£41.02	Add
041	750-05297	SPACER	£15.15	Add
042	750-05369	SPACER	£13.16	Add
043	750-0807	SPCR: .385 X.625 X.700	£3.07	Add
