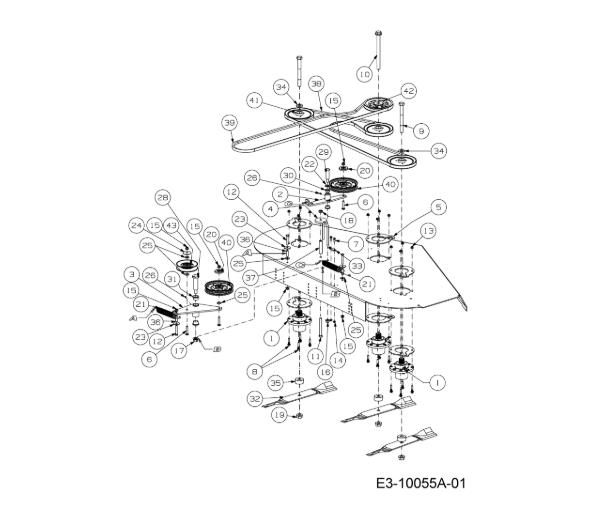

MOWING DECK V (60"/152CM)

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-05132	SPINDLE ASM PULLEY	£221.96	Add
005	703-10057A	PLATE	£49.63	Add
006	710-04157	BOLT, CARR 3/8-16x1" PLTD	£14.25	Add
007	710-04666	HHFLG:1/4-20:.75:GR5	£7.18	Add
008	710-04831A	BOLT HEX FLANGE5/16-18X1.25	£10.04	Add
009	710-05387	BLADE BOLT	£23.31	Add
010	710-05388	HEX HEAD CAP SCREW	£30.74	Add
011	710-1807	SCREW, HEX CAP 1/2-13X4.5 GR5	£11.02	Add
012	710-3011	BOLT 3/8 X 2-1/4 TYPE 5	£5.52	Add
013	712-04063	FLANGED NUT	£4.20	Add
014	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
015	712-04065	NUT	£4.02	Add
016	712-04150	NUT FLGLK 1/2-13 NYLON	£6.74	Add
017	712-04327	JAM NUT	£17.07	Add
018	712-3022	NUT:HEXLK:1/2-13:GRB:CTRLK	£10.83	Add
019	712-3078	NUT HEX FLANGE 3/4-16	£11.32	Add
020	721-04516	PULLEY CAP	£20.78	Add
022	736-0287	FLAT WASHER .78" X 1.25" X .062"	£7.92	Add
023	736-3039	WASH:FLAT:.406 x 1.5 x .105	£2.00	Add
024	736-3040	FLAT WASHER	£13.16	Add
025	736-3052	WASH:FLAT:.406 X 1.00 X .105	£3.77	Add
026	737-0146	FITTING-GREASE	£4.11	Add
028	738-05030	SHOULDER SCREW	£34.05	Add
029	738-3110	BSHLD:SCR:.750 DIA X 2.23 LG	£26.93	Add
030	741-0338	FLANGE BEARING (OBSOLETE)	£7.81	Add
031	741-04552	BUSHING	£12.14	Add
032	742-04415	BLADE HI LIFT 21.0" 60" TNK CT	£49.92	Add
033	747-06840	BELT KEEPER	£25.94	Add
034	750-05553	SPACER .812 ID X .218 LG	£12.50	Add
035	750-05617	SPACER	£25.04	Add
036	750-05673	SPACER	£17.80	Add
037	750-06561	SPACER	£17.80	Add
038	754-04319	BELT DECK	£120.46	Add
039	754-05128	V BELT	£112.48	Add
040	756-04487	TENSION IDLER	£55.60	Add
041	756-04489	PULLEY SPINDLE	£58.42	Add
042	756-04496A	PULLEY	£105.33	Add
043	756-04522	TENSION IDER	£39.31	Add
