DECK LIFT

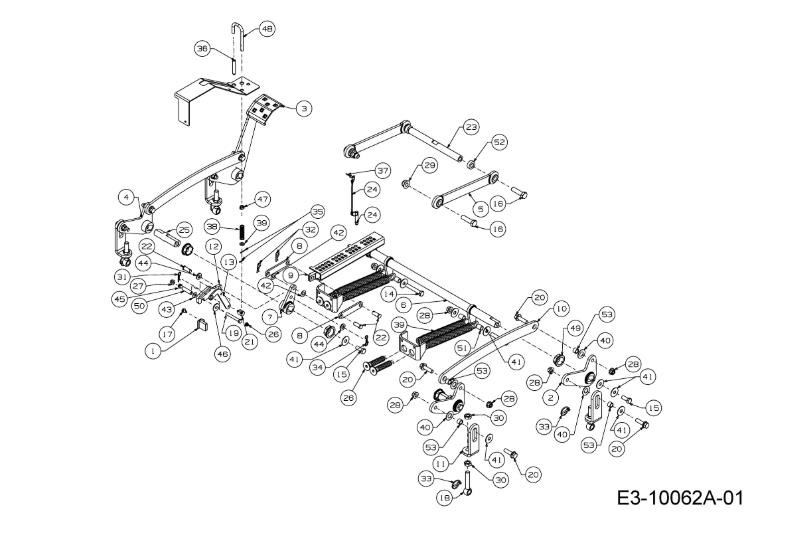

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
006	680-00444	SHAFT ASM DECK LIFT FRONT	£179.74	Add
008	703-08384	LINK	£20.12	Add
009	703-08388A	ARM SLIDER LIFT INDEX	£178.57	Add
013	703-10600	PIVOT LOCKOUT LINK	£41.34	Add
015	710-04186	SCREW	£25.02	Add
016	710-06047	SCREW HEX HEAD 5/8-11*2.25	£16.41	Add
017	710-0607	SELF TAP SCREW	£4.71	Add
018	710-06428	EYE BOLT 5/8-11X3.63	£20.15	Add
019	710-3022	HEX BOLT UTV	£3.58	Add
021	711-04038	FERRULE	£27.37	Add
022	711-04061	ROD FRONT LINK MTG	£8.53	Add
023	711-05072	FRONT LIFT LINK MOUNT SHAFT	£99.02	Add
024	711-05629	POSITIONING BOLT	£31.73	Add
025	711-06610	LIFT SHAFT LH	£29.96	Add
026	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
027	712-04065	NUT	£4.02	Add
028	712-04150	NUT FLGLK 1/2-13 NYLON	£6.74	Add
029	712-04151	LOCK NUT 5/18-11	£14.62	Add
030	712-3015	NUT	£10.65	Add
031	714-0145	R CLIP	£2.78	Add
032	714-0149B	COTTER PIN	£3.58	Add
035	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
036	720-04183	HANDLE	£15.55	Add
037	728-04016	RIVET TUBULAR	£4.65	Add
038	732-0992	SPRING	£15.17	Add
039	736-0185	FLAT WASHER (RED)	£3.59	Add
040	736-0188	FI-WASHER	£6.15	Add
041	736-0208	WASHER-FL	£9.33	Add
042	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
043	736-0300	WASHER	£2.81	Add
044	736-0326	FLAT WASHER :5101.00125	£3.69	Add
045	738-04185	SCR:SHLDR:FLG:.310X.995X1/4-20	£20.20	Add
046	738-04363	SPCR:SHLDR:.385x1.25x.3025	£11.56	Add
047	741-0475	PLASTIC BUSHING .38 INCH ID	£4.74	Add
048	747-06701	DECK LOCK OUT ROD	£17.28	Add
050	750-06031	SPACER	£4.99	Add
052	750-0960A	SPACER 6351.25.445	£11.34	Add
053	750-1206	BUSHING	£23.45	Add
