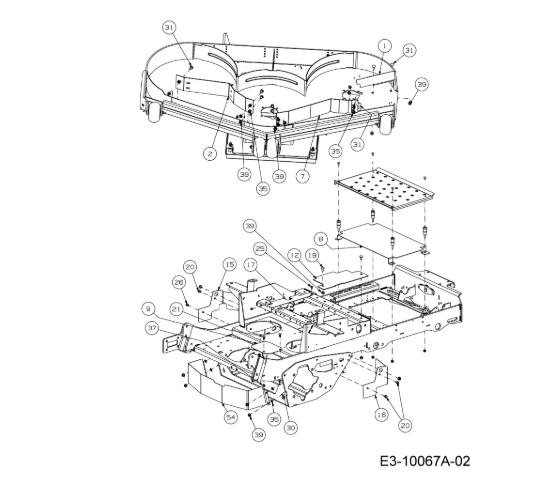

COVER PULLEY, BAFFLES MOWING DECK

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	02005195	CHUTE BAFFLE	£53.09	Add
002	02005694	ADJUSTABLE BAFFLE	£85.66	Add
003	634-3159	WHEEL ASSY´S 5"	£33.61	Add
018	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add
019	710-0389	BOLT:CRG:3/8-16:.750:GR5	£11.63	Add
020	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
021	710-0451	BOLT:CRG:5/16-18:.750 GR1	£3.70	Add
022	710-04692	SCREW 3/8-16X7.25	£22.73	Add
023	710-05177	CARRIAGE BOLT 1/4-20X.50	£7.13	Add
024	710-05355	SCREW	£32.24	Add
025	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
026	710-0607	SELF TAP SCREW	£4.71	Add
027	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
028	710-1649	BOLT-CARRIAGE 3/8-16X4.25 GR5	£17.87	Add
029	710-3022	HEX BOLT UTV	£3.58	Add
030	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
031	710-3178	BOLT SHORT NECK CARR	£11.46	Add
032	710-3279	SCREW,HEX CAP	£16.56	Add
033	711-05604	PIN	£14.09	Add
034	711-06667	SCREW INSERT SPRING	£21.59	Add
035	712-0229	NUT PUSH	£5.20	Add
036	712-0266A	NUT:JAMLK:3/8-16:GR5	£4.39	Add
037	712-04063	FLANGED NUT	£4.20	Add
038	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
039	712-04065	NUT	£4.02	Add
040	712-04150	NUT FLGLK 1/2-13 NYLON	£6.74	Add
041	712-3008	NUT:JAM:3/8-16:GR5	£3.26	Add
042	712-3015	NUT	£10.65	Add
044	726-0201	SPEED NUT	£3.10	Add
045	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
046	731-11926	DECK SKID PLATE LH	£64.70	Add
047	732-05476	SPRING	£45.23	Add
048	735-0199A	BUMPER-RUBBER:.62 OD x.22 THK	£8.74	Add
049	736-04296	WASH:FL: 6321.00.16	£9.89	Add
050	736-3078	WASH:FLAT:.344 x 1.00 x 063:HD	£4.23	Add
051	738-04091A	SCR:SHLDR:.43 x.29:TT:5/16-18	£5.45	Add
053	750-3193	BUSH	£17.14	Add
