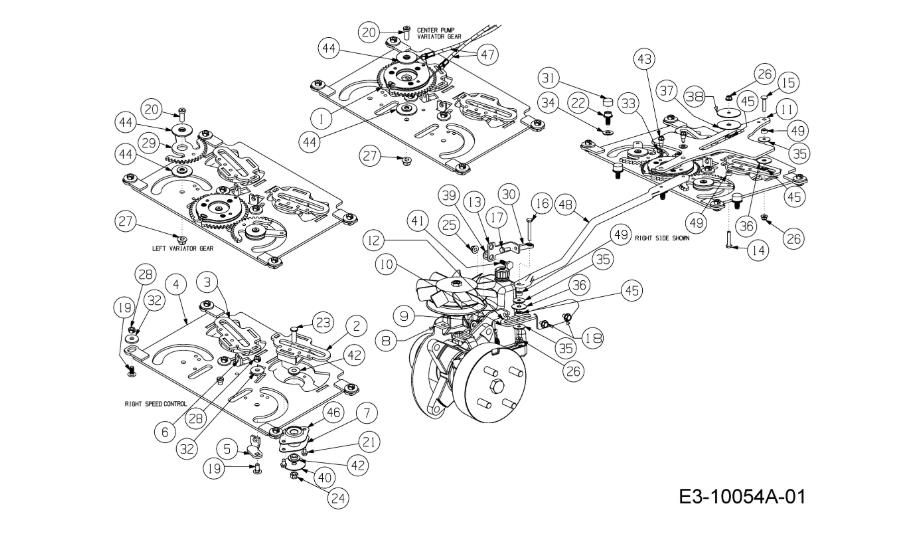

CONTROL HYDROSTATIC TRANSMISSION, CONTROL CABLES, STEERING GEAR SEGMENT

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	680-00144	GEAR PUMP	£79.44	Add
002	680-00367	PUMP CONTROL CAM ASM RH	£55.48	Add
003	680-00368	PUMP CONTROL CAM ASM LH	£55.48	Add
011	703-10131	ACTUATOR ARM	£42.64	Add
013	703-10139A	BRACKET	£25.16	Add
014	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
016	710-0136	BOLT, HEX 1/4-20 x 1-3/4" 1509-069	£3.58	Add
017	710-0412	HHCS:1/4-28:.75:GR5:STD	£3.51	Add
018	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
019	710-0451	BOLT:CRG:5/16-18:.750 GR1	£3.70	Add
020	710-05340	SCREW	£11.47	Add
021	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
022	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
023	710-0723	SCRE.HHCS:3/8-16:1.25:GR5:SPEC	£8.58	Add
024	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK	£3.51	Add
025	712-04063	FLANGED NUT	£4.20	Add
026	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
027	712-04065	NUT	£4.02	Add
028	712-3009	NUT:HEXLK:5/16-18:GRB:CTRLK	£2.98	Add
029	717-05317	STEERING GEAR	£37.80	Add
030	723-04077	ROD END R/H	£72.08	Add
031	731-1490	KAPPE	£8.99	Add
032	736-0231	WASHER FLAT	£3.58	Add
033	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
034	736-0300	WASHER	£2.81	Add
035	736-04511	WASHER	£8.19	Add
036	736-04596	WASHER	£12.29	Add
037	736-04630	WASHER	£12.55	Add
038	736-04631	WASHER	£7.91	Add
039	736-3024	WASH:FL:.469 X .750 X .06	£2.90	Add
040	736-3040	FLAT WASHER	£13.16	Add
041	738-0296	SCR SHLDR	£6.59	Add
042	738-04154	SHOULDER SPACER	£6.56	Add
043	738-04425	SCREW SHOULDER	£2.38	Add
044	738-04453	SHOULDER SPACER	£12.85	Add
045	741-04425	BALL BEARING	£25.86	Add
046	741-04566	BALL BEARING	£29.12	Add
048	747-05649	CONTROL ROD	£71.38	Add
049	750-05297	SPACER	£15.15	Add
