CONTROL CABLE BRAKE, HAND BRAKE

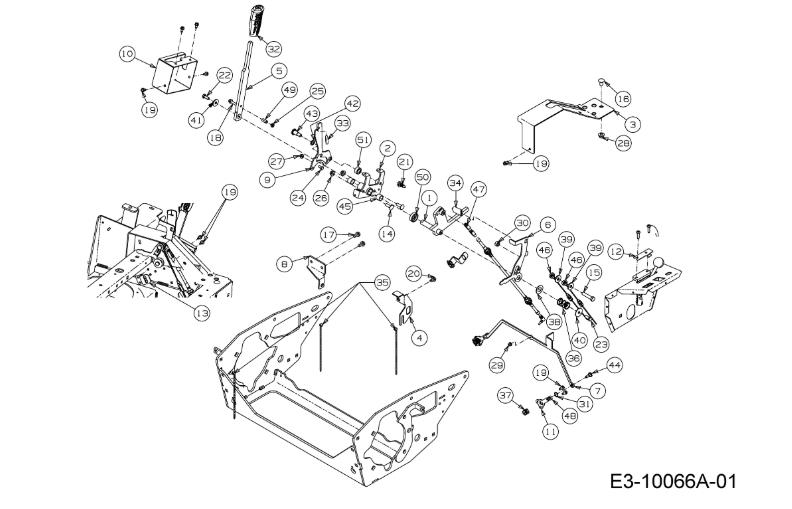

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	680-00435	BRAKE SHAFT PIVOT	£102.84	Add
002	680-00461	PLATE PIVOT	£187.97	Add
006	703-10487A	RELEASE LEVER	£47.24	Add
007	703-10545B	SELECTOR ROD	£46.48	Add
011	703-10863	BYPASS LEVER	£30.44	Add
012	703-10893	THROTTLE CONTROL PLATE	£30.00	Add
014	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add
015	710-0347	HEX SCR	£3.72	Add
016	710-0389	BOLT:CRG:3/8-16:.750:GR5	£11.63	Add
017	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
018	710-05237	HHFLG:1/4-20:1.50:GR-5	£4.62	Add
020	710-0607	SELF TAP SCREW	£4.71	Add
021	710-06335	SCREW	£1.73	Add
022	710-1880	HHCS:5/16-18:.75:GR5:PATCH	£4.39	Add
023	710-3008	HEX BOLT	£3.03	Add
024	710-3013	SCREW HEX CAP	£3.39	Add
025	712-0291	LOCK-NUT	£2.77	Add
026	712-04063	FLANGED NUT	£4.20	Add
027	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
028	712-04065	NUT	£4.02	Add
029	712-04113	NUT HEX FLANGE 10-32	£5.40	Add
030	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
031	716-0114	RING:RET:.56 DIA SHAFT	£3.58	Add
032	720-04139B	GRIP:CUB	£25.52	Add
033	720-04173	GRIP:HNDL:REV	£7.92	Add
034	720-0433	GRIP:SEAT:ADJUSTMENT:YELLOW	£10.97	Add
036	732-04481	SPR: COMP: 844 X.970 X 1.500	£12.50	Add
037	732-04877	SPR:CMPRS:.685 OD x .63 LG	£5.31	Add
038	736-0187	FLAT WASHER	£3.19	Add
039	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
040	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add
041	736-04117	FLAT WASHER	£13.07	Add
042	736-04320	WASHER	£6.04	Add
043	738-0430	SHLD-SCR: .50 x .685:3/8-16	£8.01	Add
044	738-0706D	SHOULDER SCREW	£9.48	Add
045	741-04555	SLEEVE BEARING	£12.48	Add
046	746-05103A	BRAKE CABLE	£63.08	Add
047	746-05283A	CONTROL CABLE	£91.08	Add
048	750-05297	SPACER	£15.15	Add
049	750-05369	SPACER	£13.16	Add
050	750-06515	SPACER	£23.77	Add
051	750-0664	SPACER	£3.90	Add
