PEDALS

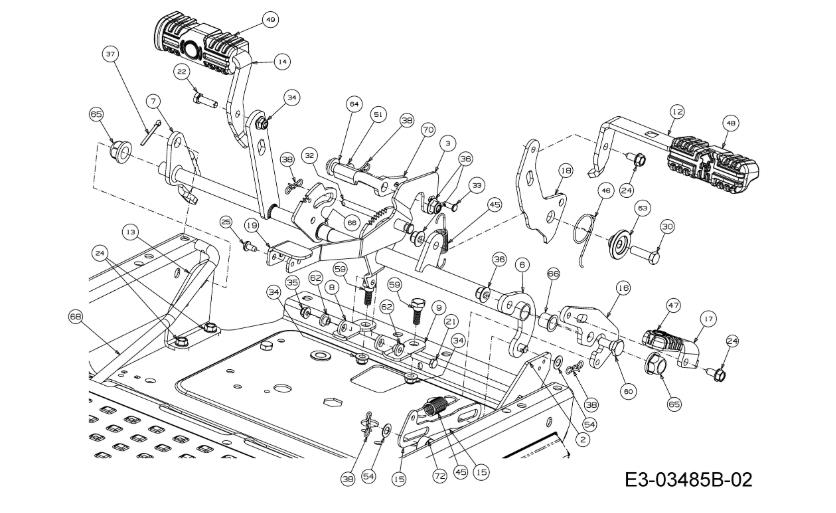

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	02005058	LEVER ADJUST/LOCK STEERING	£73.24	Add
007	647-05042	BRAKE SHAFT ASSEMBLY	£51.11	Add
015	703-08678B	LINK NEUTRAL RETURN	£33.17	Add
016	703-08690	PLATE REVERSE PEDAL PIVOT	£25.91	Add
021	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
022	710-0376	SCREW HEX CAP 5/16	£9.02	Add
023	710-0433	HEX BOLT	£6.66	Add
024	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
026	710-05375	CARRIAGE BOLT	£7.48	Add
027	710-0538	HEX L BOLT	£4.15	Add
028	710-0643	BOLT	£3.85	Add
029	710-1245B	HHCS:5/16-24:.875:GR8:LOCK	£3.42	Add
030	710-3005	BOLT	£3.24	Add
031	710-3008	HEX BOLT	£3.03	Add
032	711-05068A	PIN:CLV:5/16 x 4.135	£9.82	Add
034	712-04063	FLANGED NUT	£4.20	Add
035	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
036	712-04065	NUT	£4.02	Add
037	714-0162	COTTER PIN	£2.79	Add
038	714-04040	PIN-COTTER	£4.38	Add
039	716-0231	E RING (RED)	£2.97	Add
040	717-04960	GEAR STEERING 14 TEETH	£22.82	Add
041	717-05247	UPPER SHAFT	£140.78	Add
044	731-09831	PLATE COLUMN	£14.60	Add
045	732-04748	SPRING EXTENSION	£21.34	Add
046	732-04949	SPRING TORSION LH	£14.62	Add
047	735-04117	PAD:PEDAL:REVERSE	£23.45	Add
048	735-04118A	PAD:PEDAL:FORWARD	£19.97	Add
049	735-04136	PAD:PEDAL:BRAKE	£20.70	Add
050	736-0179	WASHER-FL	£14.34	Add
051	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add
052	736-0242	BELL WASHER	£3.72	Add
053	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
054	736-0314	WASHER-THRUST	£2.97	Add
055	736-0337	WASHER:FLAT:.634x1.00x.04:HT	£3.19	Add
056	736-04602	WASHER	£13.16	Add
057	736-0760	WASHER	£4.01	Add
058	736-3092	WASH:FLAT:.265 x 1.0 x.030:HD	£3.49	Add
059	738-0296	SCR SHLDR	£6.59	Add
060	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
061	738-04130A	SHOULDER SCREW	£3.37	Add
062	738-04483	SPCR:SHLDR:.375X.625X.20	£5.00	Add
064	738-0929	HEX CAP SCREW,1/2-13X1.75	£9.71	Add
065	741-0225	HEX FLANGE BEARING	£4.92	Add
066	741-0495	FLANGED BRG.	£8.22	Add
067	741-05052	FLANGE BEARING	£14.30	Add
068	747-05654A	ROD BRAKE	£57.87	Add
069	748-0209	BEARING FLANGE	£13.84	Add
070	748-04203	LATCH:CRUS	£17.46	Add
071	748-05045	STEERING COUPLING	£30.43	Add
072	750-05635	SPACER	£20.78	Add
