MOWING DECK K (54"/137CM)

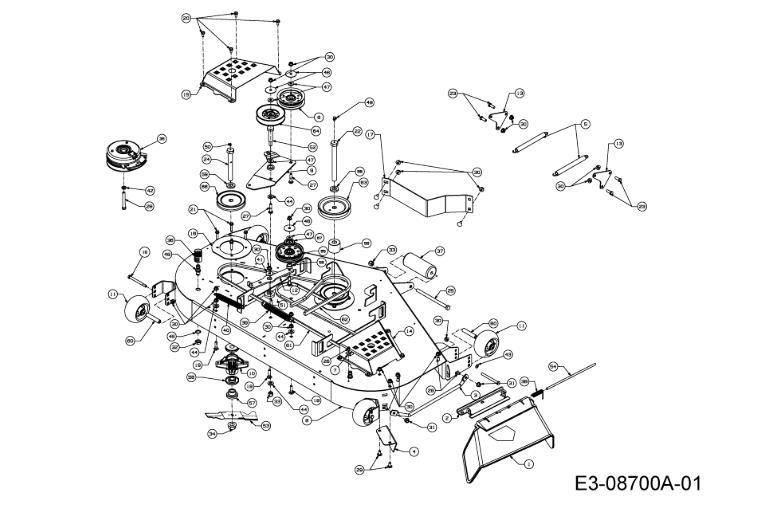

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	01006693	CHUTE-DEFLECTOR BLK PLAS.	£56.67	Add
002	01006748	CHUTE DEFLECTOR BRACKET	£81.39	Add
003	01008644	FINGER GUARD	£32.35	Add
006	02004447	IDLER PULLEY	£36.11	Add
011	634-3159	WHEEL ASSY´S 5"	£33.61	Add
016	703-07787-CY	MOUNTING CUB YELLOW	£67.93	Add
018	710-0411	SCREW HHCS:3/8-16:4.00:GR5:STD	£9.01	Add
019	710-0431	SREW: M5X20-8.8:DIN 603 092.34.137	£14.89	Add
020	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
023	710-0514	HEX BOLT	£3.81	Add
024	710-05173A	BLADE BOLT	£39.07	Add
026	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
028	710-3157A	HEX.SCREW HHCS:7/16-20:3.25GR5	£9.80	Add
029	710-3178	BOLT SHORT NECK CARR	£11.46	Add
030	712-04065	NUT	£4.02	Add
031	712-05007	NUT-HEX FLANGED LOCK 3/8-16	£6.79	Add
032	712-0641	NUT	£6.47	Add
033	712-3058	NUT-HEX CENTER LOCK 1/2-20	£15.75	Add
034	712-3078	NUT HEX FLANGE 3/4-16	£11.32	Add
036	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
037	731-3005	ROLLER	£42.43	Add
038	732-04797	SPR:TORSN:180:.639x2.16x.12:YZ	£11.43	Add
039	732-04960	SPRING	£15.80	Add
040	732-0594A	EXTENSION SPRING	£25.17	Add
041	736-0133	WASH:FLAT:.411 X 1.25 X .100	£3.87	Add
042	736-0171	WASHER	£2.93	Add
043	736-0314	WASHER-THRUST	£2.97	Add
044	736-0326	FLAT WASHER :5101.00125	£3.69	Add
045	736-0760	WASHER	£4.01	Add
046	736-3040	FLAT WASHER	£13.16	Add
047	736-3052	WASH:FLAT:.406 X 1.00 X .105	£3.77	Add
048	737-04003D	NOZ:DECK:WATER	£19.14	Add
050	737-04345	GREASE NIPPLE	£9.82	Add
053	742-04416	BLADE	£40.43	Add
054	747-3384	ROD:DFL:CHUT	£14.85	Add
055	748-05029A	SPACER	£4.20	Add
056	748-3065A	SPCR:SPDL:DECK	£14.96	Add
057	750-05420	SPACER BLADE .76X2.0X1.1	£20.99	Add
059	750-05553	SPACER .812 ID X .218 LG	£12.50	Add
060	750-3193	BUSH	£17.14	Add
063	756-04459A	V-BELT PULLEA	£43.57	Add
064	756-04522	TENSION IDER	£39.31	Add
065	756-05042	PUL:IDLR:4.25"DIA:HD	£32.84	Add
066	756-1209	PULLEY-DECK DRIVE	£48.43	Add
067	783-08389	CAP PULLEY	£9.42	Add
