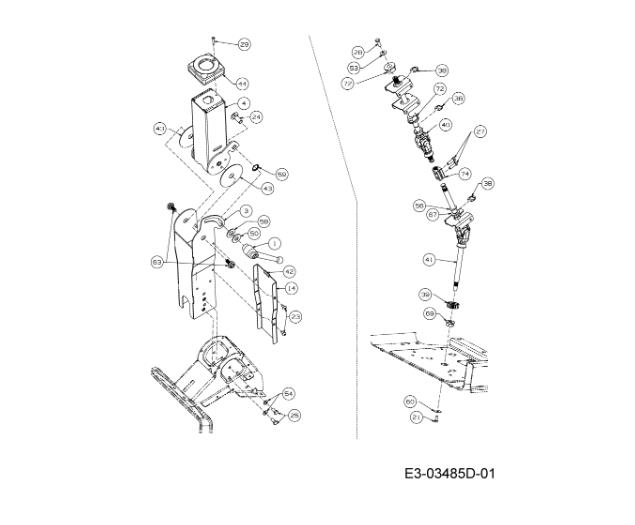

STEERING COLUMN

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	02005058	LEVER ADJUST/LOCK STEERING	£73.24	Add
005	647-04270C	SHAFT ASM FWD PEDAL	£91.96	Add
006	647-05042A	SHAFT ASM BRAKE	£80.54	Add
015	703-09837A	LINK NEUTRAL RETURN	£32.21	Add
016	703-10338A	BRACKET PIVOT FORWARD PEDAL	£56.62	Add
017	703-10350	PLATE REVERSE PEDAL PIVOT	£30.00	Add
019	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
020	710-0376	SCREW HEX CAP 5/16	£9.02	Add
021	710-0433	HEX BOLT	£6.66	Add
022	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
023	710-05070A	SCREW	£2.32	Add
024	710-05375	CARRIAGE BOLT	£7.48	Add
025	710-0538	HEX L BOLT	£4.15	Add
026	710-0606	SCREW (RED)	£3.33	Add
027	710-0643	BOLT	£3.85	Add
028	710-1245B	HHCS:5/16-24:.875:GR8:LOCK	£3.42	Add
029	710-1331	SCR:AB:#10-16:1.250:CSKPHI	£8.09	Add
030	710-3005	BOLT	£3.24	Add
031	711-05068A	PIN:CLV:5/16 x 4.135	£9.82	Add
032	711-05670	ROD-FRONT LINK MTG	£5.92	Add
033	712-04063	FLANGED NUT	£4.20	Add
034	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
035	712-04065	NUT	£4.02	Add
036	714-0162	COTTER PIN	£2.79	Add
037	714-04040	PIN-COTTER	£4.38	Add
038	716-0231	E RING (RED)	£2.97	Add
039	717-04960	GEAR STEERING 14 TEETH	£22.82	Add
040	717-05247	UPPER SHAFT	£140.78	Add
043	731-09831	PLATE COLUMN	£14.60	Add
044	731-11491A	COVER COLUMN	£33.28	Add
045	732-04748	SPRING EXTENSION	£21.34	Add
046	732-04949	SPRING TORSION LH	£14.62	Add
047	735-04117	PAD:PEDAL:REVERSE	£23.45	Add
048	735-04118A	PAD:PEDAL:FORWARD	£19.97	Add
049	735-04136	PAD:PEDAL:BRAKE	£20.70	Add
