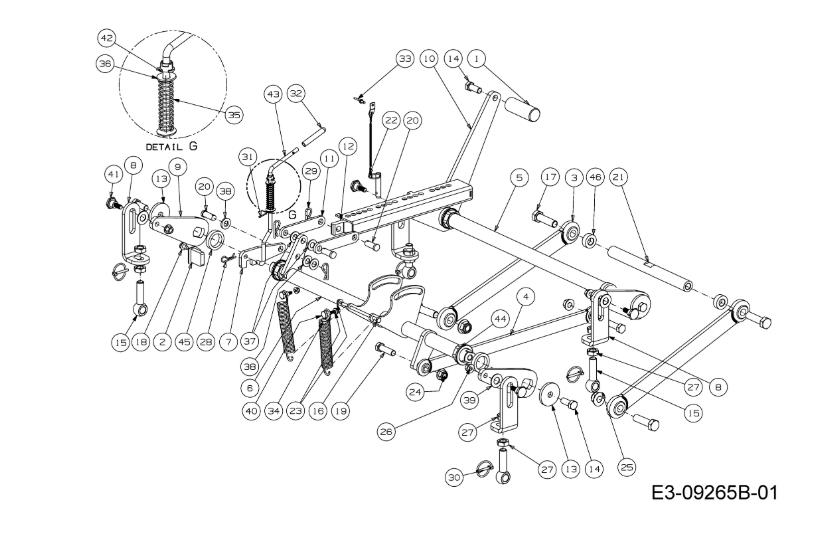

DECK LIFT

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	02002596	FOOT PEDAL	£46.77	Add
003	680-00322	ROD ASM DECK FRONT	£144.09	Add
005	680-00349	SHAFT	£204.29	Add
006	680-00350	SHAFT	£237.79	Add
007	703-08032	BRACKET LOCK LATCH	£25.85	Add
011	703-08384	LINK	£20.12	Add
012	703-08388A	ARM SLIDER LIFT INDEX	£178.57	Add
013	703-09695	WASHER	£8.87	Add
014	710-04186	SCREW	£25.02	Add
015	710-05355	SCREW	£32.24	Add
016	710-05418	SCREW HEX HEAD 1/4-20*5.0	£16.85	Add
017	710-06047	SCREW HEX HEAD 5/8-11*2.25	£16.41	Add
018	710-0607	SELF TAP SCREW	£4.71	Add
020	711-04061	ROD FRONT LINK MTG	£8.53	Add
021	711-05072	FRONT LIFT LINK MOUNT SHAFT	£99.02	Add
022	711-05629	POSITIONING BOLT	£31.73	Add
023	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
024	712-04150	NUT FLGLK 1/2-13 NYLON	£6.74	Add
025	712-04151	LOCK NUT 5/18-11	£14.62	Add
026	712-05007	NUT-HEX FLANGED LOCK 3/8-16	£6.79	Add
027	712-3015	NUT	£10.65	Add
028	714-0145	R CLIP	£2.78	Add
029	714-0149B	COTTER PIN	£3.58	Add
031	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
032	720-04183	HANDLE	£15.55	Add
033	728-04016	RIVET TUBULAR	£4.65	Add
034	732-04929	SPRING BRAKE TENSION	£41.02	Add
035	732-0992	SPRING	£15.17	Add
036	736-0242	BELL WASHER	£3.72	Add
037	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
038	736-0326	FLAT WASHER :5101.00125	£3.69	Add
039	736-04602	WASHER	£13.16	Add
040	738-04222	SHOLUDER SCREW .437*.50 1/4-20	£10.32	Add
041	738-1127B	SHOULDER SCREW	£12.14	Add
042	741-0475	PLASTIC BUSHING .38 INCH ID	£4.74	Add
043	747-05465A	LOCKING LEVER	£34.50	Add
045	750-05468	SPACER PULLEY	£16.41	Add
046	750-0960A	SPACER 6351.25.445	£11.34	Add
