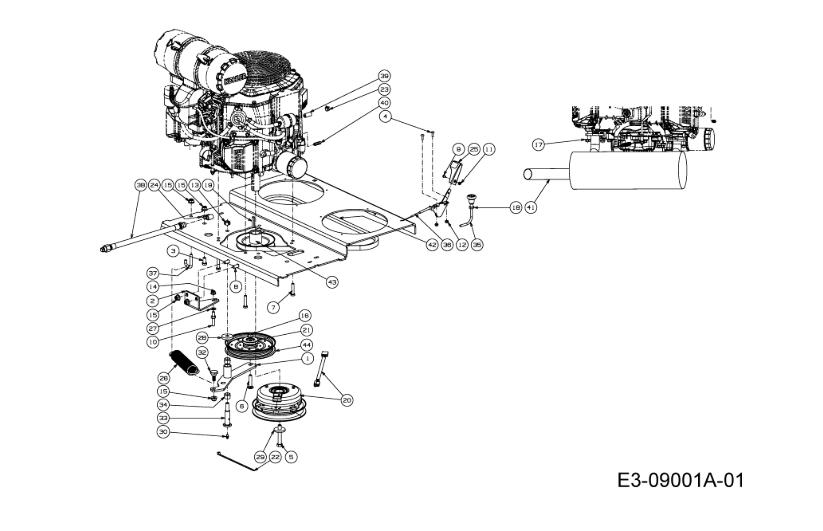

ELECTRIC CLUTCH, ENGINE ACCESSORIES

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
003	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
004	710-0425	SCR:MACH:#10-24:0.625:TRUSPHI	£8.11	Add
005	710-04377	SCREW 1/16-20X2.75	£11.05	Add
006	710-05376	CARRIAGE BOLT	£13.16	Add
007	710-0805A	SCRE.HHCS 5/16-18:1.50	£13.70	Add
008	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
009	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
010	711-1637	STUD-ACTUATOR	£19.77	Add
011	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
012	712-0161	NYLOK NUT #10-24	£6.05	Add
013	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
014	712-04063	FLANGED NUT	£4.20	Add
015	712-04065	NUT	£4.02	Add
016	712-0431	NUT	£3.20	Add
017	712-04312	NUT	£8.36	Add
018	712-0711	NUT	£3.07	Add
019	714-0118	KEY:SQ:1/4 X 1.50	£5.50	Add
020	717-05184	PTO CLUTCH	£290.82	Add
021	721-04516	PULLEY CAP	£20.78	Add
023	726-04123A	CLAMP	£7.06	Add
024	726-04124	CLAMP	£18.72	Add
025	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
026	732-04915A	SPRING-BRAKE TENSION	£29.18	Add
027	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
028	736-3017	WASH:FLAT:.470X1500X.225	£3.10	Add
029	736-3082A	WASHER FLAT	£10.48	Add
030	737-0146	FITTING-GREASE	£4.11	Add
032	738-1126	SCREW-SHLDR	£9.25	Add
033	738-3102	SHOULDER SCREW 7/16 X 14	£27.52	Add
034	741-04555	SLEEVE BEARING	£12.48	Add
035	746-04812	CABLE CHOKE	£64.20	Add
036	746-04840	THROTTLE CABLE 42"	£83.59	Add
037	747-05707	ROD SHIFT LEVER	£8.36	Add
038	751-10291A	HOSE-OIL DRAIN 13,75 LG	£60.02	Add
039	751-10349	HOSE:FUEL:LOW PERMEATION	£72.63	Add
041	751-12519A	MUFFLER KOHLER COMMAND	£177.35	Add
044	756-04487	TENSION IDLER	£55.60	Add
