MTD018065

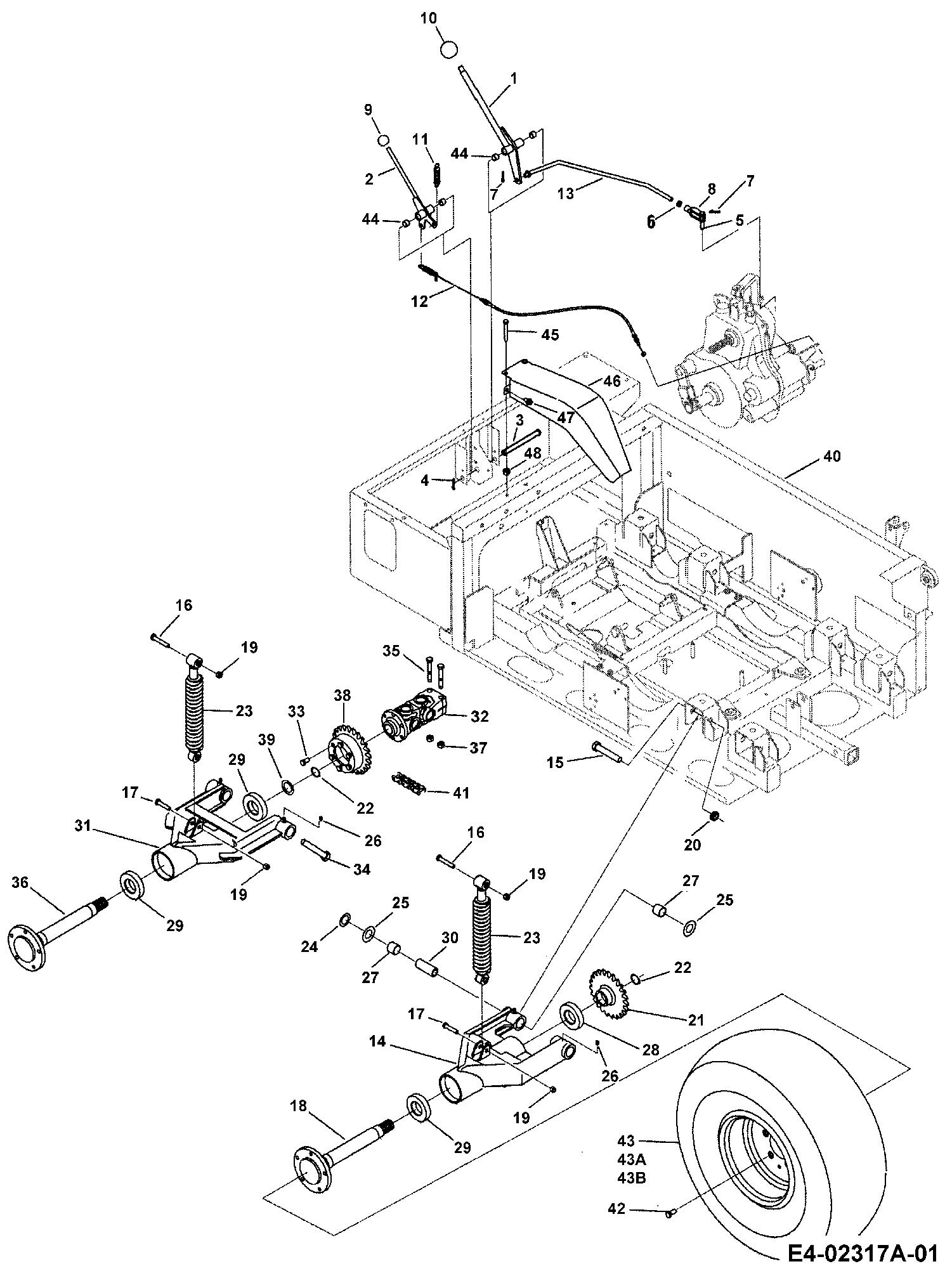

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-0069B	LEVER ASSEMBLY, TRANSMISSION	N/A	POA
002	647-0071A	SHIFTER ASM,DIFFERENTIAL LOCK	N/A	POA
003	711-04068	CLEVIS PIN .50X5.375	N/A	POA
004	714-0115	COTTER PIN	£3.42	Add
005	711-04017	CLEVIS PIN .375x2.0	N/A	POA
006	712-0711	NUT	£3.07	Add
007	714-0104	PIN INTERNAL COTTER	£2.78	Add
008	719-3013	719-3013	£25.48	Add
009	720-04002	KNOB, BALL	N/A	POA
010	720-0434	KNOB, BALL	N/A	POA
011	732-1187	SPRING	N/A	POA
012	746-04004	CABLE-DIFF LOCK	N/A	POA
013	747-04010A	DRIVE BRACKET	N/A	POA
014	607-0042A		N/A	POA
015	710-0298	NO LONGER AVAILABLE	N/A	POA
016	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
017	710-0347	HEX SCR	£3.72	Add
018	711-1764	AXLE SHAFT, REAR DRIVE	N/A	POA
019	712-04065	NUT	£4.02	Add
020	712-0413	NUT:JAMLK:5/8-18:GR5:NYLON	£13.79	Add
021	713-04007	SPROCKET-REAR AXLE	N/A	POA
022	716-0401	COLLAR	N/A	POA
023	732-04069	SHOCK ABSORBER	N/A	POA
024	736-0424	WASH:FLAT:1.0X1.56	£12.14	Add
025	736-3046A	push-on fastener	£8.32	Add
026	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
027	741-04030	BEARING FLANGE 1.0X1.125X1.0	£24.91	Add
028	741-0759	INNER AXLE BEARING	£74.48	Add
029	741-0760	OUTER AXLE BEARING	£72.63	Add
030	750-04004	SPACER-AXLE SUPPORT	N/A	POA
031	607-0043A		N/A	POA
032	623-0026A	COUPLING ASSY.	£317.73	Add
033	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
034	710-0298	NO LONGER AVAILABLE	N/A	POA
035	710-3229	HHCS:7/16-14:2.75:GR5:STD	£7.29	Add
036	711-1763	DRIVE SHAFT	£256.61	Add
037	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
038	713-04005	SPROCKET-CENTER AXLE	£109.99	Add
039	750-1389	SPACER 1.78X1.88	N/A	POA
040	607-04084	BASE ASSY.	N/A	POA
041	713-0605	CHAIN:#60-97 PITCH	N/A	POA
042	710-04009	HEX. SCREW 7/16-20X1.5,GR5	N/A	POA
043	634-0353	RIM ASM-KNOBY TIRE	£299.46	Add
044	741-04002	BUSHING .504X.628X.50	N/A	POA
045	710-0378	HHCS:5/16-18:2.50:GR5:STD	£3.80	Add
046	707-04006	BELT GUARD	N/A	POA
047	710-0759	HHFLG:5/16-18:.625:GR5:STD	£3.26	Add
048	712-3009	NUT:HEXLK:5/16-18:GRB:CTRLK	£2.98	Add
43A	634-04027	RIM ASM-TIRE & BEG RH 25X11-10	£355.31	Add
43B	634-04028	RIM ASM-TIRE & BEG	£352.80	Add
