Parts list

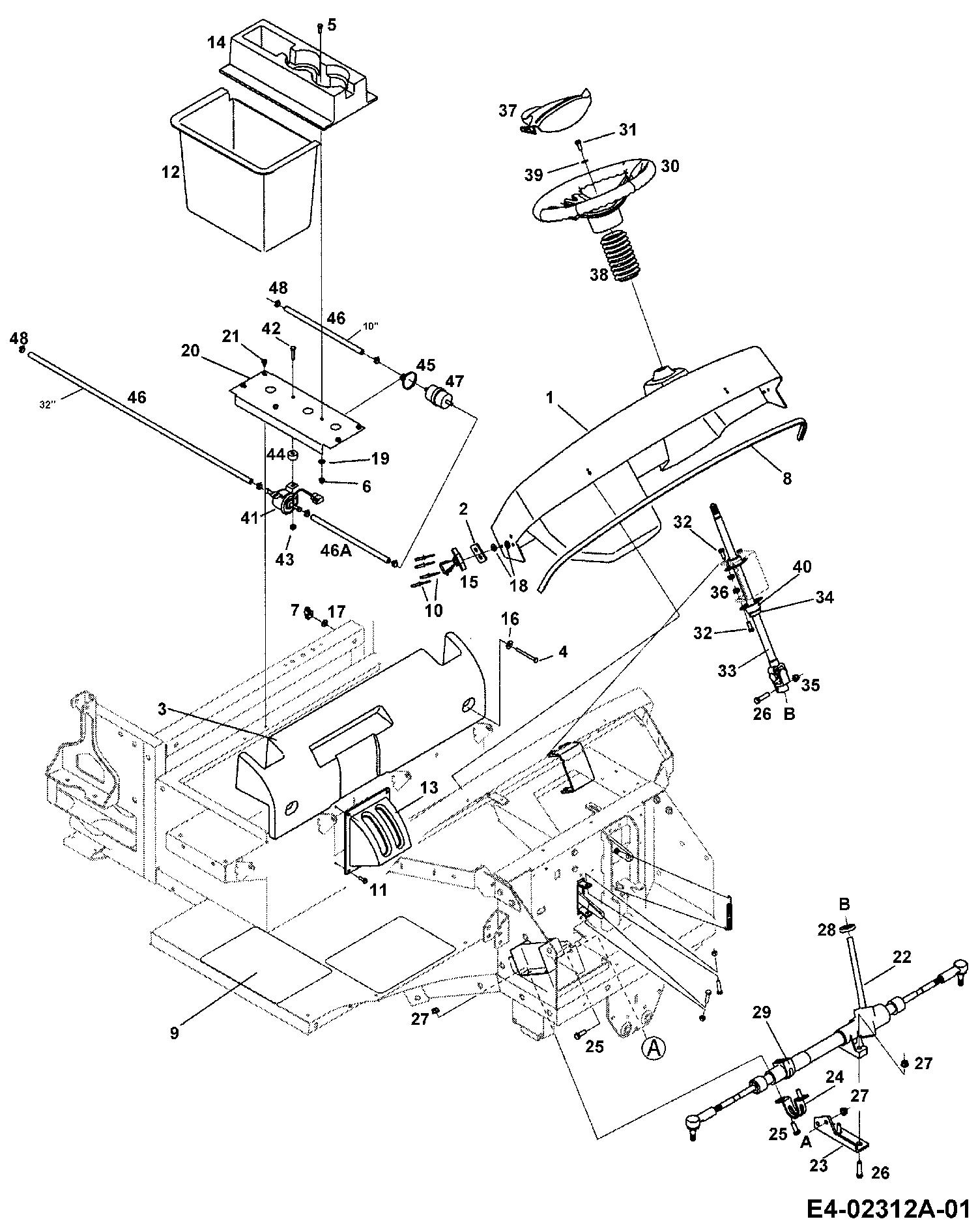

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
631-04103
|
|
N/A
|
POA
|
|
002
|
707-04252
|
PLATE-LATCH MTG BL
|
N/A
|
POA
|
|
003
|
731-2952
|
PANEL, AIRBOX COVER
|
N/A
|
POA
|
|
004
|
710-0564
|
HEX CAP SCREW
|
£2.97
|
Add
|
|
005
|
710-3015
|
SCREW HEX CAP
|
£3.33
|
Add
|
|
006
|
712-0324
|
HEX. INS L NUT
|
£3.69
|
Add
|
|
007
|
712-0397A
|
WING NUT
|
£5.52
|
Add
|
|
008
|
721-04070
|
TRIM, BULB SEAL, 1/4
|
N/A
|
POA
|
|
009
|
723-3069
|
FOOT PAD, ABRASIVE
|
N/A
|
POA
|
|
010
|
728-0180
|
RIV:POP: .187 DIA:#68 728-0173
|
£7.06
|
Add
|
|
011
|
728-04004
|
RIVET, POP
|
£7.23
|
Add
|
|
012
|
731-04033A
|
CONTAINER, BULKHEAD
|
N/A
|
POA
|
|
013
|
731-2953A
|
PANEL, SHIFT COVER
|
N/A
|
POA
|
|
014
|
731-2648
|
CONSOLE CUP HOLDER
|
N/A
|
POA
|
|
015
|
735-04038
|
control lever
|
£51.03
|
Add
|
|
016
|
736-0195
|
WASHER 1540-043
|
£2.93
|
Add
|
|
017
|
736-0173
|
WASH:FL:.28ID:.74OD:.063
|
£3.31
|
Add
|
|
018
|
736-0400
|
FLAT WASHER .194x.620Dx.63TH
|
£3.77
|
Add
|
|
019
|
736-0463
|
WASH:FLAT: .250 x .630 x .052
|
£3.31
|
Add
|
|
020
|
707-04278
|
|
N/A
|
POA
|
|
021
|
710-0599
|
HEX TT SCREW 1/4-20
|
£4.95
|
Add
|
|
022
|
617-0075A
|
GEAR ASM-STEERING
|
N/A
|
POA
|
|
023
|
707-04074
|
BRKT-STEERING SECT
|
£50.43
|
Add
|
|
024
|
707-0417
|
CLAMP-STEERING GEAR
|
£63.06
|
Add
|
|
025
|
710-0514
|
HEX BOLT
|
£3.81
|
Add
|
|
026
|
710-0520
|
SCREW HEX CAP 3/8 (RED)
|
£3.51
|
Add
|
|
027
|
712-0431
|
NUT
|
£3.20
|
Add
|
|
028
|
735-0801
|
GROMMET, STEERING SHAFT
|
N/A
|
POA
|
|
029
|
741-0763
|
BUSHING-STRG GEAR
|
£31.92
|
Add
|
|
030
|
631-04008
|
WHL ASM:STRG:3 SPOKE SOFTGRIP
|
£48.72
|
Add
|
|
031
|
710-1880
|
HHCS:5/16-18:.75:GR5:PATCH
|
£4.39
|
Add
|
|
032
|
710-3008
|
HEX BOLT
|
£3.03
|
Add
|
|
033
|
711-04231
|
SHAFT, STEERING
|
N/A
|
POA
|
|
034
|
711-1774
|
COLLAR-STEERING SHAFT
|
N/A
|
POA
|
|
035
|
712-04065
|
NUT
|
£4.02
|
Add
|
|
036
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
037
|
731-04532
|
COVER STEERIN WHEEL W/LOGO
|
£23.29
|
Add
|
|
038
|
731-0954
|
BELLOW STEERING COLUMN
|
£20.36
|
Add
|
|
039
|
736-0275
|
WASH:FLAT:.344 x .688 x.065
|
£3.07
|
Add
|
|
040
|
741-04000
|
BEARING, FLANGE, SELF-ALIGNING
|
N/A
|
POA
|
|
041
|
651-04003
|
PUMP-FUEL
|
£266.53
|
Add
|
|
042
|
710-0106
|
HHCS:1/4-20:1.25:GR5:SPEC
|
£3.95
|
Add
|
|
043
|
712-3027
|
LOCK NUT
|
£2.79
|
Add
|
|
044
|
722-0160
|
ELASTEMER BUSHING .930 OD X .5
|
£3.20
|
Add
|
|
045
|
726-0470
|
TIE:CABLE:.19x8.39":TREE MNT
|
£13.16
|
Add
|
|
046
|
751-10349-54
|
FUEL LINE HOSE BLACK
|
£25.38
|
Add
|
|
047
|
793-00003
|
FILTER FUEL
|
£30.17
|
Add
|
|
048
|
726-0205
|
HOSE CLAMP 1/2 INCH DIA.
|
£3.44
|
Add
|
