MTD016022

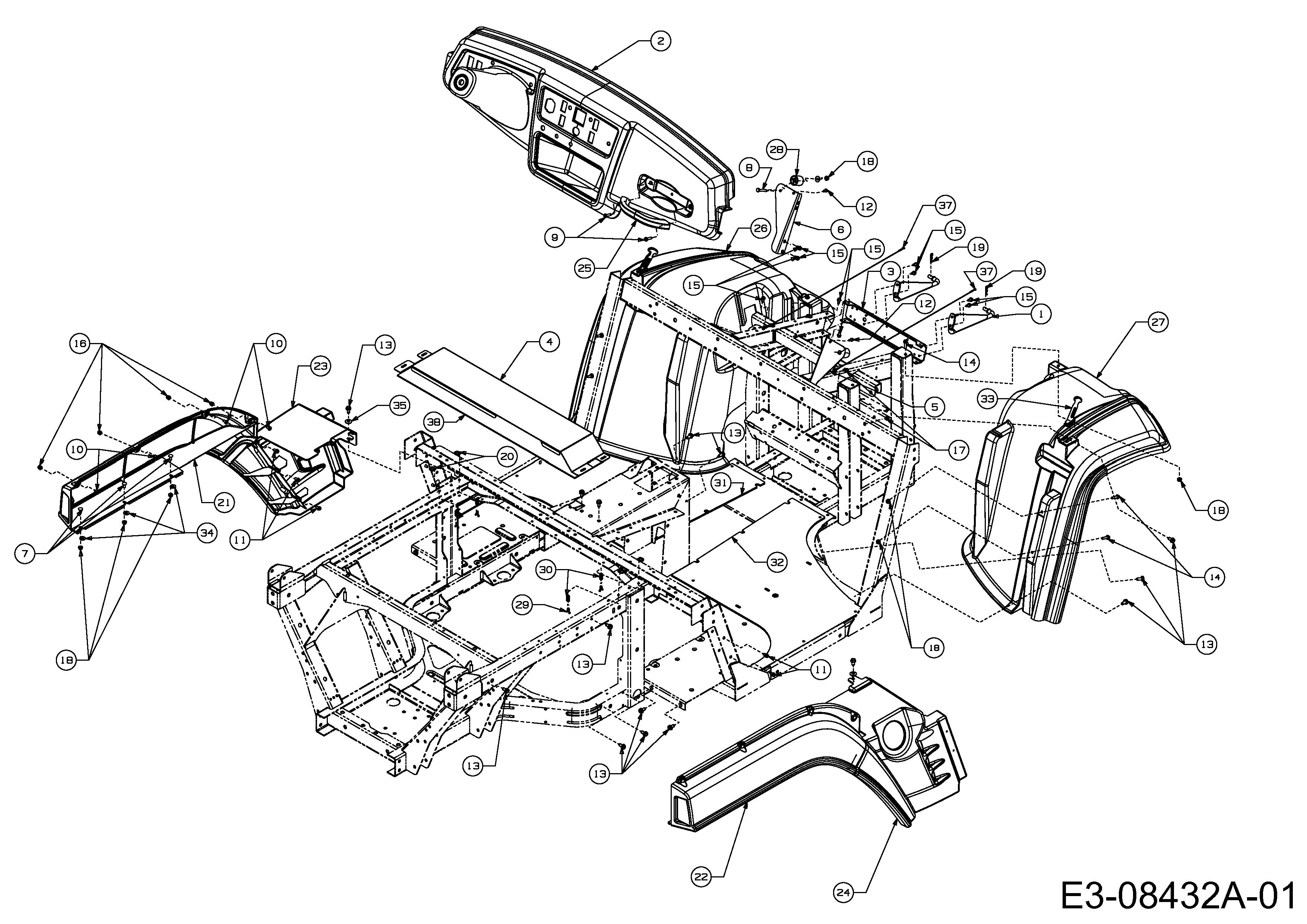

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04224	ROD ASM:HOOD MT	£73.46	Add
002	631-04235A		N/A	POA
003	707-04484		N/A	POA
004	707-04748A	CVR:UV	N/A	POA
005	707-04779A		N/A	POA
006	707-04782A		N/A	POA
007	710-0134	BOLT	£3.03	Add
008	710-0136	Bolt, Hex 1/4-20 x 1-3/4" 1509-069	£3.58	Add
009	710-0166A	SCR:MACH:1/4-20:1.000:PANPHI	£5.91	Add
010	710-0286	SCREW	£3.31	Add
011	710-04187	SCH:HL:1/4-15:0.50:HXINDWSH	£4.22	Add
012	710-04261	SCR:HL:#12-16:.50:HXINDWISH	£5.50	Add
013	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
014	710-05105	HEX HEAD CAP SCREW	£8.09	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	712-0264A	NUT ACORN	£11.34	Add
017	712-0324	HEX. INS L NUT	£3.69	Add
018	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
019	714-0101	PIN:COT:INT:.08 X 1.42	£3.58	Add
020	726-3056	LATCH 1/4 TURN	£13.39	Add
021	731-05280B	FENDER LH RR	N/A	POA
022	731-05281B	FENDER RH RR	N/A	POA
023	731-05282B	FENDER: LOWER LH RR	£131.32	Add
024	731-05283B	FENDER:LOWER RH RR	£124.05	Add
025	731-06155	HANDLE GRIP	£41.02	Add
026	731-06710A	FENDER UV LH	£277.11	Add
027	731-06711A	FENDER UV RH	£229.30	Add
028	731-3232	ROLLER,HOOD LATCH	£19.48	Add
029	732-0936	CLIP-SPRING	£12.34	Add
030	732-0937	COMPRESSION SPRING	£11.98	Add
031	735-04068A	FLOOR MAT, LH	£139.16	Add
032	735-04069A	FLOOR MAT, RH	£139.16	Add
033	735-04145	STRAP HOOD	£15.60	Add
034	736-0173	WASH:FL:.28ID:.74OD:.063	£3.31	Add
035	736-0242	BELL WASHER	£3.72	Add
036	736-0342	FLAT WASHER	£2.97	Add
037	746-04328	CABLE, HOOD	£22.79	Add
038	751-10435	INSULATOR:COVER	£61.59	Add
