MTD016019

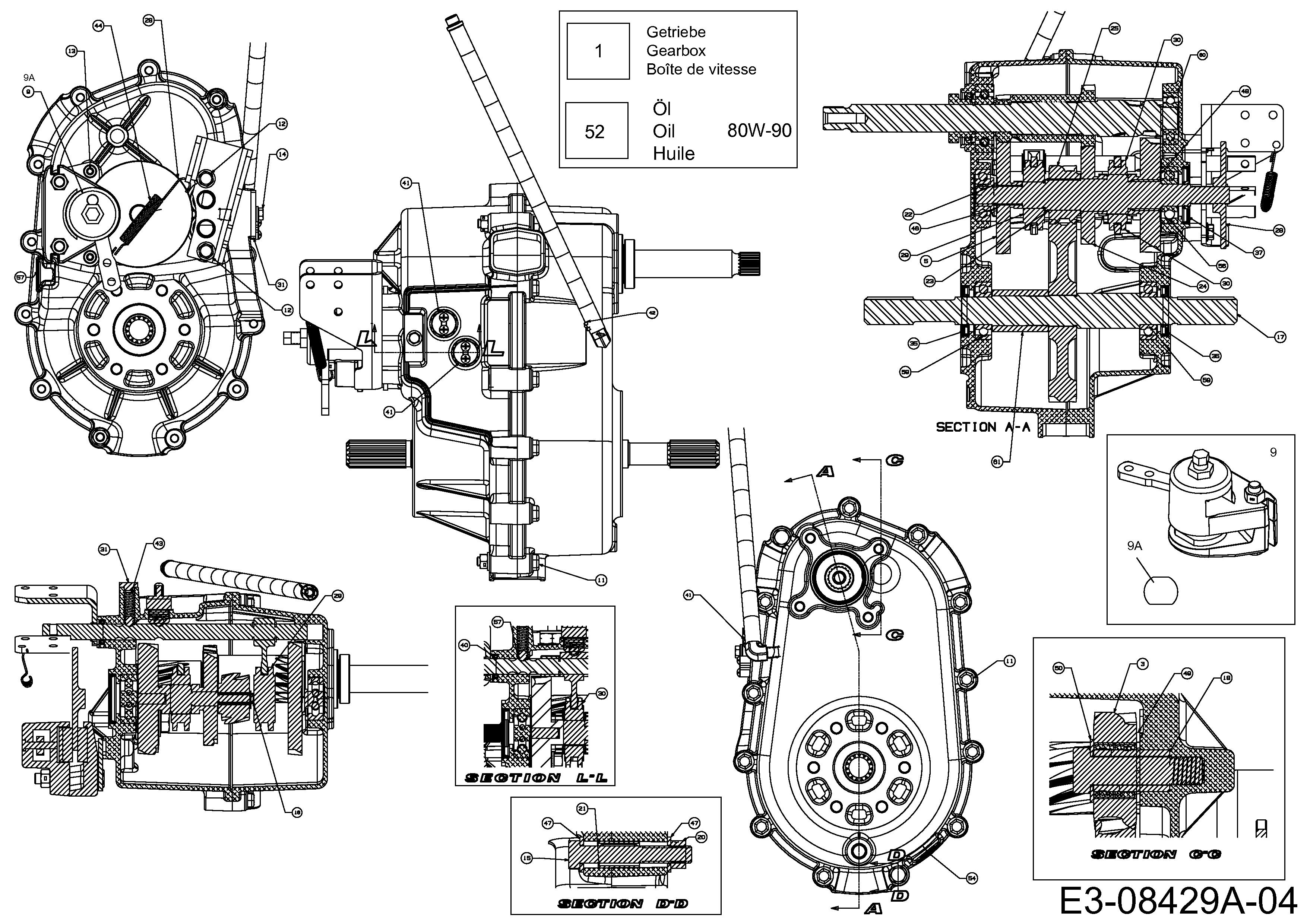

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-05119		N/A	POA
003	611-04072A	GEAR ASSY. REV: IDLER	£104.76	Add
005	617-04035	GEAR ASSY. - LOW SPEED	£326.28	Add
009	661-04019	UTV HANDBRAKE CALIPER AND PADS ASSY	£112.88	Add
011	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
012	710-1260A	SCREW	£4.00	Add
013	710-1314A	SOCKET HEAD SCREW	£3.24	Add
014	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
015	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
016	711-04445A	NO LONGER AVAILABLE	N/A	POA
017	711-04446	AXLE-FR	£119.27	Add
018	711-04447	ROD-CONTROL	£75.05	Add
020	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
021	715-3045	DOWEL:BUSH:.400X.484X.750	£14.75	Add
022	716-0131	Circlip	£17.52	Add
023	716-04059	RING:RET:1.125 DIA SHAFT	£47.61	Add
024	717-04236	GEAR:HIGH:4X4:33T	£127.76	Add
025	717-04332	SPROCKET-DBLE	£111.49	Add
028	717-1177A	BRAKE-DISC	£71.34	Add
029	718-04163	COLLAR:LO 4X4	£71.54	Add
030	718-04226A	COLLAR:HI-REV:4X4 UV	£110.32	Add
031	718-04240	PLATE:DETENT SPRING	£12.80	Add
035	721-04146	OIL SEAL 25x46x7	£38.00	Add
037	721-04161	OIL SEAL 20x52x7	£38.45	Add
040	721-0496	SEAL-OIL 7000 SER	£11.34	Add
041	725-04626	SWITCH SAFETY	£64.60	Add
042	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
043	732-0424	COMPRESSION SPRING	£19.29	Add
044	732-04248	SPR:EXTN:.38 x 3.9 LG	£11.52	Add
046	736-0256	WASHER:FL:.635 IDX.930 ODX.03	£3.20	Add
047	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
048	736-0615	WASH:THRST:1.007x1.542x.030	£28.92	Add
049	736-3047	WASHER	£10.19	Add
050	736-3084	WASHER FLAT	£3.77	Add
052	737-04039	TRANSMISSION FLUID	£44.56	Add
056	741-04044	BEARING-BALL	£23.93	Add
057	741-04209	BALL-DETENT .375 4X4	£16.26	Add
059	741-3037	BRG:BALL:25x52x15:6205:OPEN	£53.87	Add
060	2010-U1-6204	BRG:BALL:20x47x14:6204:OPEN 741-3057	£17.59	Add
061	750-04496	SPACER-PULLEY	£31.44	Add
09A	761-04060	PARK BRAKE PAD	£42.77	Add
