MTD016009

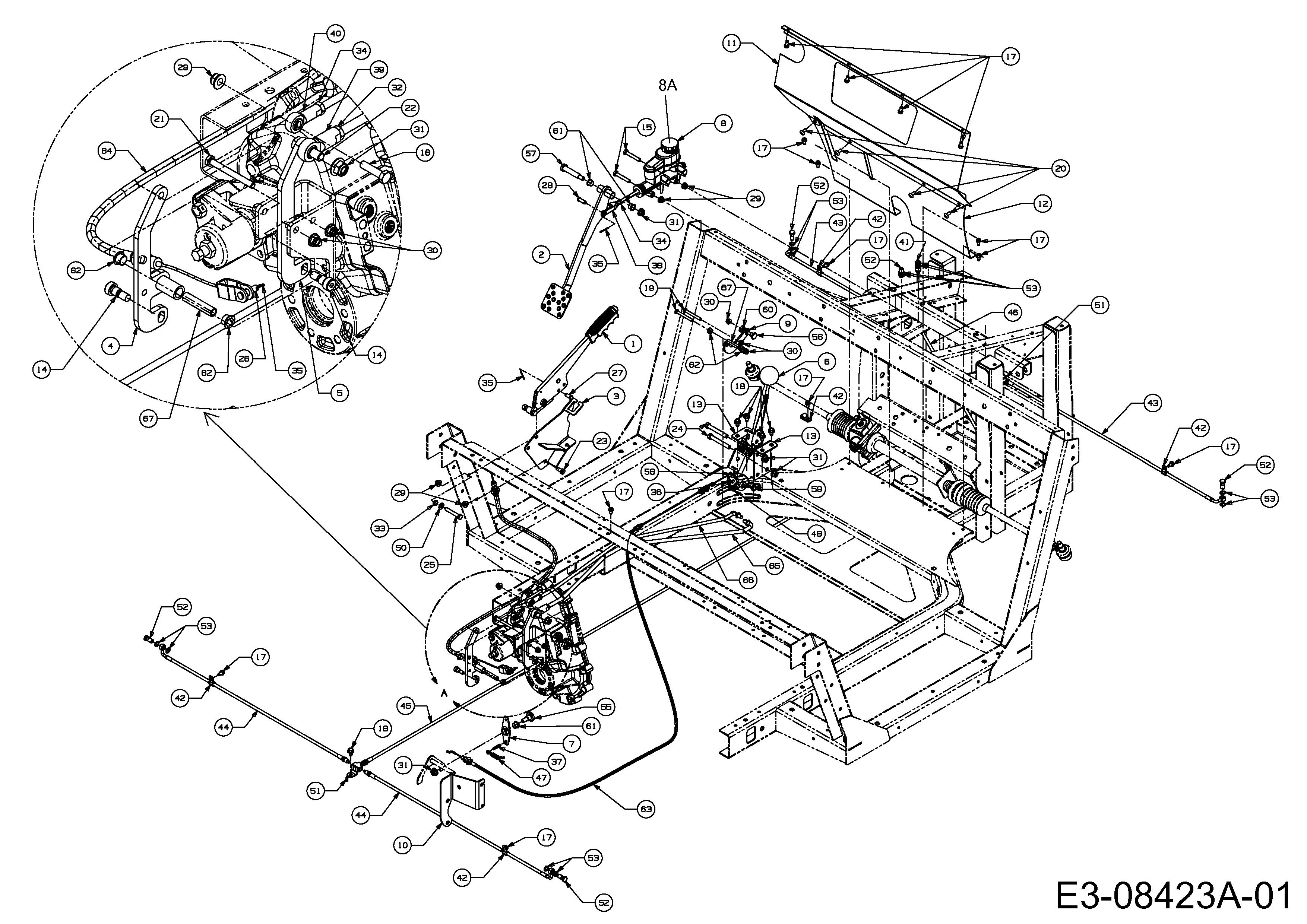

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016009

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04089 LEVER ASM:BRAKE £178.56 Add
002 607-04193B-S PEDAL-ASM BRAKE £87.07 Add
003 607-04208 MOUNTING BRACKET (UTV) £117.53 Add
004 607-04210 LEVER ASM, SHIFT, HI LO £89.70 Add
005 607-04211 LEVER ASM, SHIFT, F N R £81.62 Add
006 607-04212A LEVER-CONTROL £491.90 Add
007 607-04216A FORK,LIFT £47.22 Add
008 661-04042 CYLINDER ASSY. £127.82 Add
009 707-04642 PLATE:PAWL:OVER CENTER £18.63 Add
010 707-04693A N/A POA
011 707-04711B N/A POA
012 707-04712D N/A POA
013 707-04805 MT:SHAFT:CONSOLE £33.04 Add
014 710-04027 Screw £10.07 Add
015 710-0116 SCREW-HEX £9.03 Add
016 710-0528 SCREW (DNR) £3.55 Add
017 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
018 710-0607 SELF TAP SCREW £4.71 Add
019 710-0641 SCREW HHCS:1/4-20:2.25:GR5:STD £3.19 Add
020 710-1017 TAP SCREW £2.97 Add
021 710-1122 SCREW HHCS:1/4-20:2.50:GR5:STD £3.90 Add
022 710-3005 BOLT £3.24 Add
023 710-3008 HEX BOLT £3.03 Add
024 710-3022 HEX BOLT UTV £3.58 Add
025 710-3103 SCRE.HHCS:5/16-18:2.00:GR5:STD £3.16 Add
026 711-04214 CLEVIS PIN £26.91 Add
027 711-05063 Bolt £9.33 Add
028 711-0653 CLEVIS PIN £19.04 Add
029 712-04063 FLANGED NUT £4.20 Add
030 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
031 712-04065 NUT £4.02 Add
032 712-0711 NUT £3.07 Add
033 712-3007 HEX JAM NUT £3.07 Add
034 712-3025 HEX JAM NUT 5/16-24 GR 5 £4.37 Add
035 714-0111 COTTER PIN £3.20 Add
036 714-04040 PIN-COTTER £4.38 Add
037 715-04011 PIN:ROLL:5mmx26mm £16.07 Add
038 719-3018 CLEVIS-ADJ 5/16-24 £70.49 Add
039 723-04038 ROD:END 3/8 ID £52.51 Add
040 723-04039 Joint £52.51 Add
041 725-04507 SWITCH £111.02 Add
042 726-04056 CLAMP:HOSE:-3 £42.84 Add
043 727-04224 HOSE-BRAKE FRONT £79.28 Add
044 727-04228 HOSE-BRAKE REAR £59.51 Add
045 727-04230 HOSE-BRAKE -CYLINDER REAR £90.05 Add
046 727-04233 HOSE-BRAKE £55.36 Add
047 732-0418 SPR:EXTN:.38 OD X 2.10 £5.21 Add
048 736-0140 WASH:FLAT:.385 x.62 x.063 £3.59 Add
050 736-0275 WASH:FLAT:.344 x .688 x.065 £3.07 Add
051 737-04128 FITTING:TEE £60.39 Add
052 737-04129 FITTING:BANJO FTG BOLT £24.51 Add
053 737-04130 FITTING:BANJO FTG CRUSH WASH £12.50 Add
055 738-04409 SCR:SHOULDER: .500 x .434 £4.70 Add
056 738-0974 SCR:SHLDR:.375x.380:1/4-20 £9.24 Add
057 738-1011A SHOULDER BOLT £6.58 Add
058 741-04198 BEARING, HEX FLANGE £27.11 Add
059 741-04199 BEARING FLANGE .377 ID £25.34 Add
060 741-0475 PLASTIC BUSHING .38 INCH ID £4.74 Add
061 741-0491 BEARING-NYLINER £12.94 Add
062 741-3073 BEARING, HEX FLANGE £7.51 Add
063 746-04248 CABLE:CONTROL:DIFF LOCK £44.96 Add
064 746-04254 UTV HANDBRAKE CABLE £63.60 Add
065 747-04528A LINK, FLOW CONTROL £78.75 Add
066 747-04529A LINK, SHIFT, HI LO £69.07 Add
067 750-04500 SPACER-PULLEY £42.89 Add
08A 761-04063 N/A POA
