MTD016000

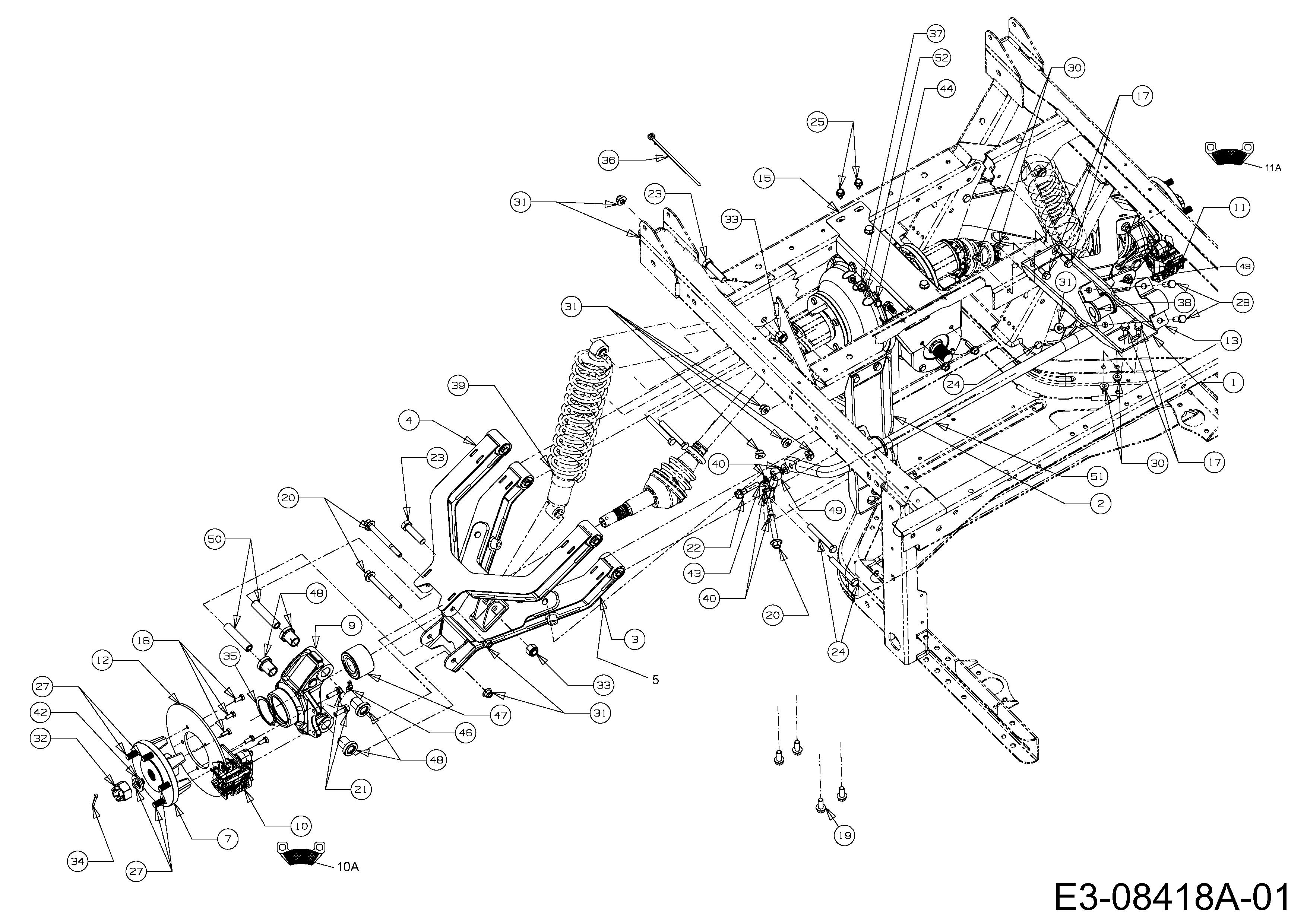

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04328B-S	MOUNT ASM-SWAY	£113.60	Add
002	607-04329B-S	MOUNT ASM-SWAY BAR RH	£113.60	Add
003	607-04394A	CONT ASSEMBLY 607-04163A	£424.87	Add
004	607-04395	CONT ASSEMBLY 607-04162A	£336.66	Add
005	607-04396A	CONTROL ASM LH 607-04169A	£450.18	Add
006	611-04063B	UTV REAR DRIVE SHAFT	£341.39	Add
007	618-04489	HUB ASM-WHEEL 4X4	£155.01	Add
009	619-04188B	HOUSING REAR 4X4 619-04188	£142.55	Add
010	661-04043	BRAKE ASM-CALIPER FRONT RH	£155.97	Add
011	661-04044	BRAKE ASM-CALIPER FRONT LH	£155.97	Add
012	707-04436A	BRAKE DISC	£72.11	Add
013	707-04655637	MOUNT:SWAY BAR	£53.09	Add
014	707-05018B		N/A	POA
015	707-05791		N/A	POA
017	710-04043	SCREW:HEX FLG:5/16-18:WZLK	£11.24	Add
019	710-04482	HHFLG:3/8-16:.875:GR5:STD	£3.24	Add
020	710-04637	SCREW-HEX	£29.34	Add
021	710-04639	SCREW-HEX	£24.91	Add
022	710-04640	SCREW-HEX	£14.88	Add
023	710-0489	SCREW-HEX	£12.98	Add
024	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
025	710-0607	SELF TAP SCREW	£4.71	Add
026	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
027	710-0852	BOLT	£5.63	Add
028	710-3005	BOLT	£3.24	Add
029	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
030	712-04063	FLANGED NUT	£4.20	Add
031	712-04065	NUT	£4.02	Add
032	712-04109	NUT:SLOTTED:22X1.5	£33.41	Add
033	712-3083	NUT	£2.79	Add
034	714-0162	COTTER PIN	£2.79	Add
035	716-04055	Circlip	£25.25	Add
036	726-0240	TIE:CBL:3/16:7.0 LG	£4.13	Add
037	726-05003	CLAMP HOSE	£12.48	Add
038	731-05352	bush	£68.52	Add
039	732-04423	SHABS-5.0 STROKE:RR 4X4	£218.74	Add
040	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
041	736-0300	WASHER	£2.81	Add
042	736-0291	WASHER-FL	£15.86	Add
043	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
044	737-0296	VALVE,INTAKE	£21.95	Add
046	737-3001	GREASE NIPPLE	£15.73	Add
047	741-04166	UTV HUB BEARING	£154.91	Add
048	741-04234B	Flange bearing 741-04234A	£7.30	Add
049	747-04514	TIE ROD	£75.42	Add
050	750-04358B	TUBE PIVOT RR/CONT	£47.24	Add
051	750-04487A	BAR SWAY RR 4X4	£125.00	Add
052	751-10350	FUEL LINE	N/A	POA
10A	761-04064	PADS BRAKE 2 PADS	£75.29	Add
11A	761-04064	PADS BRAKE 2 PADS	£75.29	Add
