MTD010119

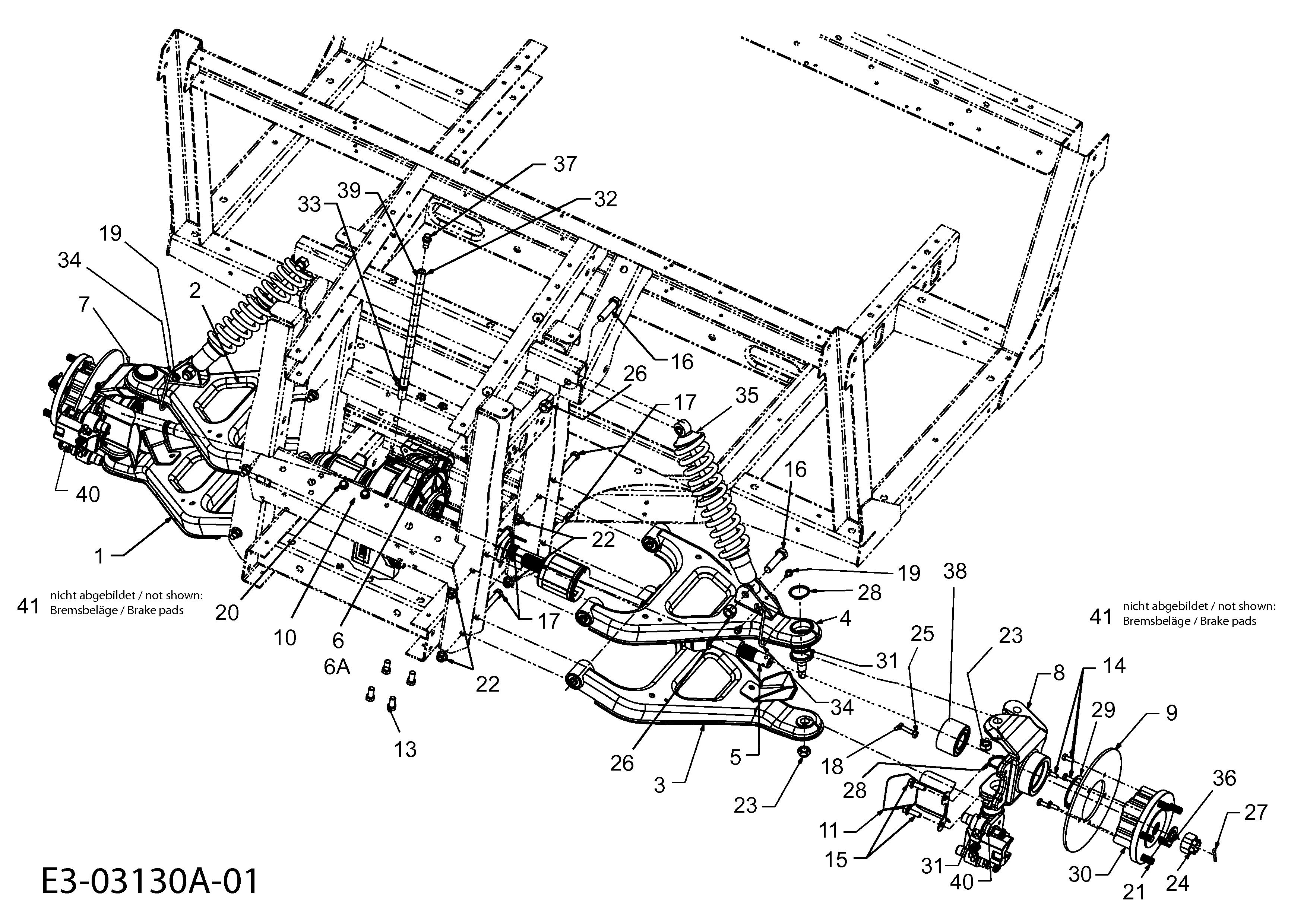

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04398A	CONT ASSEMBLY 607-04145A	£351.92	Add
002	607-04148	CONTROL ARM ASM	£239.54	Add
003	607-04152	CONTROL ASM 607-04152A	£260.70	Add
004	607-04153	CONTROL ASM	£177.98	Add
005	611-04071A	UTV FRONT DRIVESHAFT	£407.83	Add
006	618-04316A	DIFF ASSEMBLY	£757.06	Add
007	619-04137B	UTV Hub R/H	£265.50	Add
008	619-04142B	HOUSING KNUCKLE L/FRONT MACHANICAL	£338.88	Add
009	707-04436A	BRAKE DISC	£72.11	Add
010	707-04604A-S	MOUNT:FRONT/DIFF:4X4	N/A	POA
011	707-04832637	BRACKET	£83.37	Add
012	707-04833637	BRACKET	£98.36	Add
013	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
014	710-0433	HEX BOLT	£6.66	Add
015	710-04639	SCREW-HEX	£24.91	Add
016	710-0489	SCREW-HEX	£12.98	Add
017	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
018	710-0597	HEX SEMS SCREW	£2.97	Add
019	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
020	710-0607	SELF TAP SCREW	£4.71	Add
021	710-0852	BOLT	£5.63	Add
022	712-04065	NUT	£4.02	Add
023	712-04086	Nut	£14.01	Add
024	712-04109	NUT:SLOTTED:22X1.5	£33.41	Add
025	712-3006	NUT	£2.77	Add
026	712-3083	NUT	£2.79	Add
027	714-0162	COTTER PIN	£2.79	Add
028	716-04039	RETAIN RING 34X1.6	£18.06	Add
029	716-04055	Circlip	£25.25	Add
030	618-04489	HUB ASM-WHEEL 4X4	£155.01	Add
031	723-04024	UTV BALL JOINT	£51.47	Add
032	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
033	726-04041	CLAMP-HOSE	£6.63	Add
034	732-04383	WIRE: BRAKE LINE	£24.51	Add
035	732-04424B	UTV FRONT SHOCK ABSORBER	£189.50	Add
036	736-0291	WASHER-FL	£15.86	Add
037	737-0296	VALVE,INTAKE	£21.95	Add
038	741-04166	UTV HUB BEARING	£154.91	Add
039	751-3130	HOSE-FUEL	£77.62	Add
040	759-04222	BRAKE 761-04019	£236.62	Add
041	98-19006	UTV BRAKE PADS ONE SET REQ PER WHEEL one only part (OBSOLETE)	N/A
06A	092.60.003	FRONT DIFF OIL SEAL UTV	£35.82	Add
