MTD010104

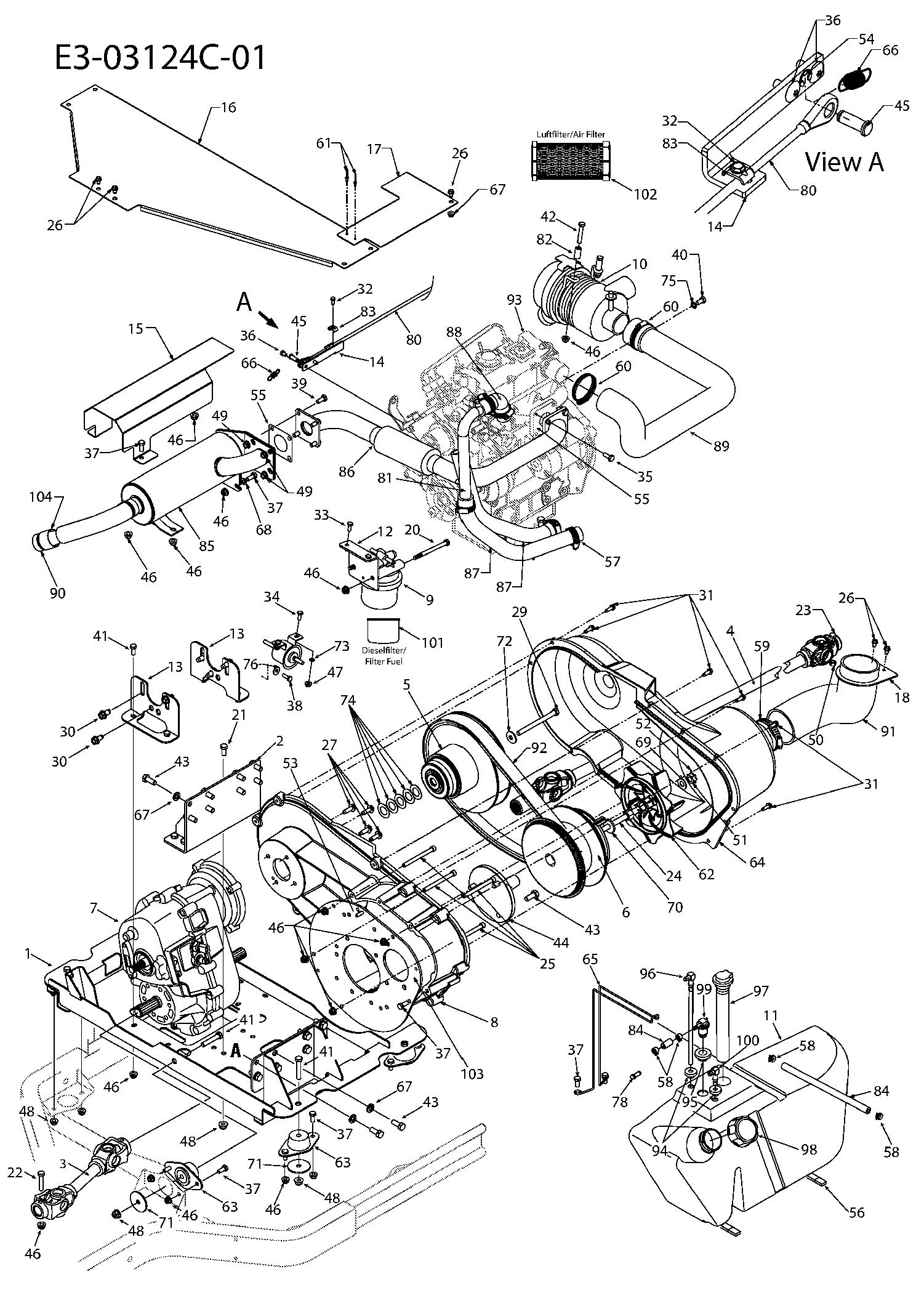

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04175C-S	TRAY ASM:ENGINE	£399.38	Add
002	607-04178637	SUPPORT ASSEMBLY L/CAT	N/A	POA
003	618-04306	UTV REAR PROPSHAFT ASSEMBLY	£691.61	Add
004	618-04314	UTV FRONT PROPSHAFT ASSEMBLY	£416.64	Add
005	618-04586B	GEARBOX DRIVEN CLUTCH MIDDLE SPLINE	£647.75	Add
006	618-04678	ENGINE DRIVE CLUTCH ASSY UTV	£773.27	Add
008	619-04170A	HOUSING	N/A	POA
009	651-04044	NO LONGER AVAILABLE	N/A	POA
010	651-04156	FILTER ASM AIRCL 4X4 CAT	£183.88	Add
011	651-04158	TANK-FUEL 2 GAL	£239.56	Add
012	707-04714637	BRACKET:FILTER:FUEL:CAT 4X4	£25.42	Add
013	707-04724637	BRACKET	£60.87	Add
014	707-04798A-S	MOUNTING:CABLE:THROTTLE	£30.19	Add
015	707-04891	SHIELD:HEAT	£74.25	Add
016	707-04969	PLATE-HEAT SHIELD:CAT	£101.99	Add
017	707-04970	PLATE-HEAT SHIELD:CAT	£72.53	Add
018	707-04991637	BRACKET:TUBE:CVT	£44.30	Add
020	710-0190	HHCS:5/16-18:4.00:GR5:STD	£5.31	Add
021	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
022	710-0116	SCREW-HEX	£9.03	Add
023	710-04653	HHCS 5/16-18:1.875	£14.89	Add
024	710-04657	HEX.SCREW:HHCS7/16-20:5.00GR5	£46.70	Add
025	710-04685	SCREW 5/16-18x3.50	£15.55	Add
026	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
027	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
028	710-0603	SCR:B:5/16-12:0.500:HXINDWSH	£11.34	Add
029	710-04764	GEARBOX CLUTCH BOLT SHORT UTV	£20.32	Add
030	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
031	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
032	710-0651	SCR:B:#10-16:0.625:HEX 710-0436	£10.32	Add
033	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
034	710-0751	BOLT 069	£3.39	Add
035	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
036	710-1765	SCR:TORX:M6-1 x 15.00	£2.93	Add
037	710-3008	HEX BOLT	£3.03	Add
038	710-3015	SCREW HEX CAP	£3.33	Add
039	710-3038	BOLT	£9.82	Add
040	710-3138	NO LONGER AVAILABLE	N/A	POA
041	710-3144	SCREW	£3.28	Add
042	710-3180	SCREW HEX CAP	£5.00	Add
043	710-3208	SCREW HHCS:M10-1.5:25mm:GR8.8	£3.59	Add
044	711-04589	SHAFT, OUTPUT, CAT, TAPERED	£147.01	Add
045	711-04625	PIN-DOWEL	£29.45	Add
046	712-04063	FLANGED NUT	£4.20	Add
047	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
048	712-04065	NUT	£4.02	Add
049	712-3004A	HEX FLANGE NUT	£2.97	Add
050	712-3009	NUT:HEXLK:5/16-18:GRB:CTRLK	£2.98	Add
051	712-3012	NUT:HEX:1/2-20:GR5:SLOT	£4.80	Add
052	714-0111	COTTER PIN	£3.20	Add
053	715-0156	ROLL PIN 1/4 X 3/4	£2.91	Add
054	716-04067	RING:E TYPE	£14.15	Add
055	721-04167	Gasket	£45.27	Add
056	722-3022	TAPE:.625 WIDE x .25 THK FOAM	£2.30	Add
057	726-0174	CLAMP-HOSE	£24.38	Add
058	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
059	726-04080	Clamp	£24.05	Add
060	726-0476	CLAMP-HOSE	£20.49	Add
061	728-0117	RIV:POP:.125 OD:#42	£2.50	Add
062	731-04275	IMPELLER BLADE	£26.00	Add
063	731-04667	MOUNT, ENGINE	£74.10	Add
064	759-04250	PLATE-COVER-HI LO 731-05756	£329.56	Add
065	732-04357	WIRE, TANK, FUEL	£40.07	Add
066	732-0824	Spring	£20.71	Add
067	736-0171	WASHER	£2.93	Add
068	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
069	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
070	736-0322	FI-WASH	£8.68	Add
071	736-04018	WASH:FLAT:.380x2.000x.120	£5.91	Add
072	736-0452	BELL-WASH 39 INCH	£8.68	Add
073	736-0498	WASHER:LOCK:1/4:INT TOOTH	£3.77	Add
074	736-0566	WASHER FLAT	£9.58	Add
075	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
076	736-3090	FL.WASHER:.260 X .720 X .060	£3.11	Add
078	737-0296	VALVE,INTAKE	£21.95	Add
079	737-04156	PLUG:PIPE 1/8-27	£17.71	Add
080	746-04291A	THROTTLE CABLE	£79.39	Add
081	750-04608	TUBE:RDTR:4X4	£84.99	Add
082	750-0661	SPACER	£3.69	Add
083	751B221535	CLAMP-CASING	£3.00	Add
084	751-3130	HOSE-FUEL	£77.62	Add
085	751-10152A	MUFFLER:4X4:CAT/KOHLER	£256.36	Add
086	751-10246	EXHAUST PIPE	£186.23	Add
087	751-10258A	Tube	£47.11	Add
088	751-10260A	Tube	£77.53	Add
089	751-10277	HOSE: AIR INLET 4X4 CAT	£97.01	Add
090	751-10689	ARRESTOR SCREEN	£27.47	Add
091	751-10510	HOSE: AIR INLET 4X4 CAT	£114.50	Add
092	754-04125B	UTV TRANSMISSION DRIVE BELT	£110.42	Add
093	852PHD70600		N/A	POA
094	735-04065	BUSHING - FUEL TANK	£30.23	Add
095	735-04067	bush	£27.52	Add
096	751-10288	FITTING, FUEL, PICKUP 4X4	£32.38	Add
097	751-10361	FUEL SENSOR LOW	£176.30	Add
098	751-10373	UTV DIESEL TANK FILLER CAP	£47.72	Add
099	751-10375	FITTING-FUEL VENT	£78.46	Add
100	751-3174	FITTING-FUEL RETURN TANK	£19.48	Add
101	EPB5635	UTV FUEL FILTER	£33.13	Add
102	EPB5636	UTV AIR FILTER	£51.21	Add
103	707-04629		N/A	POA
104	751-10690	ARRESTOR CLAMP	£44.30	Add
