MTD010099

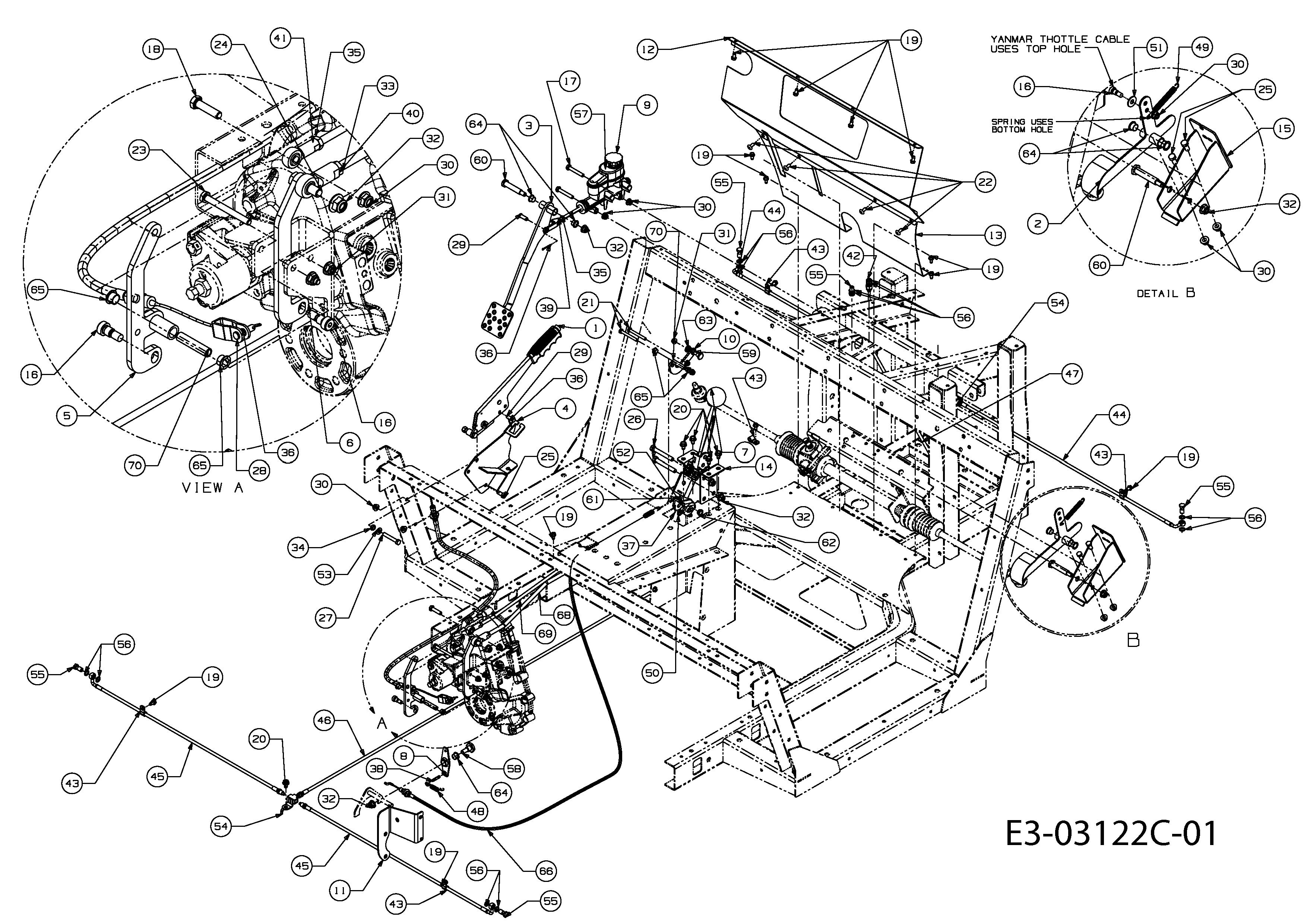

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010099

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04089 LEVER ASM:BRAKE £178.56 Add
002 607-04188B N/A POA
003 607-04193B-S PEDAL-ASM BRAKE £87.07 Add
004 607-04208637 BRACKET £117.53 Add
005 607-04210 LEVER ASM, SHIFT, HI LO £89.70 Add
006 607-04211 LEVER ASM, SHIFT, F N R £81.62 Add
007 607-04212A LEVER-CONTROL £491.90 Add
008 607-04216A FORK,LIFT £47.22 Add
009 661-04042 CYLINDER ASSY. £127.82 Add
010 707-04642 PLATE:PAWL:OVER CENTER £18.63 Add
011 707-04693A N/A POA
012 707-04711B N/A POA
013 707-04712C N/A POA
014 707-04805637 MT:SHAFT:CONSOLE £33.04 Add
015 707-04823C N/A POA
016 710-04027 Screw £10.07 Add
017 710-0116 SCREW-HEX £9.03 Add
018 710-0528 SCREW (DNR) £3.55 Add
019 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
020 710-0607 SELF TAP SCREW £4.71 Add
021 710-0641 SCREW HHCS:1/4-20:2.25:GR5:STD £3.19 Add
022 710-1017 TAP SCREW £2.97 Add
023 710-1122 SCREW HHCS:1/4-20:2.50:GR5:STD £3.90 Add
024 710-3005 BOLT £3.24 Add
025 710-3008 HEX BOLT £3.03 Add
026 710-3022 HEX BOLT UTV £3.58 Add
027 710-3103 SCRE.HHCS:5/16-18:2.00:GR5:STD £3.16 Add
028 711-04214 CLEVIS PIN £26.91 Add
029 711-0653 CLEVIS PIN £19.04 Add
030 712-04063 FLANGED NUT £4.20 Add
031 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
032 712-04065 NUT £4.02 Add
033 712-3001 NUT:JAM:3/8-24:GR2 £3.26 Add
034 712-3007 HEX JAM NUT £3.07 Add
035 712-3025 HEX JAM NUT 5/16-24 GR 5 £4.37 Add
036 714-0111 COTTER PIN £3.20 Add
037 714-0127 PIN:COT:1/16 X .75 £2.79 Add
038 715-04011 PIN:ROLL:5mmx26mm £16.07 Add
039 719-3018 CLEVIS-ADJ 5/16-24 £70.49 Add
040 723-04038 ROD:END 3/8 ID £52.51 Add
041 723-04039 Joint £52.51 Add
042 725-04507 SWITCH £111.02 Add
043 726-04056 CLAMP:HOSE:-3 £42.84 Add
044 727-04224 HOSE-BRAKE FRONT £79.28 Add
045 727-04228 HOSE-BRAKE REAR £59.51 Add
046 727-04230 HOSE-BRAKE -CYLINDER REAR £90.05 Add
047 727-04233 HOSE-BRAKE £55.36 Add
048 732-0418 SPR:EXTN:.38 OD X 2.10 £5.21 Add
049 732-0611 SPR:EXTN:.38 OD x 3.6 LG £5.34 Add
050 736-0140 WASH:FLAT:.385 x.62 x.063 £3.59 Add
051 736-0159 WASH .349 ID X .879 OD X .063 £3.59 Add
052 736-0264 WASH:FLAT:.330 x.630x.0635 £3.59 Add
053 736-0275 WASH:FLAT:.344 x .688 x.065 £3.07 Add
054 737-04128 FITTING:TEE £60.39 Add
055 737-04129 FITTING:BANJO FTG BOLT £24.51 Add
056 737-04130 FITTING:BANJO FTG CRUSH WASH £12.50 Add
057 737-04142 OIL:BRAKE:DOT 3 N/A POA
058 738-0507B SHOULDER BOLT £6.89 Add
059 738-0974 SCR:SHLDR:.375x.380:1/4-20 £9.24 Add
060 738-1011A SHOULDER BOLT £6.58 Add
061 741-04198 BEARING, HEX FLANGE £27.11 Add
062 741-04199 BEARING FLANGE .377 ID £25.34 Add
063 741-0475 PLASTIC BUSHING .38 INCH ID £4.74 Add
064 741-0491 BEARING-NYLINER £12.94 Add
065 741-3073 BEARING, HEX FLANGE £7.51 Add
066 746-04248 CABLE:CONTROL:DIFF LOCK £44.96 Add
067 746-04254 UTV HANDBRAKE CABLE £63.60 Add
068 747-04528A LINK, FLOW CONTROL £78.75 Add
069 747-04529A LINK, SHIFT, HI LO £69.07 Add
070 750-04500 SPACER-PULLEY £42.89 Add
