MTD011667

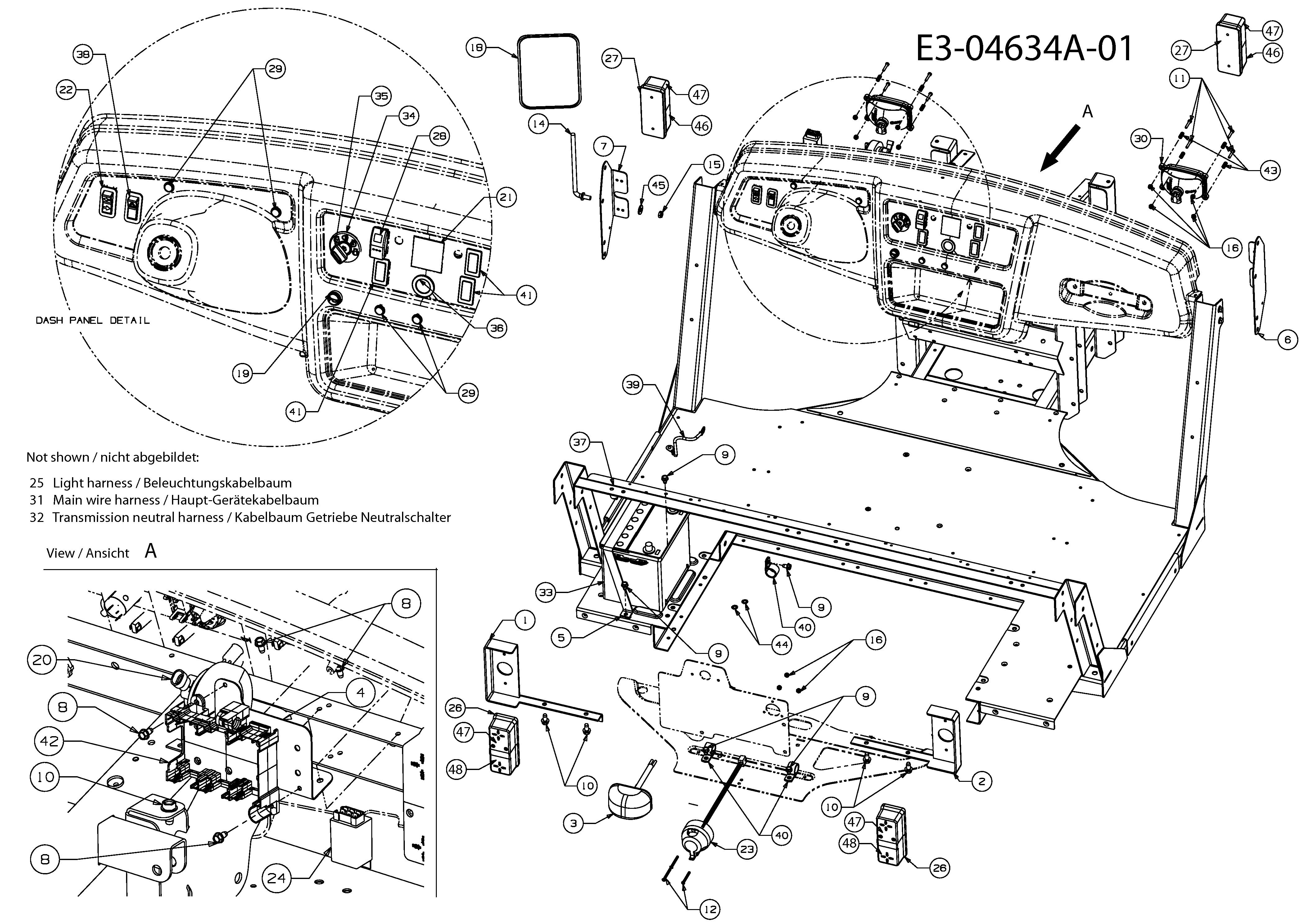

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	607-04269	LIGHT BRACKET ASM	£109.17	Add
002	607-04270	LIGHT BRACKET ASM	£102.48	Add
003	625-04052	LIGHT ASM-LICENSE PLT	£133.35	Add
004	707-04811	BRACKET MOUNT: FUSE	£54.96	Add
005	707-04870A	MOUNT BATTERY BRACKET	£50.52	Add
006	707-05001A		N/A	POA
007	707-05002A		N/A	POA
008	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-0607	SELF TAP SCREW	£4.71	Add
010	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
011	710-0749	HHCS:#10-24:1.00:SPEC	£18.60	Add
012	710-1625	Screw	£21.14	Add
013	710-3008	HEX BOLT	£3.03	Add
014	711-04183	ROD:MNT:MIR	£57.96	Add
015	712-0116	HEX NUT	£3.96	Add
016	712-0161	NYLOK NUT #10-24	£6.05	Add
017	712-04063	FLANGED NUT	£4.20	Add
018	720-04029	MIRROR-SIDE:CE	£256.42	Add
019	725-04014	SWITCH-HORN	£195.97	Add
020	725-04015A	HORN-12V	£155.87	Add
021	725-04022B	METER:IND:HOUR SVC MNDR:NO LBL	£98.07	Add
022	725-04031	725-04031	£82.62	Add
023	725-04160	PLUG:TRAILER CONN:7 PIN	£84.87	Add
024	725-04211	FLASHER-TURN/HAZARD	£321.59	Add
025	725-04440A	HARNESS UV 4X4	£407.57	Add
026	725-04486	LGT:RR:TAILLIGHT	£255.11	Add
027	725-04487	LAMP:UV:TURN:CE	£187.31	Add
028	725-04529	MASTER LIGHT SWITCH	£39.28	Add
029	725-04530	LAMP-IND:GREEN INCANDESCENT	£29.73	Add
030	725-04546	LAMP:HEAD:CE	£122.55	Add
031	725-04609		N/A	POA
032	725-04625	HARNESS WIRE	£52.05	Add
033	725-04514	BATTERY 12 V 725-3267	N/A	POA
034	725-1741	UTV IGNITION SWITCH	£31.51	Add
035	725-1745A	KEY SW UNIVERSAL	£8.09	Add
036	725-2003	RECEPTICAL-POWER 12V	£73.90	Add
037	725-3166	Snap Mount Switch	£15.69	Add
038	725-3279B	SWITCH HAZARD LAMP	£61.69	Add
039	725-3283	WIRE, GROUND	£36.87	Add
040	726-0475	CLAMP-HOSE	£29.99	Add
041	731-04010	COVER	£13.85	Add
042	731-05490	RELAY HOLDER: 3 WAY	£150.44	Add
043	732-04414	COMP.SPRING:.310 X .710 X .041	£5.55	Add
044	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
045	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
046	959-04171	LENS CLEAR	£45.31	Add
047	959-04170	LENS AMBER	£51.79	Add
048	959-04169	LENS RED	£35.61	Add
