MTD017300

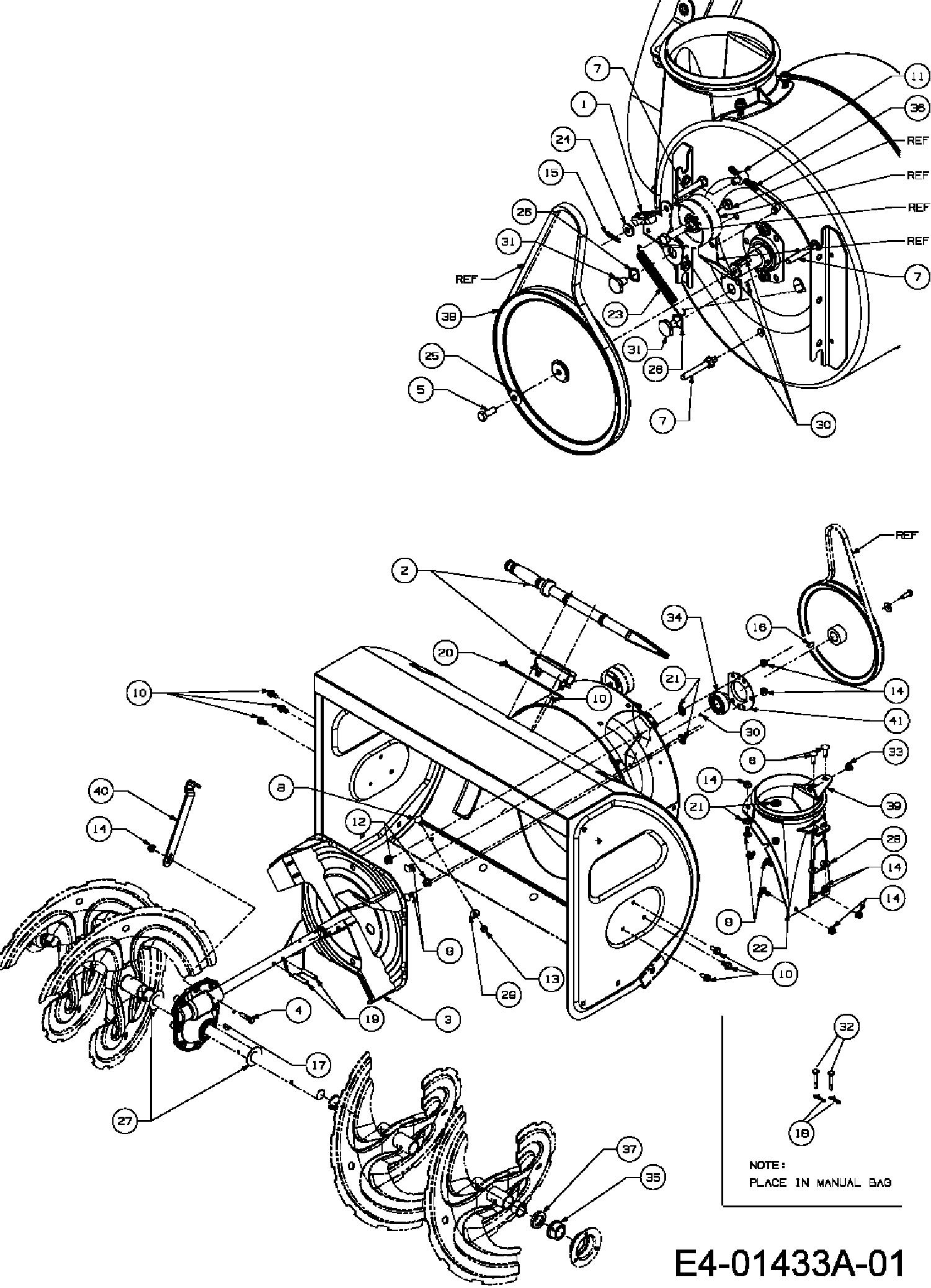

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-0281A	BRACKET ASSY.	£101.99	Add
002	111.11.114	NO LONGER AVAILABLE	N/A	POA
003	684-0090B	IMPELLER ASM:16"	N/A	POA
004	710-0528	SCREW (DNR)	£3.55	Add
005	710-0371	SCREW-HEX	£4.39	Add
006	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add
007	710-04606	SCR:TT:5/16-18:.4300 W/STUD	£16.85	Add
008	710-04525	BOLT: CARRIAGE	£3.80	Add
009	710-0451	BOLT:CRG:5/16-18:.750 GR1	£3.70	Add
010	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
011	711-0677	FERRULE:5/16-18 x.312 DIA	£13.47	Add
012	712-04065	NUT	£4.02	Add
013	712-04103	NUT HEXAGONAL	£12.75	Add
014	712-04063	FLANGED NUT	£4.20	Add
015	714-0104	PIN INTERNAL COTTER	£2.78	Add
016	714-0128	KEY-SQ:1/4:1.00	£7.41	Add
017	714-0135	KEY-WOODRUFF NR.91,1/4X3/4"	£12.14	Add
018	714-04040	PIN-COTTER	£4.38	Add
019	715-0118	PIN:SPIROL:5/16:1.75	£14.56	Add
020	725-0157	NO LONGER AVAILABLE	N/A	POA
021	726-04012	NUT:PUSH-ON:.25 DIA	£4.80	Add
022	731-1696A	CHUTE ADAPTER	£87.41	Add
023	732-0858	SPRING EXTENSION	£34.74	Add
024	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
025	736-0242	BELL WASHER	£3.72	Add
026	736-0174	WASHER	£3.42	Add
027	736-3046A	push-on fastener	£8.32	Add
028	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add
029	736-04216	Spring washer	£12.94	Add
030	737-0318	GREASE-ARCTIC:EP NLGI 1-58F	£44.00	Add
031	738-0281	SCR:SHLDR:.625 x.17:3/8-16	£8.44	Add
032	738-04155	PIN SHEAR	£6.22	Add
033	741-0475	PLASTIC BUSHING .38 INCH ID	£4.74	Add
034	741-04024	SELF-ALIGNING BEARING	£62.10	Add
035	741-0182	BEARING-FLANGE	£26.52	Add
036	747-0980A	ROD-TIE-NON ADJ	£32.96	Add
037	750-04020	SPACER 1.004 X 1.375 X .25	£18.17	Add
038	756-0243	PULLEY	£110.53	Add
039	784-5123	BRACKET-CHUTE CRANK	£10.87	Add
040	790-00264	TRANSMISSION SUPPORT	£42.69	Add
041	05244B	BEARING HOUSING	£20.78	Add
