MTD016040

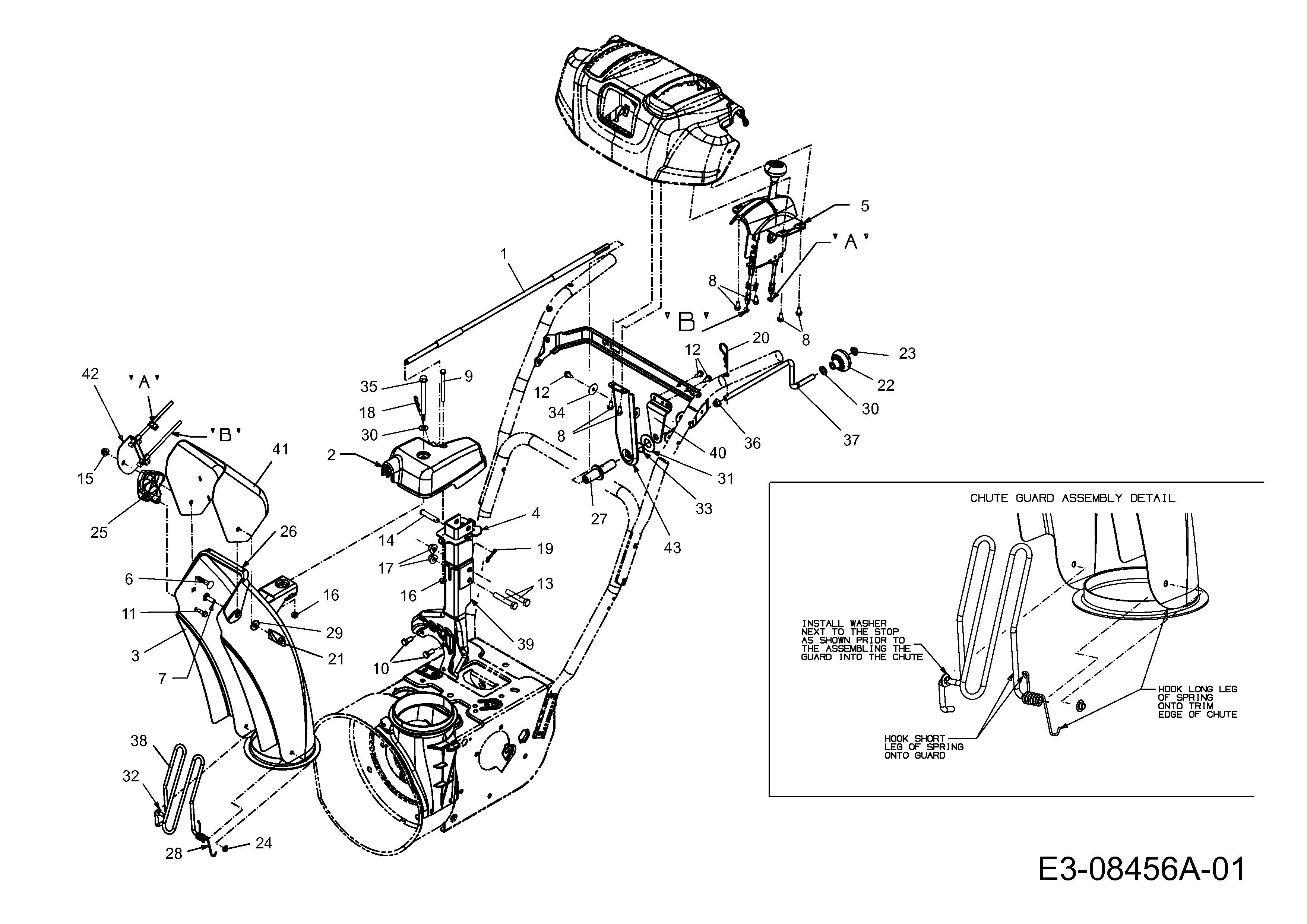

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	611-05044	CONTROL ASM OHS	£122.54	Add
002	618-04933A	GRBX ASM:WORM:CHUT ROT 2-WAY	£89.18	Add
003	684-05023	CHUTE LOWER	N/A	POA
004	684-05035	MAST CHUTE EXTENSION	N/A	POA
005	684-05044	CONTROL ASM 2 WAY CHUTE	£107.77	Add
006	710-0262	BOLT:CRG:5/16-18:1.50:GR2	£4.00	Add
007	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add
008	710-04187	SCH:HL:1/4-15:0.50:HXINDWSH	£4.22	Add
009	710-04370	SCREW-HEX CAP 1/4-20X3.00	£11.84	Add
010	710-0627	HEX SCREW	£3.32	Add
011	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
012	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
013	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
014	711-04469A	PIN:CLEVIS:3/8:1.87	£5.62	Add
015	712-04063	FLANGED NUT	£4.20	Add
016	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
017	712-04065	NUT	£4.02	Add
018	714-0101	PIN:COT:INT:.08 X 1.42	£3.58	Add
019	714-04040	PIN-COTTER	£4.38	Add
020	714-3020	PIN-COTTER	£7.71	Add
021	720-04072A	HAND RELEASE	£4.27	Add
022	720-04102	KNOB:ADJ:HGT	£14.81	Add
023	726-0100	PUSH NUT 3/8 (RED)	£3.24	Add
024	726-0106	CAP SPEED NUT	£3.33	Add
025	731-09535	GUIDE CHUTE TILT CABLE	£23.60	Add
026	731-09539	ADAPTER UPPER CHUTE	£27.63	Add
027	731-09643	COUPLER	£23.21	Add
028	732-05087	TORSION SPRING	£12.94	Add
029	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add
030	736-0185	FLAT WASHER (RED)	£3.59	Add
031	736-0316	WASHER	£5.97	Add
032	736-04446	WASH:FLAT:.25X.630X.0515 HT	£4.11	Add
033	736-0621	WASHER-WAVE	£6.32	Add
034	736-3092	WASH:FLAT:.265 x 1.0 x.030:HD	£3.49	Add
035	738-04367	SCR:SHLDR:FLG:.312X3.5X1/4-20	£9.43	Add
036	741-0475	PLASTIC BUSHING .38 INCH ID	£4.74	Add
037	747-06196		N/A	POA
038	747-06199	ROD CHUTE GUARD	£34.05	Add
039	790-00330A		N/A	POA
040	790-00341		N/A	POA
041	790-00529	CHUTE UPPER	N/A	POA
042	790-00565		N/A	POA
043	790-00576		N/A	POA
