MTD017386

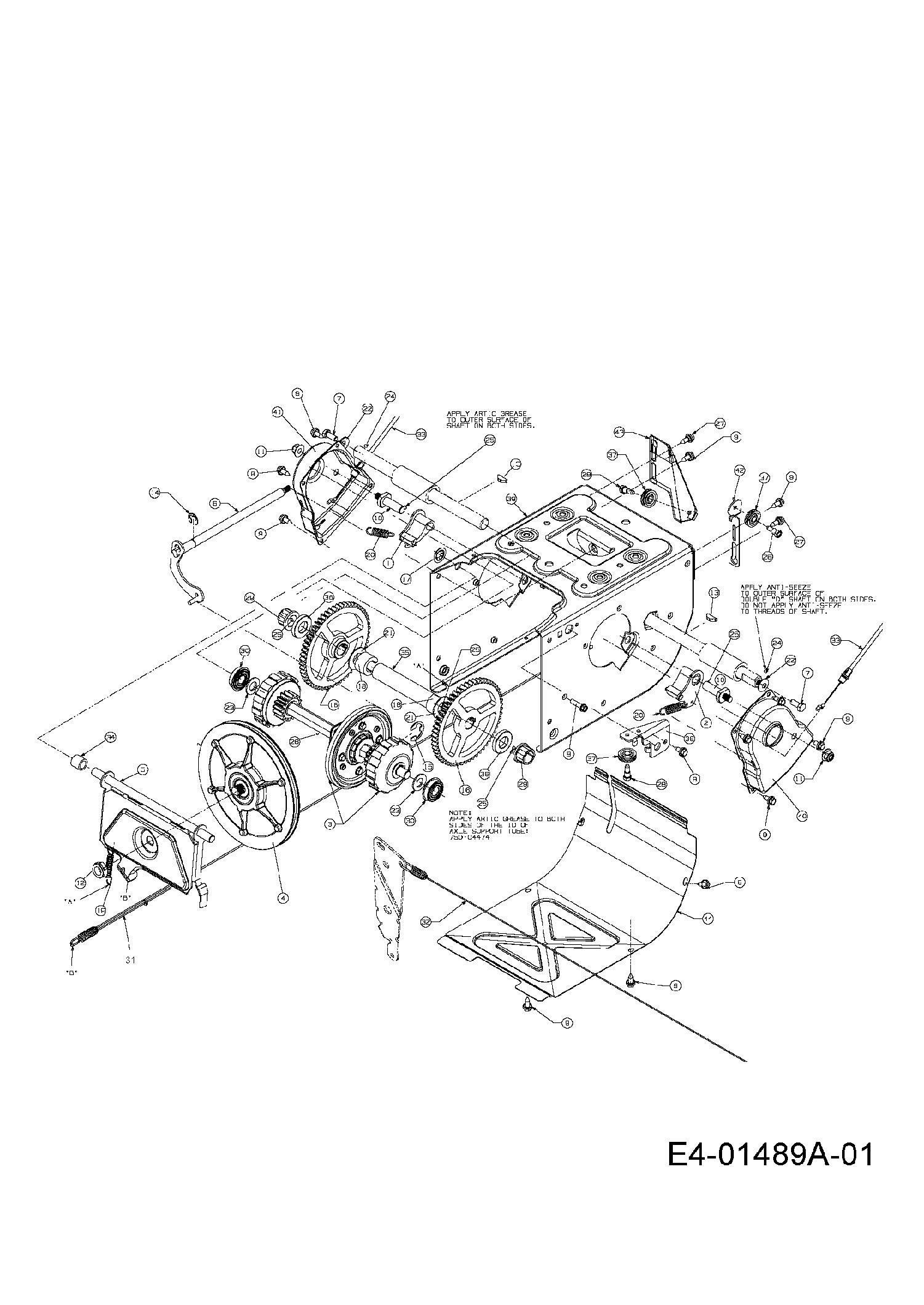

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017386

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04287 DOGG ASM:RH N/A POA
002 618-04288 DOGG ASM:LH N/A POA
003 618-04322 SHAFT ASM:HEX:FRICTION WHEEL £292.86 Add
004 656-04025A DISC ASM:WHL:FRICTION £110.92 Add
005 684-04154 BRKT ASM: SUPT:FRCTN WHL BLACK £48.02 Add
006 684-04156 SHIFT ASSY, ROD £51.74 Add
007 710-0627 HEX SCREW £3.32 Add
008 710-0788 NO LONGER AVAILABLE N/A POA
009 710-1652 SCR:TT:1/4-20 x.625:HXINDWH £4.25 Add
010 711-1268B SHAFT ACTUATOR DR 500 S/T £12.45 Add
011 712-04065 NUT £4.02 Add
012 712-0413 NUT:JAMLK:5/8-18:GR5:NYLON £13.79 Add
013 714-0126 KEY-HI-PRO:3/16 x 3/4 DIA £7.50 Add
014 716-0104 RETAINING RING 1650-001 £3.58 Add
015 716-0136 RING:RET:TYPE-E .875 DIA £3.49 Add
016 717-04210 GEAR-56 TOOTH £54.15 Add
017 726-0221 PUSH CAP £3.51 Add
018 731-05297 SPACER: .76ID X .75 LG £4.70 Add
019 732-0264 EXTENSION SPRING £10.47 Add
020 732-04345 SPRING EXTENSION £5.41 Add
021 736-0188 FI-WASHER £6.15 Add
022 736-0242 BELL WASHER £3.72 Add
023 736-0626 WASH:FLAT:.58 x 1.125 x .08:HT £19.28 Add
024 737-0288 NO LONGER AVAILABLE N/A POA
025 737-0318 GREASE-ARCTIC:EP NLGI 1-58F £44.00 Add
026 737-04027 N/A POA
027 738-04184A SCR:SHLDR:.368x.113:TT:1/4-20 £5.41 Add
028 738-0924A SCR:SHLDR:.340x.355xC:1/4-28 £2.90 Add
029 741-0245 BRG:HEX FLANGE x.75 ID £9.33 Add
030 741-04076 SELF-ALIGNING BEARING £16.52 Add
031 746-04229 CBL:CLU:DR:WHL:44.955 LG £22.75 Add
032 746-04230 CBL:CLU:DR:AUGER:47.48 LG £31.68 Add
033 746-0956A STEERING CABLE £32.73 Add
034 748-0190 SPCR:.508 ID x.750 OD x.68 £4.00 Add
035 750-04474 TUBE:SUPT:AXLE £28.02 Add
036 750-0767 DISTANCE BUSH £5.10 Add
037 756-0625 cable idler wheel £10.52 Add
038 790-00096 BRKT:GDE:AUGER CBL FRNT SUPT N/A POA
039 790-00183 DRIVE FRAME N/A POA
040 790-00185 N/A POA
041 790-00186 N/A POA
042 790-00206A BRKT:GDE:CBL:CLU:AUGER £11.05 Add
043 790-00207A CABLE GUIDE N/A POA
044 790-00226 COVER:FRAME 500 S/T BL N/A POA
