MTD014628

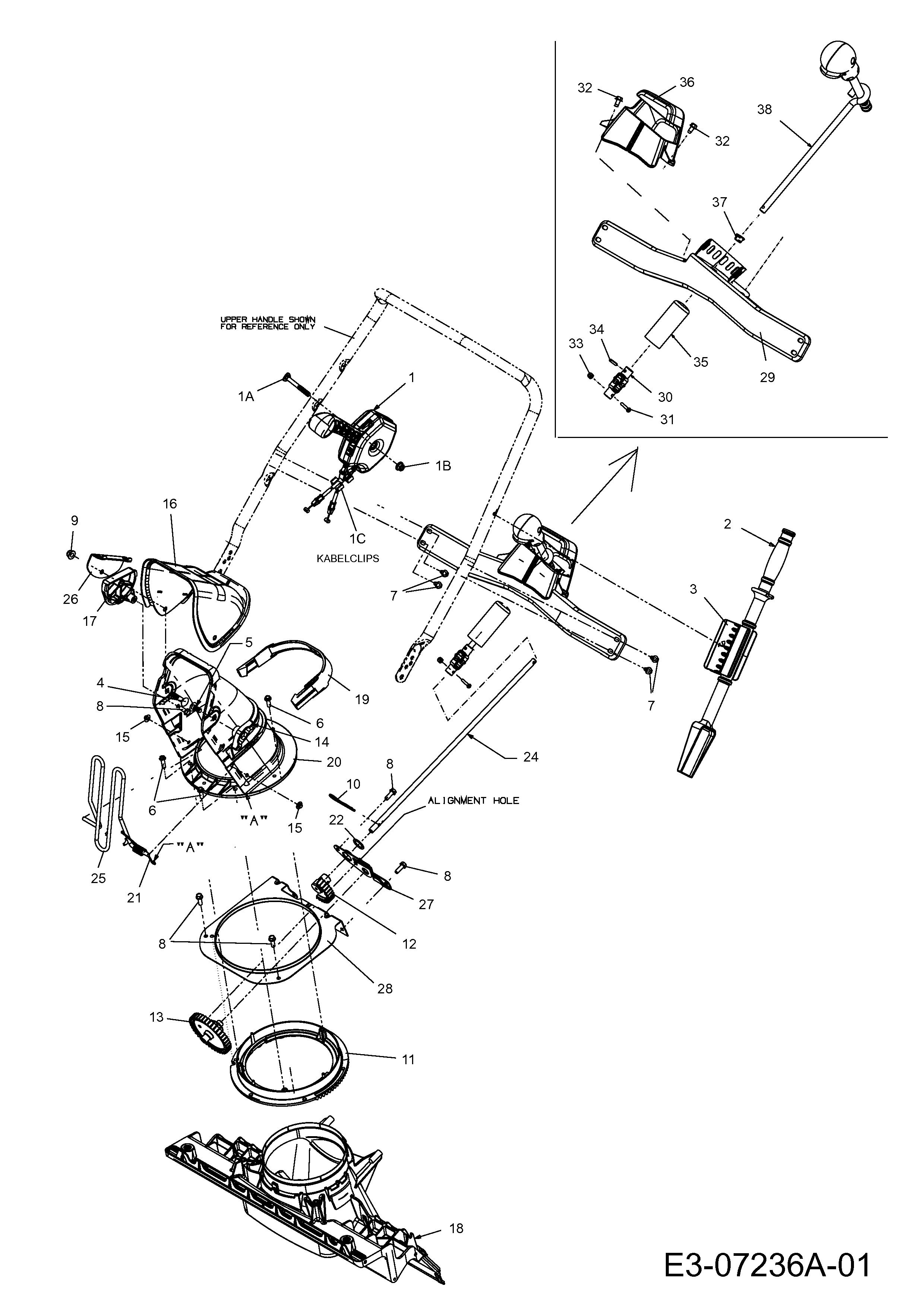

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014628

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 631-04494 CONTROL ASM:CHUTE £44.50 Add
002 731-2643 CHUTE CLEAN-OUT TOOL £21.68 Add
003 731-08357 MOUNTING BRACKET - CHUTE TOOL £18.72 Add
004 710-0262 BOLT:CRG:5/16-18:1.50:GR2 £4.00 Add
005 710-0451 BOLT:CRG:5/16-18:.750 GR1 £3.70 Add
006 710-05108 SCR:BOS:1/4 DIA:.750:HXINDWSH £4.25 Add
007 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
008 710-0895 SCR:HL:1/4-10:0.750:HXINDWSH £3.51 Add
009 712-04063 FLANGED NUT £4.20 Add
010 714-04003 Roll pin £12.14 Add
011 717-04844B GEAR BEVEL £50.74 Add
012 717-04940 GEAR SPUR £63.61 Add
013 717-04941 GEAR SPUR £65.40 Add
014 720-04122 WING KNOB £11.09 Add
015 726-0106 CAP SPEED NUT £3.33 Add
016 731-04425B UPPER CHUTE £31.65 Add
017 731-06451 GDE:CBL:CHUTE TILT £7.13 Add
018 731-07626B CHUTE ADAPTER £70.09 Add
019 731-07708 PLUG CHUTE £37.67 Add
01A 710-05163 BOLT CRV HD CRG 5/16-18X2.5 £17.07 Add
01B 712-04063 FLANGED NUT £4.20 Add
01C 731-07868 CLIP CABLE £18.63 Add
020 731-08364 CHUTE LOWER £54.31 Add
021 732-04880 SPR: TORSION:.290 ID X 1.95 £5.91 Add
022 736-04161 WASH:FLAT:.75 x 1.00 x .06 £4.62 Add
024 747-05299A ROD CHUTE CRANK LOWER £55.60 Add
025 747-05522 CHUTE GUARD £53.09 Add
026 784-5594637 BRACKET-CABLE £14.06 Add
027 790-00416 PLT:GDE: £29.25 Add
028 790-00471 BRACKET RETAIN GEAR £56.05 Add
029 684-04383637 BRACKET INDICATOR £105.61 Add
030 684-04400 BLOCK ASM JOINT DRILLED £48.93 Add
031 710-05179A SCREW PANHEAD #8-32X.875 £15.11 Add
032 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
033 712-04035 NUT HEX LCK £10.83 Add
034 715-04095 USE 715-0247 £11.29 Add
035 720-04174 GRIP £26.00 Add
036 731-07957 COVER-HARD TOP £63.43 Add
037 741-0475 PLASTIC BUSHING .38 INCH ID £4.74 Add
038 631-04526 CNTRL ASM CHUTE ROTATION £125.51 Add
