MTD008598

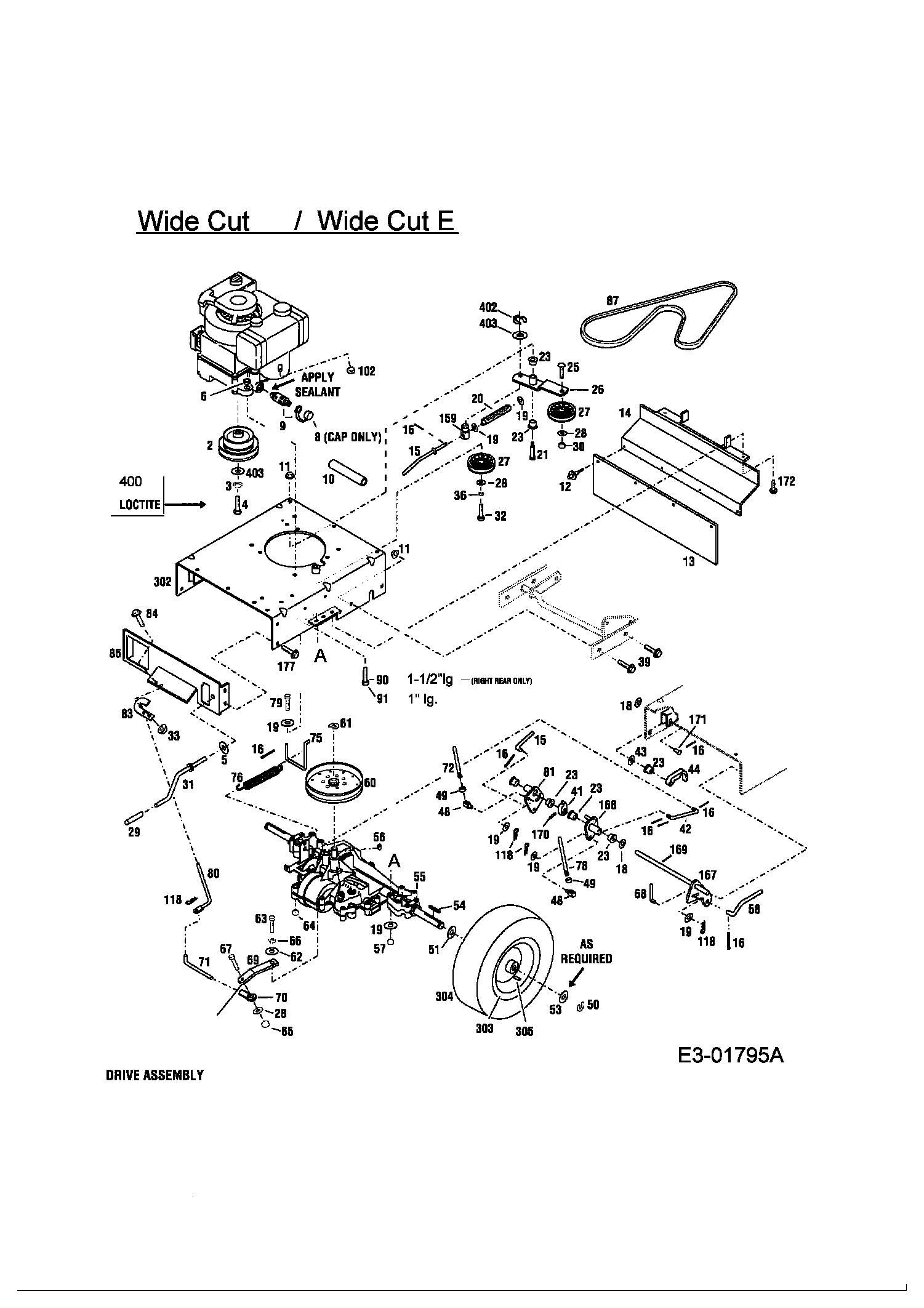

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	GW-1769904	ENGINE PULLEY	£120.11	Add
003	736-0171	WASHER	£2.93	Add
004	GW-1740949	Bolt	N/A	POA
005	GW-1773599	WASHER-NYLON	N/A	POA
006	712-0266	L-nut 092.15.201	N/A	POA
008	GW-1766326	TUBE CLOSURE	N/A	POA
009	751-10517A	OIL DRAIN	£38.87	Add
010	GW-1769006		N/A	POA
011	GW-1186393	NUT-	£19.32	Add
012	GW-1727379	RIVET-POP 3/16X5/8	N/A	POA
013	GW-1769870	FLAP	£51.06	Add
014	GW-1769869		N/A	POA
015	GW-1769885	ROD-LOWER TRANSM	N/A	POA
016	GW-1185147	PIN-COTTER	N/A	POA
018	GW-1890234	WASHER	N/A	POA
019	GW-1107382	WASHER	N/A	POA
020	GW-1711864	SPRING	£6.85	Add
021	GW-1763219	SCREW-SHLDR	£28.48	Add
023	GW-1715538	BUSHING-	£12.50	Add
025	GW-1748393	SCREW-CARR 3/8-16X	N/A	POA
026	GW-1918370	BRACKET	N/A	POA
027	GW-1756151	IDLER PULLEY	£86.93	Add
028	736-3050	NO LONGER AVAILABLE	N/A	POA
029	GW-1715685	HANDLE	N/A	POA
030	712-3000	NUT:HEXLK:3/8-16 GR.B CTRLK	£3.20	Add
031	GW-1915831	NO LONGER AVAILABLE	N/A	POA
032	710-0347	HEX SCR	£3.72	Add
033	GW-1186389	NUT	N/A	POA
036	736-0169	L. WASHER	£2.89	Add
039	GW-1186347	SCREW	N/A	POA
041	GW-1769881	NO LONGER AVAILABLE	N/A	POA
042	GW-1769877	LOWER BRAKE ROD	N/A	POA
043	GW-1702646	WASHER-FLAT 1.0X.516	N/A	POA
044	GW-1770361	NO LONGER AVAILABLE	N/A	POA
048	GW-1725264	BLOCK-SWIVEL	N/A	POA
049	712-3007	HEX JAM NUT	£3.07	Add
050	GW-1185388		N/A	POA
051	GW-1708012	WASH:FLAT:.760x1.490X.060:HD	£6.81	Add
053	GW-1701447	NO LONGER AVAILABLE	N/A	POA
054	714-0168	KEY GW-1769781	£12.14	Add
055	GW-1769708	NO LONGER AVAILABLE	N/A	POA
056	GW-1104436	KEY-WOODRUFF	£16.85	Add
057	GW-1732499	NUT-TOP/LK	£3.20	Add
058	GW-1770247	ROD-LOWER BLADE	£88.32	Add
060	GW-1770326	PULLEY	£49.19	Add
061	GW-1118808	RETAINER	£8.61	Add
062	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
063	710-0412	HHCS:1/4-28:.75:GR5:STD	£3.51	Add
064	712-3004A	HEX FLANGE NUT	£2.97	Add
065	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK	£3.51	Add
066	736-0329	L. WASHER	£3.26	Add
067	712-3005	NUT:FLGLK:3/8-16:GR5	£3.49	Add
068	GW-1769888	ROD-UPPER BLADE	N/A	POA
069	GW1915745001	NO LONGER AVAILABLE	N/A	POA
070	GW-1767837	BALL JOINT	£28.11	Add
071	GW-1768628	SHIFT LINK ROD (RED)	£14.98	Add
072	GW-1769873	ROD-UPR TRANSMISSI	N/A	POA
075	GW-1768624	ROD	£28.26	Add
076	GW-1768636	SPRING-EXTENSION	£10.54	Add
078	GW-1769872	UPPER BRAKE ROD	N/A	POA
079	GW-1111609		N/A	POA
080	GW-1769874	SHIFT ROD	£62.44	Add
081	GW-1769875	PIVOT-CLUTCH ARM	N/A	POA
083	GW-1768630		N/A	POA
084	GW-1186308	SCREW	N/A	POA
085	GW-1769852		N/A	POA
087	GW-1770334	BELT	£113.11	Add
090	GW-1768194		N/A	POA
091	GW-1762042	SCREW-HH	£8.11	Add
102	GW-1186229		N/A	POA
118	GW-1717897	PIN-CLIP	£4.39	Add
159	GW-1916897	PIVOT ROD	£13.16	Add
167	GW-1769882	ASSM-PIVOT SHAFT	N/A	POA
168	GW-1769878		N/A	POA
169	GW-1100350		N/A	POA
170	GW-1187961	PIN-ROLL .156X1.0	N/A	POA
171	GW-1730851	PIN-CLEVIS .5X1.25	N/A	POA
172	710-0604A	SCREW	£3.62	Add
177	GW-1740496	SCREW-HFLK	£4.24	Add
302	687-02014		N/A	POA
303	GW-1768180	WHEEL ASSY	£364.94	Add
304	GW-1774129	REAR WHEEL	£80.68	Add
305	GW-1718086	STEM-VALVE	£26.11	Add
400	GW-97092	LOCTITE-242	N/A	POA
402	GW-9532	RING CLIP	£36.87	Add
403	GW-20546	WASHER	N/A	POA
