MTD010835

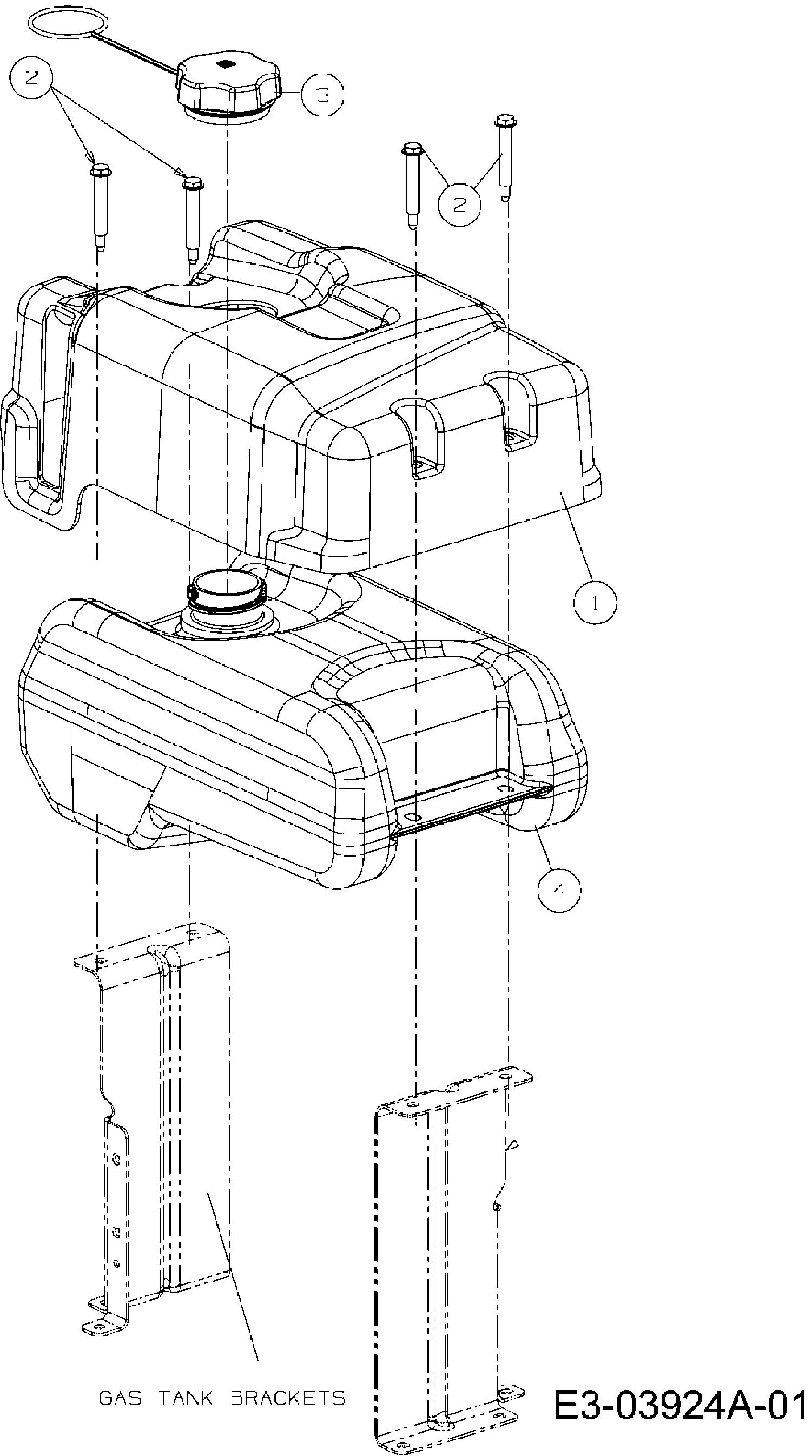

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010835

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-05927 COVER TANK £37.77 Add
002 738-04282 BRAKE PLATE FIX BOLT £23.34 Add
003 751-10514 FUEL TANK £32.02 Add
004 751-10541 FUEL TANK £84.22 Add
