MTD010831

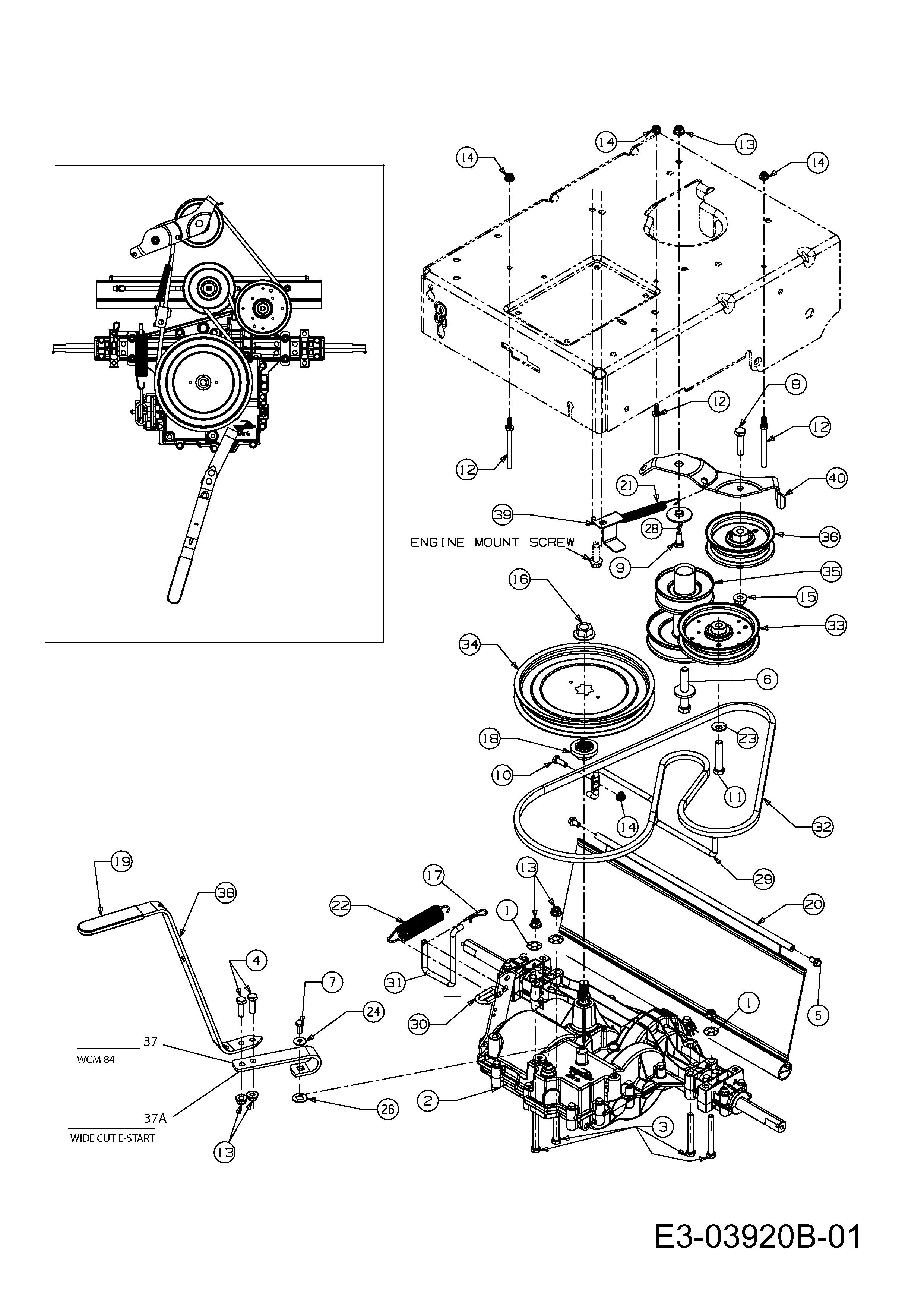

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010831

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 02000300 push-on fastener N/A POA
002 618-04639 TRANSAXLE 4 SPEED £491.61 Add
003 710-0176 HHCS:5/16-18:2.75:GR5:STD £6.11 Add
004 710-0376 SCREW HEX CAP 5/16 £9.02 Add
005 710-0896 SCREW WITH WASHER ST £4.97 Add
006 710-04377 SCREW 1/16-20X2.75 £11.05 Add
007 710-0513 BOLT £3.59 Add
008 710-0347 HEX SCR £3.72 Add
009 710-0376 SCREW HEX CAP 5/16 £9.02 Add
010 710-3015 SCREW HEX CAP £3.33 Add
011 710-0347 HEX SCR £3.72 Add
012 711-1000 BELT KEEPER £9.71 Add
013 712-04063 FLANGED NUT £4.20 Add
014 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
015 712-04065 NUT £4.02 Add
016 712-0700 NUT:FLANGE:9/16-18:GR2 £13.38 Add
017 714-0145 R CLIP £2.78 Add
018 718-04407 HUB:PUL:5/8 SPLINE £20.19 Add
019 720-0142 HANDLE £13.65 Add
020 731-05766 REAR FLAP £46.21 Add
021 732-04409 TENSION SPRING £26.61 Add
022 732-04443A EXTENSION SPRING-BRAKE £26.31 Add
023 736-0105 BELL WASHER £3.33 Add
024 736-0270 BELL WASHER £3.91 Add
025 736-0322 FI-WASH £8.68 Add
026 736-04256 Washer £21.95 Add
028 738-04166 SPACER £5.21 Add
029 747-04635A SCR:RET:BELT £35.50 Add
030 747-05571 COUPLING LINK £27.88 Add
031 747-04678 BELT KEEPER £41.32 Add
032 754-04145A BELT TRANSMISSION DRIVE £76.35 Add
033 753-08171 KIT IDLER PULLEY £37.57 Add
034 756-04258 PULLEY £58.58 Add
035 756-04260 V-BELT PULLEY CPL. £74.76 Add
036 756-04280A PULLEY IDLER 3.50 DIA FLAT £39.75 Add
037 787-01469A-R LOWER LEVER SHAFT £50.70 Add
038 787-01470A UPPER LEVER SHAFT £74.76 Add
039 787-01473 BELT KEEPER £69.84 Add
040 787-01523 IDLER ARM £29.22 Add
37A 787-01469ACY LOWER LEVER SHAFT £54.04 Add
