MTD014890

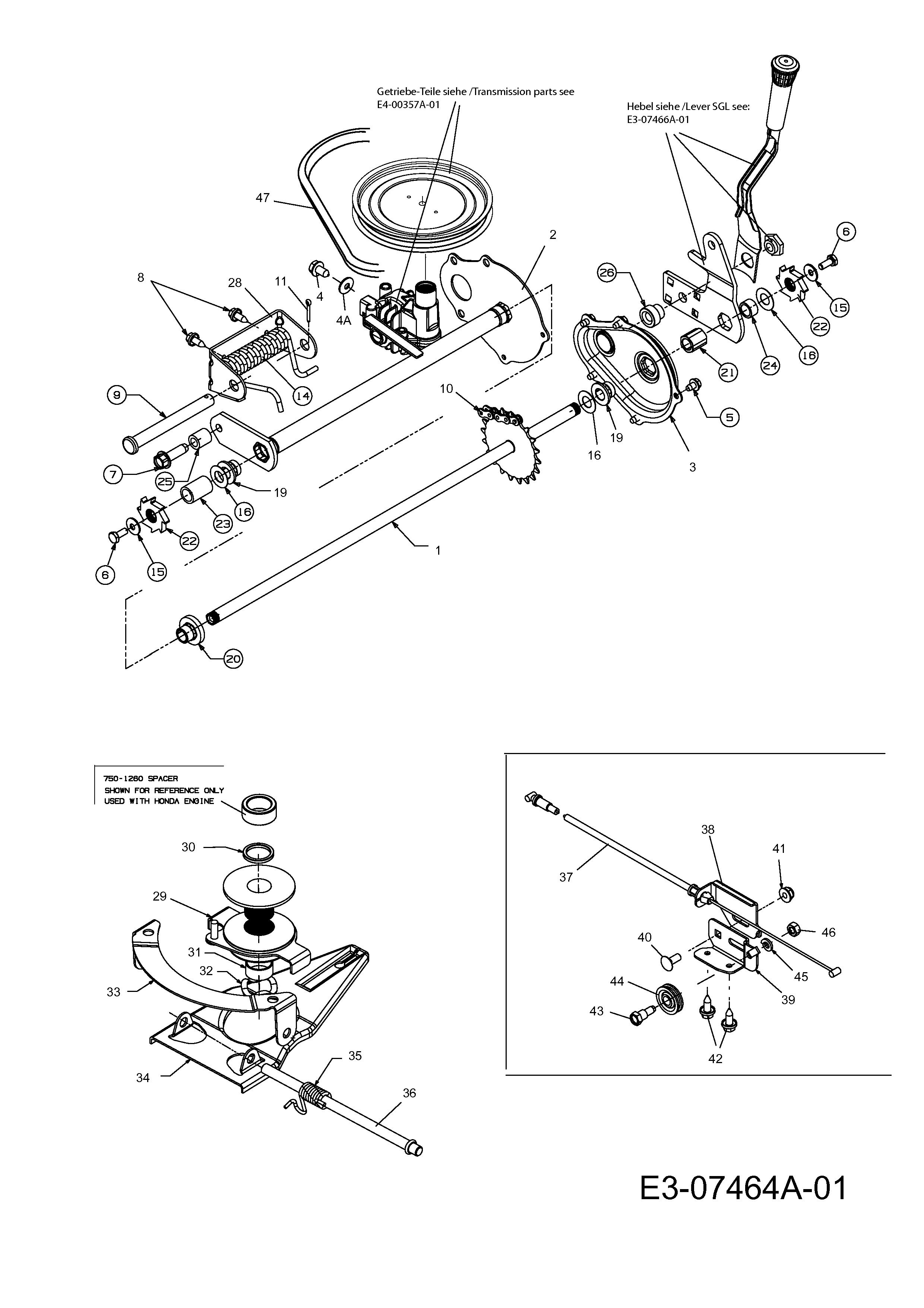

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	638-0012A	REAR AXLE ASSY.	£190.94	Add
002	682-7526	TRANS AXLE ASSY	£269.94	Add
003	682-7528	CVR ASM:CHAIN:20/6 RATIO	£84.69	Add
004	710-0604A	SCREW	£3.62	Add
005	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
006	710-0751	BOLT 069	£3.39	Add
007	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
008	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
009	711-0835	CLEVIS PIN	£9.50	Add
010	713-0453	CHAIN ENDLESS	£17.76	Add
011	714-0474	PIN (RED)	£3.20	Add
014	732-0832	SPRING,EXT.1"	£37.16	Add
015	736-0270	BELL WASHER	£3.91	Add
016	736-0369	WASH:THRST:.508x1.000x.020	£2.97	Add
019	741-0324A	BEARING	£5.54	Add
020	741-0522	HEX FLANGE BEARING	£4.65	Add
021	741-0978	BEARING SLEEVE	£6.50	Add
022	748-0318	RATCHET WHEEL	£12.29	Add
023	750-0151	SPCR:.550IDx.750ODx1.125	£12.04	Add
024	750-0515	SPACER	£13.79	Add
025	750-0807	SPCR: .385 X.625 X.700	£3.07	Add
026	750-1056	SPACER-PULLEY	£15.90	Add
028	782-0568637	PLATE SPRING SHIFT	£16.26	Add
029	656-0613A	PULLEY ASSY MULTI SPEED	£95.06	Add
030	750-1071	SPACER	£4.92	Add
031	750-1070	SPACER	£15.69	Add
032	736-0526	WASH:WAVE:.88 x 1.31 x .029	£8.68	Add
033	782-7597	BRACKET-CABLE	£14.67	Add
034	782-7596A	ARM:CONT:6-SPD	£75.65	Add
035	732-0807	SPRING,EXT.1"	£7.51	Add
036	711-1114	SHAFT ASSY-WHL BRKT	£34.56	Add
037	746-0939A	SPEED CABLE	£37.22	Add
038	782-7574A	CABLE ADJUSTER BRACKET	£93.64	Add
039	782-7575B	CABLE ADJUSTING	£28.42	Add
040	710-0134	BOLT	£3.03	Add
041	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
042	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
043	738-0924A	SCR:SHLDR:.340x.355xC:1/4-28	£2.90	Add
044	756-0625	cable idler wheel	£10.52	Add
045	736-0329	L. WASHER	£3.26	Add
046	712-0138	NUT	£3.03	Add
047	754-0460	V-BELT	£34.87	Add
04A	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add
