MTD012852

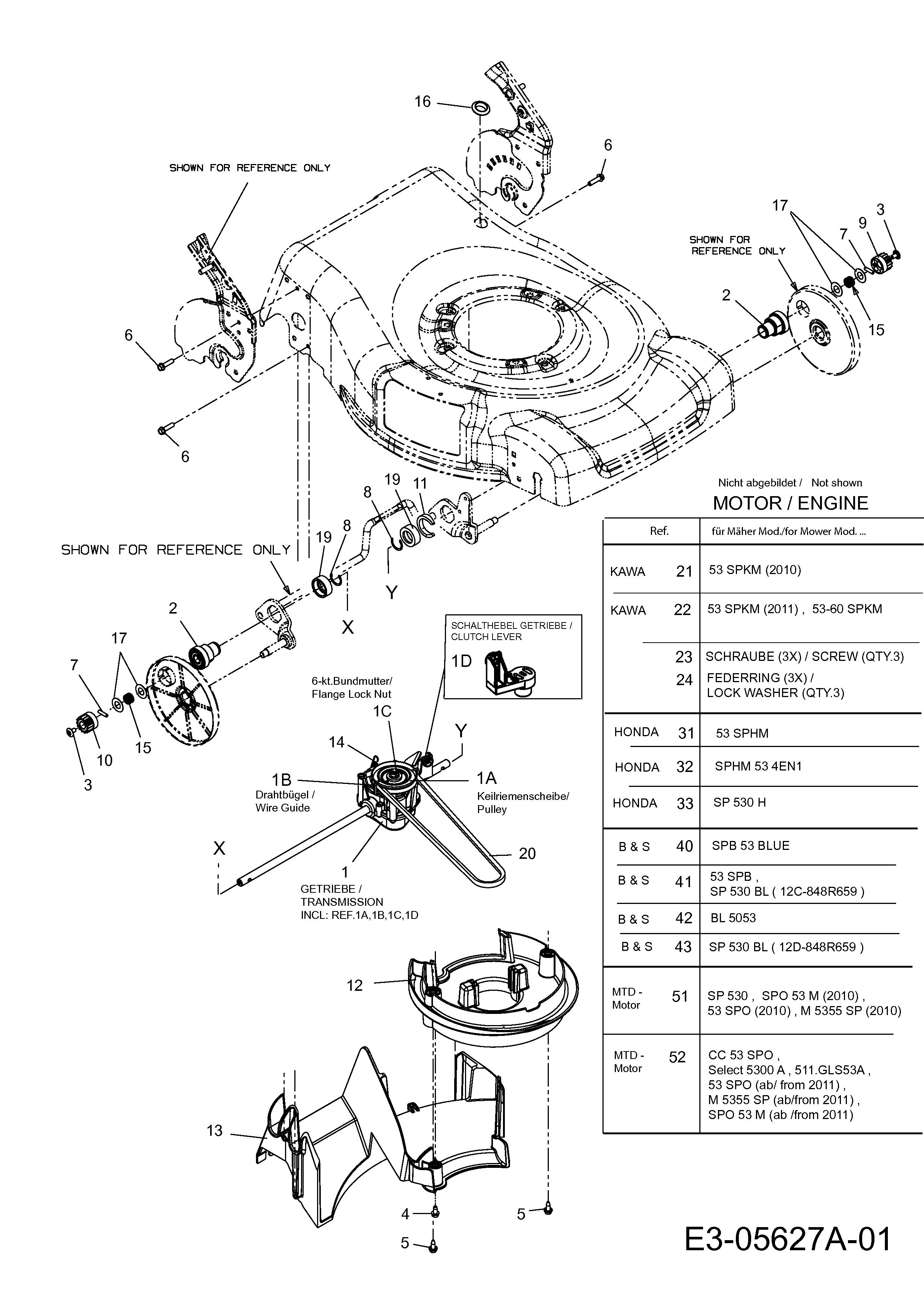

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04665A	TRANSMISSION ASSY.	£115.30	Add
002	687-02415	SUPT ASM:BRG:TRANS:800	£26.34	Add
003	710-05168	SCR:1/4-20 x.390:PANTRXI	£5.40	Add
004	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
005	710-0896	SCREW WITH WASHER ST	£4.97	Add
006	710-1241	SCR:HL:1/4-15:1.000:HXINDWSH	£3.20	Add
007	715-0221	DOWEL PIN:H.G.PROD. 3/16 x 3/4	£5.33	Add
008	716-0198	RING-RETAINING:.875	£3.24	Add
009	717-04184C	DRIVE PINION L.H. 717-04184A	£31.66	Add
010	717-04192C	DRIVE PINION R.H. 717-04192A	£31.66	Add
011	731-05872	SPCR:CLIP: 1.181 ID X .307 LG	£3.90	Add
012	731-06164	MOTOR SUPPORT, BLACK	£34.45	Add
013	731-06173	BAFFLE REAR: SP 800	£49.79	Add
014	732-04531A	SPR:EXTN:.375 OD x 2.2 LG 732-04531	£11.29	Add
015	732-04650	SPRING WAVE (MULTIPLE WAVES)	£6.63	Add
016	735-04059	GROM:RUBR:.77 ID x.91 OD x.35	£4.80	Add
017	736-0369	WASH:THRST:.508x1.000x.020	£2.97	Add
019	748-0390	SPCR:BRG SUPT:SP	£3.59	Add
01A	756-04236	PUL:3.035 OD	£17.66	Add
01B	732-04347	WIRE:TRANS:EURO	£11.51	Add
01C	712-04063	FLANGED NUT	£4.20	Add
01D	731-05100	LEVER CLUTCH	£13.37	Add
020	754-04146	BELT:V TYPE:3LX33.93	£29.41	Add
021	752S180S60	ENGINE KAWA 6.0HP FJ 180	£613.38	Add
022	752S180M50	ENGINE KAWA 6.0HP FJ 180V	N/A	POA
023	710-3208	SCREW HHCS:M10-1.5:25mm:GR8.8	£3.59	Add
024	736-0686	NO LONGER AVAILABLE	N/A	POA
031	752H19A4G4SD	B-ENGINE HONDA 25/61,9MM SHAFT	N/A	POA
032	752H16S4G4SD	GCV 160E-S4-G4-SD	N/A	POA
033	752H16A3G9SD	GCV 160E-A3-G9-SD	N/A	POA
040	752B0110B1	B-ENGINE B&S 800 SERIES 175CC	N/A	POA
041	752B1960B1	ENGINE B&S QUANTUM	N/A	POA
042	752B0165B1	ENGINE B&S 550SERIES W/O COVER	N/A	POA
051	752Z5P70MHB	ENGINE 173 CC OHV VERTIC SHAFT	£413.01	Add
052	752Z1P70RH	ENGINE 173 CC OHV VERTIC SHAFT	£408.47	Add
