MTD011117

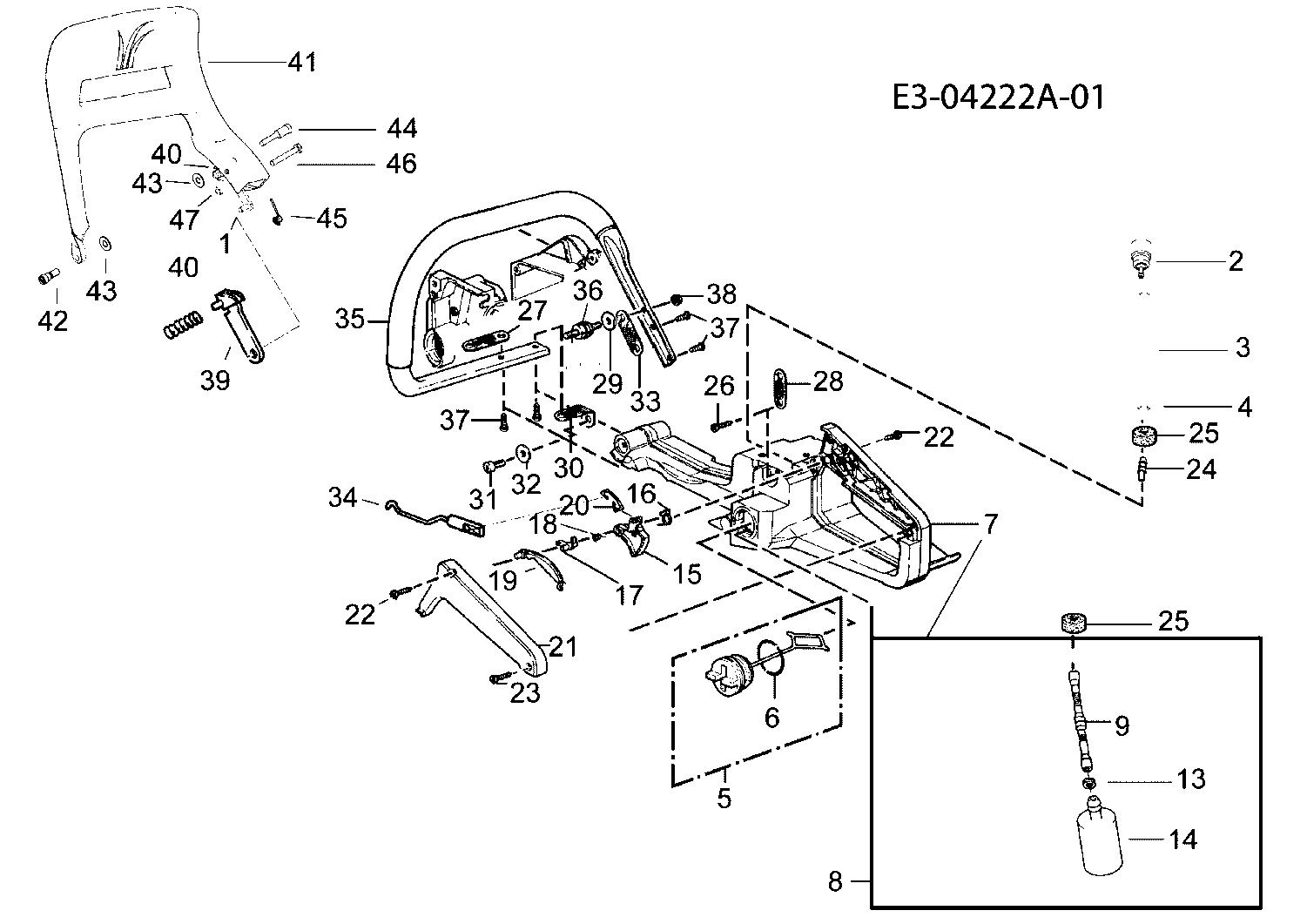

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011117

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 092.58.073 PIN £3.25 Add
002 092.58.317 VENTILATION SOCKET £16.55 Add
003 092.58.112 VENTILATION HOSE £23.46 Add
004 092.58.159 GROMMET £3.95 Add
005 092.58.313 TANK CAP £18.37 Add
006 092.58.100 GASKET £4.29 Add
007 092.58.419 MAIN HOUSING £157.98 Add
008 092.58.312 FUEL PICK-UP COMPL. £21.66 Add
009 092.58.363 FUEL HOSE £18.04 Add
013 092.58.162 TUBE EYE £3.95 Add
014 092.58.309 FUEL PICK-UP £20.55 Add
015 092.58.248 THROTTLE TRIGGER £5.69 Add
016 092.58.166 THROTTLE CONTROL SPRING £4.29 Add
017 092.58.384 STOP LEVER £5.05 Add
018 092.58.160 SPRING £4.15 Add
019 092.58.389 SAFETY LEVER £5.05 Add
020 092.58.214 THROTTLE LINKAGE £10.51 Add
021 092.58.375 GRIP CUP LEFT £16.99 Add
022 092.58.007 SCREW £3.25 Add
023 092.58.006 SCREW £3.25 Add
024 092.58.127 NIPPLE £16.55 Add
025 092.58.358 HOSE GUIDE £3.73 Add
026 092.58.022 SCREW £3.25 Add
027 092.58.187 SAFETY CATCH £7.34 Add
028 092.58.184 SAFETY CATCH £4.64 Add
029 092.58.053 WASHER £3.73 Add
030 092.58.186 SAFETY CATCH £7.34 Add
031 092.58.004 SCREW £3.25 Add
032 092.58.052 WASHER £3.73 Add
033 092.58.185 SAFETY CATCH £7.20 Add
034 092.58.321 THROTTLE LINKAGE £24.51 Add
035 092.58.440 HANDLE BAR £85.10 Add
036 092.58.181 RUBBER METAL CONNEXION £24.91 Add
037 092.58.022 SCREW £3.25 Add
038 092.58.047 NUT £3.73 Add
039 092.58.428 PRESSURE PLATE £20.89 Add
040 092.58.145 SPRING £3.95 Add
041 092.58.371 HAND PROTECTION £37.56 Add
042 092.58.020 SCREW £5.05 Add
043 092.58.151 SPRING WASHER £3.95 Add
044 092.58.342 SCREW £7.55 Add
045 092.58.172 TORSION SPRING £3.73 Add
046 092.58.344 SHIFT BOLT £9.14 Add
047 092.58.046 NUT £3.25 Add
