MTD011112

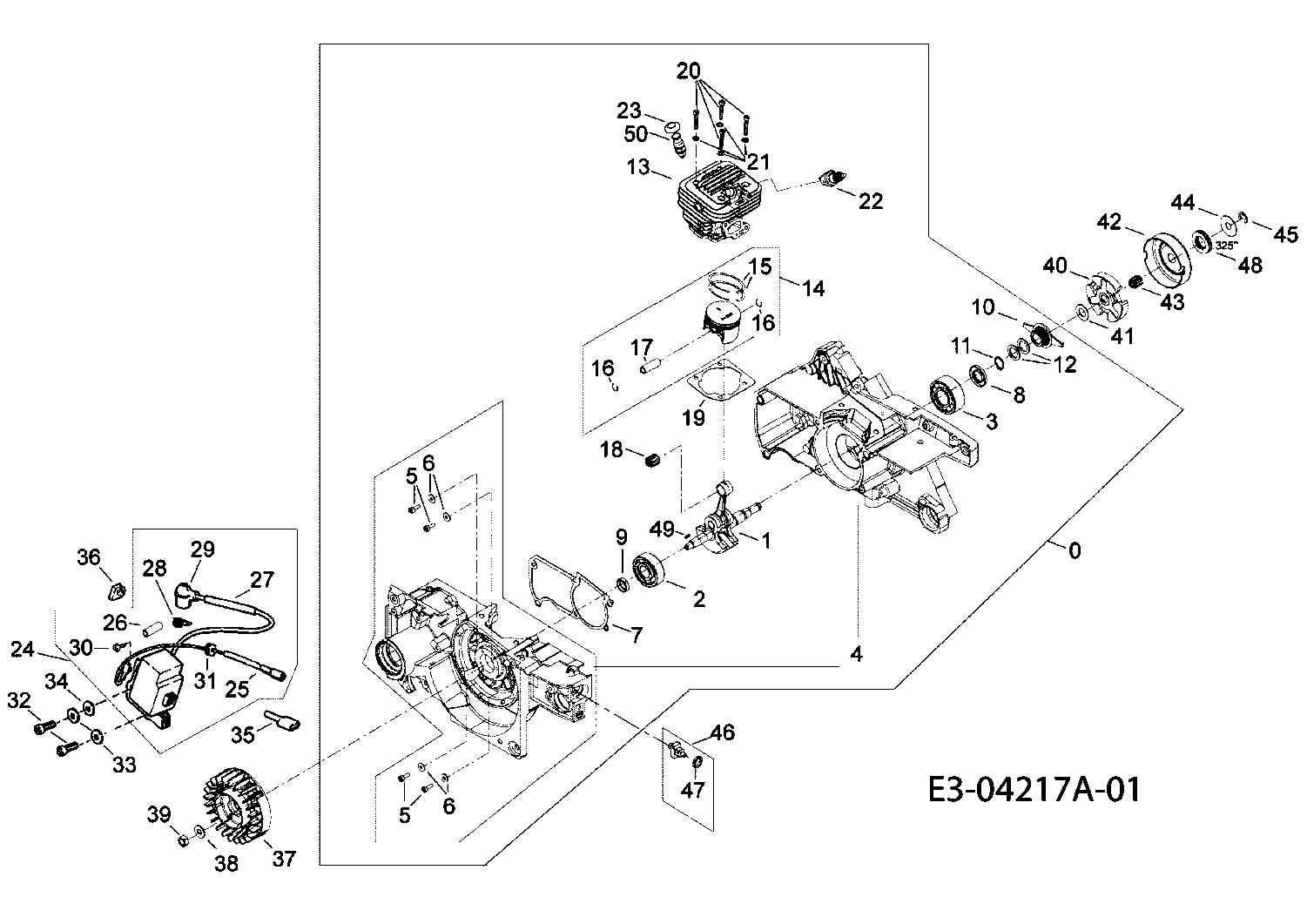

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
000	092.58.258	ENGINE	£544.77	Add
001	092.58.277	CRANKSHAFT	£254.82	Add
002	092.58.082	BALL BEARING 12X32X10MM	£37.44	Add
003	092.58.083	BALL BEARING 15X35X13MM	£52.45	Add
004	092.58.254	CRANCASE ASSY	N/A	POA
005	092.58.005	SCREW	£4.00	Add
006	092.58.069	TENSION WASHER	£4.80	Add
007	092.58.232	GASKET	£19.98	Add
008	092.58.089	OIL SEAL	£21.95	Add
009	092.58.090	OIL SEAL	£21.79	Add
010	092.58.406	NO LONGER AVAILABLE	N/A	POA
011	092.58.094	CIRCLIP	£3.94	Add
012	092.58.058	WASHER 15X22X0,5 mm	£3.80	Add
013	092.58.210	CYLINDER	£190.92	Add
014	092.58.271	PISTON	£233.89	Add
015	092.58.222	PISTON RING	N/A	POA
016	092.58.096	RING	£3.49	Add
017	092.58.213	PISTON PIN	£36.31	Add
018	092.58.085	NEEDLE SLEEVE	£45.60	Add
019	092.58.237	CYLINDER FOOT GASKET	£8.11	Add
020	092.58.011	SCREW	£3.39	Add
021	092.58.069	TENSION WASHER	£4.80	Add
022	092.58.280	SPARK PLUG	£21.44	Add
023	092.58.324	DECO-VALVE	£77.47	Add
024	092.58.281	IGNITION COIL PHELON	£293.96	Add
025	092.58.176	SHORT CIRCUIT CABLE	£24.05	Add
026	092.58.115	HOSE	£39.86	Add
027	092.58.111	HOSE	£20.98	Add
028	092.58.161	CONTACT SPRING	£3.94	Add
029	092.58.175	SPARK PLUG CAP	£17.87	Add
030	092.58.003	SCREW	£3.18	Add
031	092.58.124	GROMMET	£5.78	Add
032	092.58.025	SCREW	£3.39	Add
033	092.58.155	CURVED WASHER 4 mm	£4.17	Add
034	092.58.051	WASHER	£3.94	Add
035	092.58.123	GROMMET	£5.62	Add
036	092.58.240	GROMMET	£3.39	Add
037	092.58.291	FAN WHEEL	£234.28	Add
038	092.58.154	NO LONGER AVAILABLE	N/A	POA
039	092.58.043	NO LONGER AVAILABLE	N/A	POA
040	092.58.330	CENTRIFUGAL CLUTCH	£130.77	Add
041	092.58.156	WASHER	£6.01	Add
042	092.58.331	CLUTCH DRUM	£132.04	Add
043	092.58.086	NEEDLE SLEEVE	£27.67	Add
044	092.58.062	WASHER	£7.55	Add
045	092.58.092	SAFETY WASHER	£4.80	Add
046	092.58.278	SHORT CIRCUIT SWITCH	£35.35	Add
047	092.58.045	SHORT CIRCUIT SWITCH	£35.35	Add
048	092.58.328	RIM SPROCKET .325"	£43.50	Add
049	092.58.173	DISC SPRING 2X3,7 MM	£5.10	Add
050	092.58.180	RUBBER CAP	£3.39	Add
