MTD011106

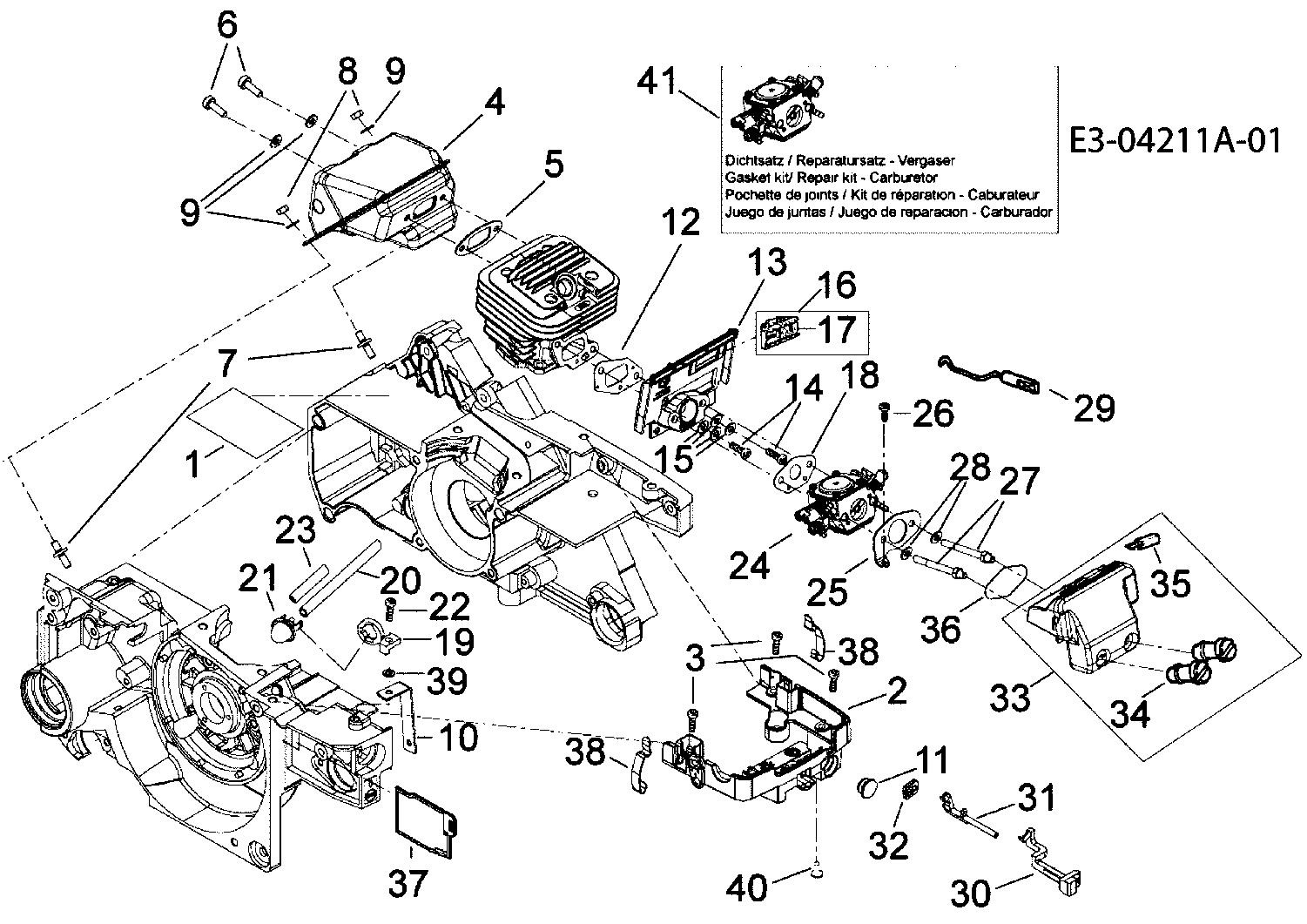

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011106

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 092.58.348 ISOLATING FOIL £4.39 Add
002 092.58.370 INTERMEDIATE HOUSING £10.95 Add
003 092.58.026 SCREW £3.34 Add
004 092.58.295 EXHAUST £130.24 Add
005 092.58.229 MUFFLER GASKET £7.55 Add
006 092.58.027 SCREW £4.00 Add
007 092.58.018 SCREW £18.36 Add
008 092.58.048 NUT £4.00 Add
009 092.58.153 TENSION WASHER £5.10 Add
010 092.58.184 SAFETY CATCH £4.94 Add
011 092.58.386 PLUG £3.94 Add
012 092.58.228 MANIFOLD GASKET £4.52 Add
013 092.58.287 MANIFOLD £55.90 Add
014 092.58.005 SCREW £4.00 Add
015 092.58.069 TENSION WASHER £4.80 Add
016 092.58.301 PLUG £13.98 Add
017 092.58.249 PLUG £6.15 Add
018 092.58.231 GASKET £7.26 Add
019 092.58.400 PRIMER SUPPORT £8.09 Add
020 092.58.120 HOSE £18.60 Add
021 092.58.310 PRIMER £42.98 Add
022 092.58.028 SCREW £4.00 Add
023 092.58.116 HOSE £26.52 Add
024 092.58.284 CARBURETOR £178.26 Add
025 092.58.350 SUPPORT £14.25 Add
026 092.58.031 SCREW £3.80 Add
027 092.58.016 SCREW £9.79 Add
028 092.58.068 SPRING RING £3.94 Add
029 092.58.321 THROTTLE LINKAGE £36.31 Add
030 092.58.409 CHOKE LEVER £15.90 Add
031 092.58.408 PIN £7.26 Add
032 092.58.356 CHOKE LEVER SEAT £4.94 Add
033 092.58.297 AIR FILTER £165.07 Add
034 092.58.012 SCREW £7.55 Add
035 092.58.251 PROFILE £5.00 Add
036 092.58.103 O-RING £4.17 Add
037 092.58.294 PRE-FILTER ASSEMBLY £25.06 Add
038 092.58.157 FASTENING CLIP £17.87 Add
039 092.58.069 TENSION WASHER £4.80 Add
040 092.58.182 BUFFER £5.78 Add
041 092.58.188 GASKET-KIT/REPAIR-KIT- £113.10 Add
