MTD016203

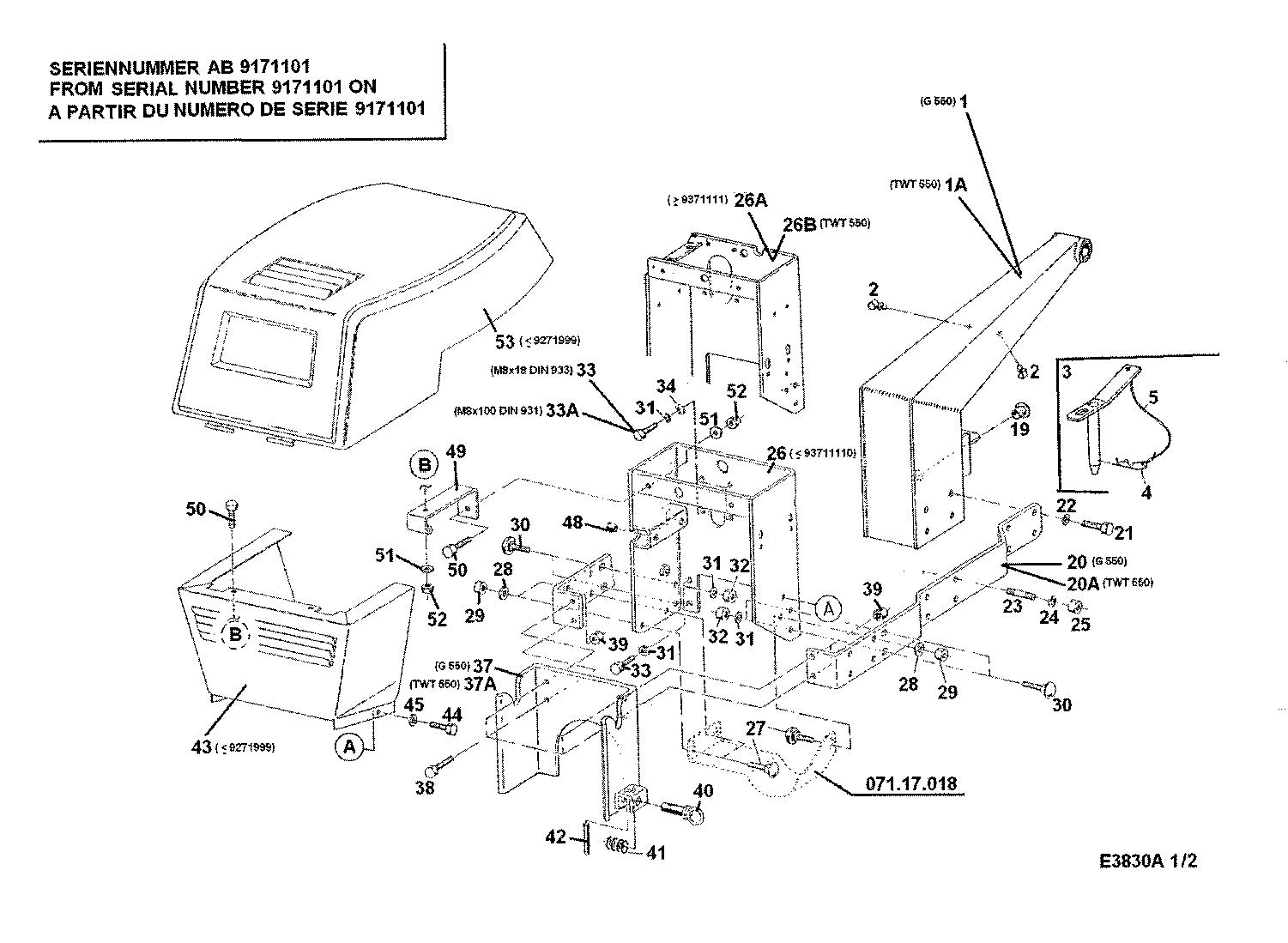

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.05.829	Lower handle	£201.94	Add
002	000.13.066	Cabel holder	£5.47	Add
003	071.59.907	BOLT	N/A	POA
004	000.17.010	Spring pin	£5.41	Add
005	R80.29.057	SEIL 3 MM	N/A	POA
019	082.23.002	Rubber sleeve	£11.93	Add
01A	071.05.839	UNTERHOLM VOLLST.	N/A	POA
020	071.59.026	Support	£96.55	Add
021	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
022	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
023	23.2441.39	Stud	£3.96	Add
024	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
025	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
026	071.46.812	Front support	£178.86	Add
027	710-1687	BOLT	£3.26	Add
028	736-0700	FLAT WASHER	£2.63	Add
029	712-0691	HEX NUT M6 DIN 985	£2.66	Add
030	710-1727	Screw 22.3419.25	£3.34	Add
031	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
032	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
033	710-1395	Screw 21.1441.69 (OBSOLETE) (OBSOLETE)	£3.85	Add
034	736-0700	FLAT WASHER	£2.63	Add
037	071.59.814	Bracket	£141.78	Add
038	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
039	712-0692	HEX NUT	£3.10	Add
040	071.59.817	Fastening bolt	£79.21	Add
041	000.30.232	Compression spring	£15.09	Add
042	25.3197.98	Spring pin	£3.77	Add
043	071.46.048	FRONTVERKLEIDUNG	£202.48	Add
044	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
045	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
048	000.75.038	Cable holder	£3.90	Add
049	071.46.026	Bracket	£24.79	Add
050	710-1690	HHCS:M6-1:16.00	£3.39	Add
051	736-0685	WASHER	£3.26	Add
052	712-0691	HEX NUT M6 DIN 985	£2.66	Add
053	071.46.811	HOOD	N/A	POA
20A	071.59.053	SLEEVE HITCH BRACKET ASSEMBLY	N/A	POA
26A	071.46.819	FRONTANBAURAHMEN VOLLST.	£292.16	Add
26B	071.46.824	FRONTANBAURAHMEN VOLLST.	N/A	POA
33A	21.1443.87	SCREW 710-2207	£6.37	Add
37A	071.59.830	KUPPELBUEGEL VOLLST.	N/A	POA
