MTD016185

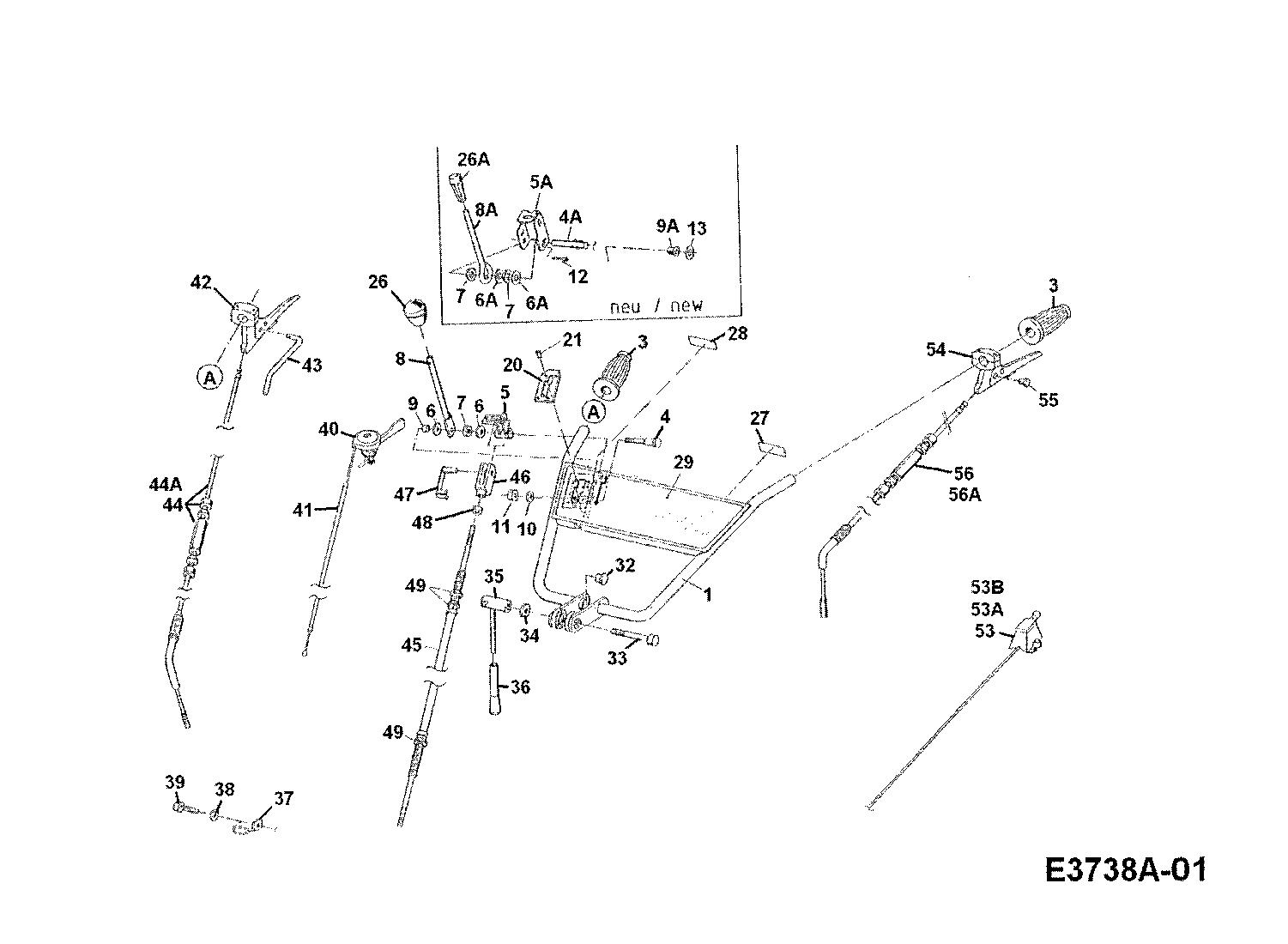

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.05.831	OBERHOLM VOLLST.	£253.38	Add
003	000.36.036	HANDLE GRIP	£15.40	Add
004	071.05.055	Stud	£47.20	Add
005	071.05.815	Guide bracket	N/A	POA
006	24.6485.19	Washer	N/A	POA
007	000.37.472	Rubber washer	£9.92	Add
008	071.05.811	Lever	£52.12	Add
009	071.05.068	Sleeve	£23.48	Add
010	736-0685	WASHER	£3.26	Add
011	712-0691	HEX NUT M6 DIN 985	£2.66	Add
012	24.6488.48	Pin	£3.03	Add
013	000.02.541	CLAMPING RING	£4.80	Add
020	071.05.099	Shifting guidage	£117.97	Add
021	000.05.053	Rivet	£2.77	Add
026	720-0355	Knob 000.36.023	£14.85	Add
027	000.49.849	Decal	N/A	POA
028	000.49.853	Decal	N/A	POA
029	000.49.969	LABEL	N/A	POA
032	000.34.283	Plug	N/A	POA
033	21.1444.25	Screw	£8.04	Add
034	736-0733	Washer 24.6486.25	£4.00	Add
035	071.05.819	Adjust nut	N/A	POA
036	000.36.055	Knob	£40.90	Add
037	001.10.150	Strap	N/A	POA
038	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
039	710-1714	Screw 21.1441.67	£2.93	Add
040	000.09.254	Gas control lever	£50.96	Add
041	000.46.349	Bowden wire	£37.67	Add
042	000.09.141	Shift lever	£73.85	Add
043	071.20.013	Shifting lock	£55.51	Add
044	000.46.350	Bowden wire	£63.07	Add
045	000.46.341	Bowden wire cpl.	£179.70	Add
046	28.6218.09	Fork	£10.03	Add
047	25.9425.03	BOLT	£10.62	Add
048	712-0638	Nut 24.1421.12	£3.58	Add
049	24.1424.22	Nut	£3.49	Add
04A	071.05.114	Axe	£48.36	Add
053	000.09.260	Stop switch	£58.40	Add
054	000.09.141	Shift lever	£73.85	Add
055	090.38.006	Cable clamp	£4.65	Add
056	000.46.356	Bowden wire	£86.71	Add
05A	071.05.112	Guide bracket	£54.69	Add
06A	736-0702	WASHER	£2.40	Add
08A	071.05.113	Lever-shifting	£19.29	Add
09A	000.24.054	Bushing	£8.85	Add
26A	000.36.051	Knob	£11.55	Add
44A	000.75.038	Cable holder	£3.90	Add
53A	28.9050.30	Receptacle	N/A	POA
53B	R01.08.008	KABEL H07V-K	£4.24	Add
56A	000.75.038	Cable holder	£3.90	Add
