MTD007593

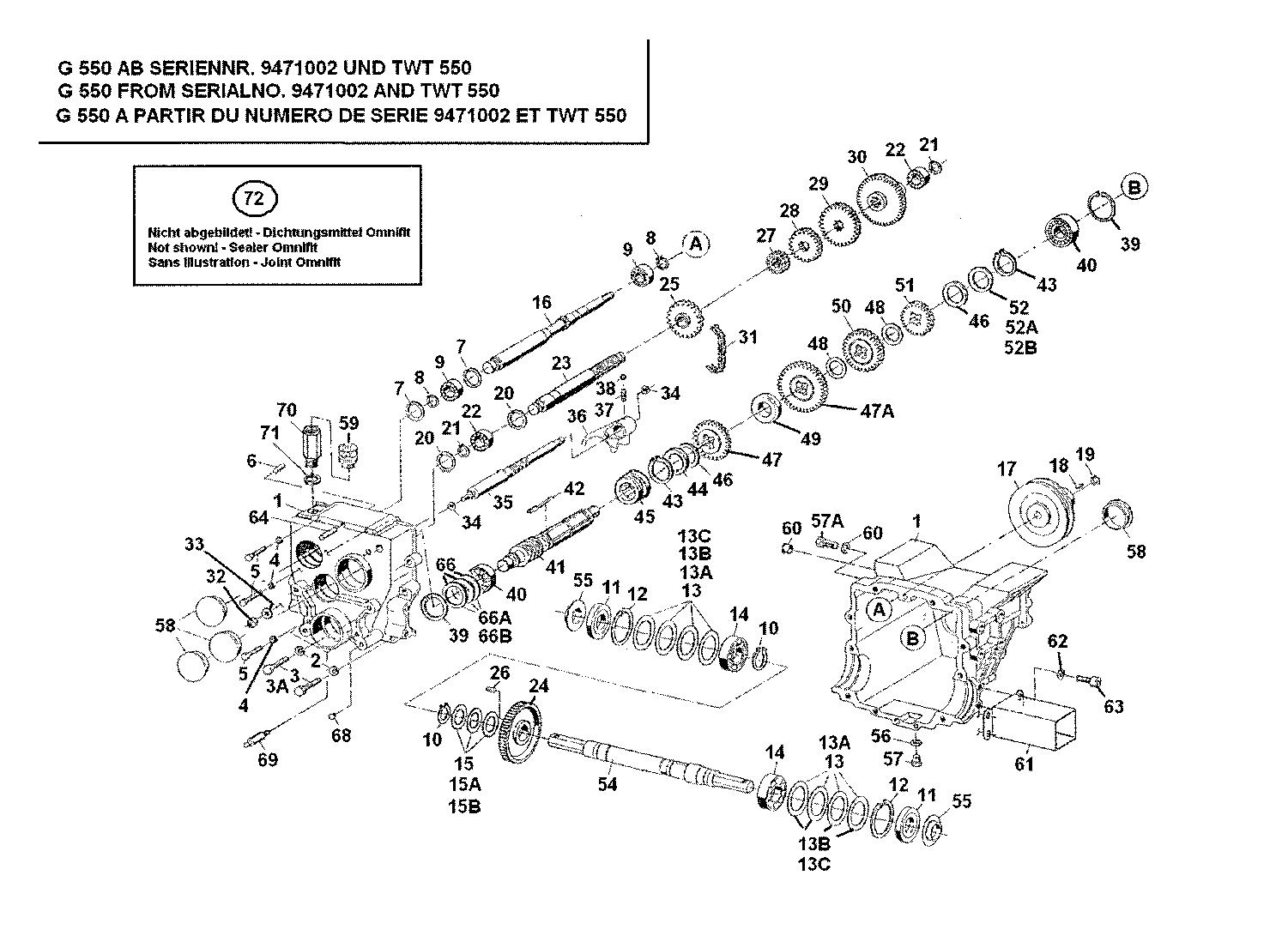

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	071.19.921	6-GANG-GETRIEBE KPL.	£3,610.72	Add
002	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
003	710-1703	Screw 21.1443.77	£3.39	Add
004	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
005	21.1443.54	Screw	£4.11	Add
006	25.3222.25	Pin	N/A	POA
007	24.8653.18	Circlip	£9.23	Add
008	716-04132	RING	£3.69	Add
009	26.1100.04	Bearing	£14.70	Add
010	24.8170.13	Circlip	£8.59	Add
011	28.1156.27	B1-35X45X7	£36.93	Add
012	24.8653.26	Circlip	£9.10	Add
013	24.6272.10	Distance shim	£5.76	Add
014	26.1020.06	Ball bearing	£22.25	Add
015	24.6271.53	Shim	£3.49	Add
016	071.19.189	EINGANGSWELLE	£164.03	Add
017	071.19.141	V-belt pulley	£115.59	Add
018	25.5231.63	Key	£3.96	Add
019	28.3591.15	Retaining ring	£3.34	Add
020	24.8653.18	Circlip	£9.23	Add
021	716-04132	RING	£3.69	Add
022	26.1100.04	Bearing	£14.70	Add
023	071.19.156	Lay shaft	£109.99	Add
024	071.19.150	Worm wheel	N/A	POA
025	071.19.157	Chaine wheel	£77.57	Add
026	25.5232.05	Key	£4.11	Add
027	071.19.122	Pinion	£77.53	Add
028	071.19.121	Pinion	£101.13	Add
029	071.19.159	Pinion	£127.02	Add
030	071.19.119	Pinion	£138.96	Add
031	000.75.937	Roller chain	£22.77	Add
032	712-0692	HEX NUT	£3.10	Add
033	736-0700	FLAT WASHER	£2.63	Add
034	000.25.267	O-Ring	£4.76	Add
035	071.19.118	Shifting shaft	£114.22	Add
036	071.19.135	Shifting lever	£69.51	Add
037	000.30.309	Compression spring	£6.33	Add
038	26.9611.23	Ball	£2.72	Add
039	24.8653.20	Circlip	£7.92	Add
03A	21.5441.49	Screw	£3.32	Add
040	26.1025.04	Ball bearing	£31.78	Add
041	071.19.170	Worm shaft	£470.47	Add
042	071.19.179	Key	£48.23	Add
043	28.8170.12		N/A	POA
044	071.19.181	Shim	£65.60	Add
045	071.19.180	Shift ring	£88.24	Add
046	24.6279.23	Shim	£4.41	Add
047	071.19.158	Ratchel wheel	£128.63	Add
048	071.19.074	Friction washer	£26.74	Add
049	071.19.123	Washer	£50.47	Add
050	071.19.137	Ratchel wheel	£156.95	Add
051	071.19.160	Ratchel wheel	£102.07	Add
052	24.6274.40	Shim	£5.31	Add
054	071.19.161	Wheel shaft	£179.12	Add
055	071.19.165	Scraper	£12.15	Add
056	28.5871.21	SEAL RING	N/A	POA
057	000.04.307	Screw	£14.12	Add
058	000.25.270	Cap	£12.24	Add
059	000.04.303	Bleeder plug	£39.06	Add
060	24.7477.27	Plug	N/A	POA
061	071.29.024	Protection	£56.46	Add
062	24.8195.56	SPRING LOCK WASHER/DIA 8	£3.20	Add
063	21.5441.41	Screw	£5.52	Add
064	25.3222.25	Pin	N/A	POA
066	24.6271.75	SHIM 000.20.472	£5.95	Add
068	000.34.052	Plug	£4.42	Add
069	071.19.166	Trunnion	£24.38	Add
070	071.19.192	STUTZEN	£83.93	Add
071	28.5871.32	SEAL RING	£2.72	Add
072	W00530.205	OMNIFIT DICHTUNGSMITTEL FD10	£204.30	Add
13A	24.6272.11	Shim	£5.95	Add
13B	24.6272.12	Shim	£5.95	Add
13C	24.6272.13	Shim	£5.95	Add
15A	24.6271.54	Shim	£3.49	Add
15B	24.6271.55	Shim	£3.66	Add
47A	071.19.138	Ratchel wheel	£156.33	Add
52A	24.6271.50	Shim	N/A	POA
52B	736-0693	SHIM WASHER	£4.85	Add
57A	28.5514.08	Plug	£6.30	Add
66A	24.6271.73	Shim	£5.95	Add
66B	24.6271.72	Shim	£5.95	Add
