FG023_0010

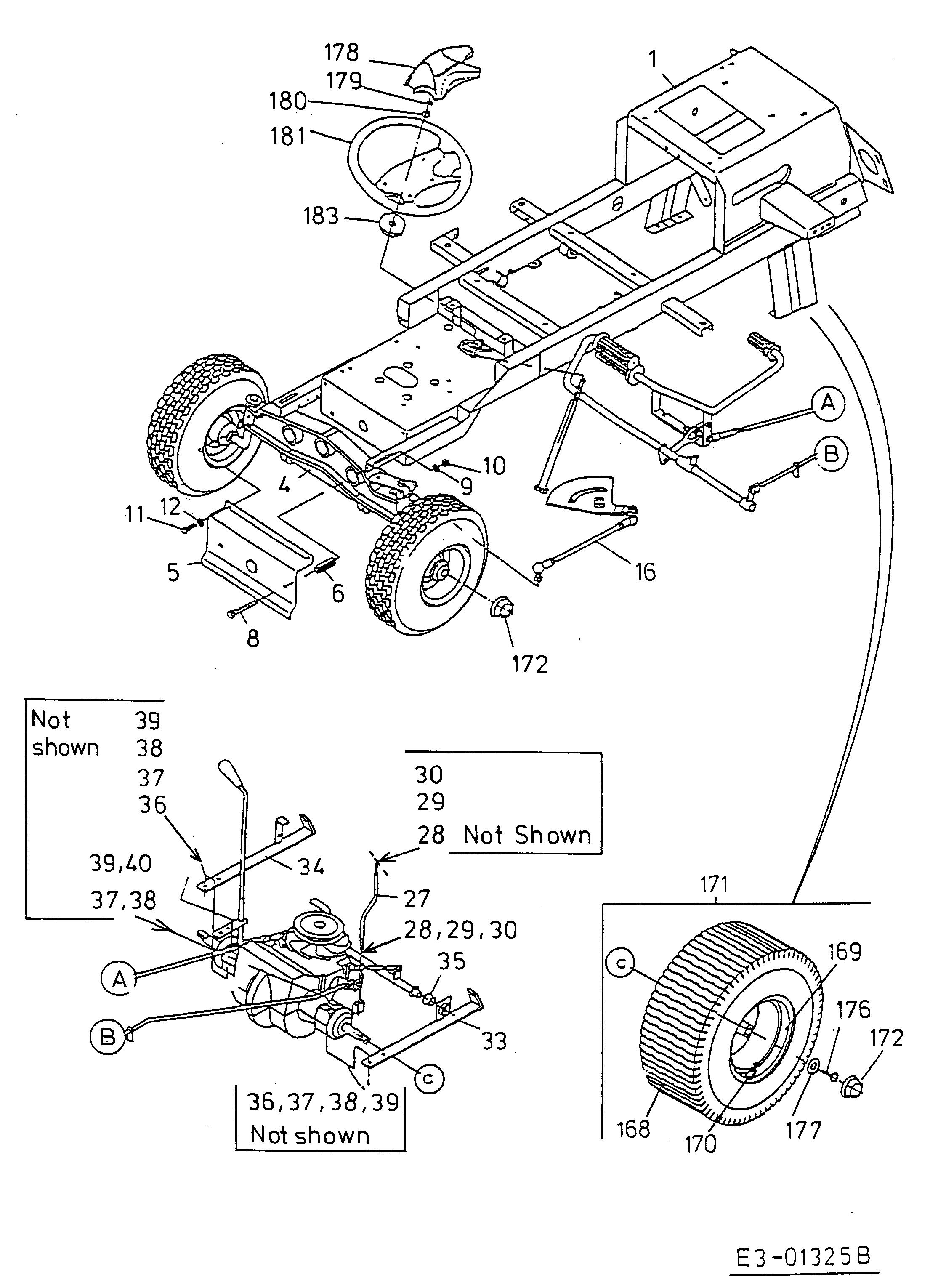

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG023_0010

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 WI-E2792 FRAME £1,003.39 Add
004 WI-E4164 FRONT AXLE N/A POA
005 WI-E2900 HOLDER £150.33 Add
006 WI-E0069 SPACER £25.65 Add
008 21.1444.00 Screw £9.08 Add
009 24.8196.22 LOCK WASHER £4.69 Add
010 712-0635 NUT M10-8 DIN 934 £2.93 Add
011 710-1376 CAP SCREW £4.50 Add
012 736-0665 LOCK WASHER 24.8196.18 £3.34 Add
016 WI-E4160 STEERING ROD £378.63 Add
027 WI-E3064 SUPPORT ARM £36.96 Add
028 736-0700 FLAT WASHER £2.63 Add
029 736-0665 LOCK WASHER 24.8196.18 £3.34 Add
030 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.72 Add
033 WI-E3500 BRKT:TRNMT N/A POA
034 WI-E3501 BRKT:TRNMT N/A POA
035 WI-11572 spacer N/A POA
036 710-1792 Screw 21.1443.81 £4.76 Add
037 736-0665 LOCK WASHER 24.8196.18 £3.34 Add
038 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.72 Add
039 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
040 21.1443.80 Screw £5.78 Add
168 734-1730 TIRE-TUBELESS 2 734-1596 £159.43 Add
168 734-1730 TIRE-TUBELESS 2 734-1596 £159.43 Add
168 734-0448 TIRE:18 X 9.5 £140.76 Add
169 634-04369499 WHEEL RIM 634-0070499 N/A POA
169 634-04369499 WHEEL RIM 634-0070499 N/A POA
170 734-0255 VALVE - TUBELESS AIR £7.02 Add
170 734-0255 VALVE - TUBELESS AIR £7.02 Add
171 734-0817662 WHL COMP:18x9.5 734-0817 £225.94 Add
171 734-1675499 WHEEL CPL. 20X8.00 £334.83 Add
171 734-1675499 WHEEL CPL. 20X8.00 £334.83 Add
172 731-0484A HUB CAP £5.05 Add
176 710-0627 HEX SCREW £3.32 Add
177 WI-E4171 NO LONGER AVAILABLE N/A POA
178 731-3139 NO LONGER AVAILABLE N/A POA
179 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
180 712-0692 HEX NUT £3.10 Add
181 631-0005 NO LONGER AVAILABLE N/A POA
183 722-3019 NO LONGER AVAILABLE N/A POA
