MTD007952

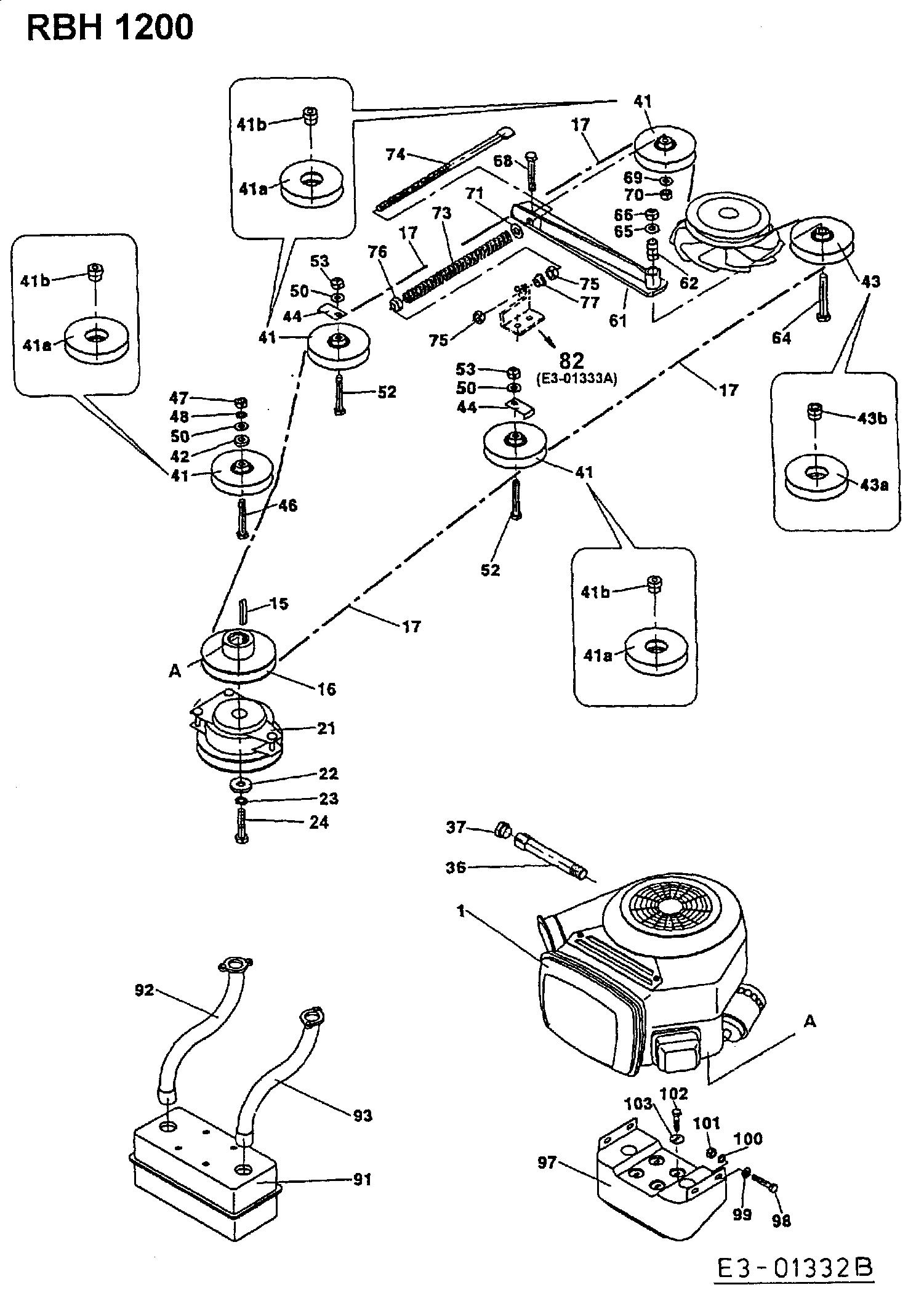

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007952

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 752B1124E1 ENGINE N/A POA
015 WI-E3000 KEY £12.67 Add
016 WI-E0710 PULLEY (RED) £135.14 Add
017 WI-22661 BELT £67.37 Add
021 WI-17570 NO LONGER AVAILABLE N/A POA
022 WI-E3019 WASHER £10.66 Add
023 24.8196.25 FEDERRING DIN 7980 N/A POA
024 WI-19154 SCREW £10.03 Add
036 WI-D3637 TUBE £149.88 Add
037 090.03.077 Oil drain plug £12.27 Add
041 WI-E3001 NLA 28/09/21 - PULLEY £125.55 Add
042 WI-E0712 TUBE £12.47 Add
043 WI-E3002 PULLEY £146.77 Add
044 WI-E2985 BELT GUIDE £8.58 Add
046 710-1703 Screw 21.1443.77 £3.39 Add
047 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.72 Add
048 736-0665 LOCK WASHER 24.8196.18 £3.34 Add
050 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
052 710-1764 SCREW:DIN 931-8.8:M10X70 21.1443.76 £4.36 Add
053 712-0692 HEX NUT £3.10 Add
061 WI-E4195 TENSION ARM £60.08 Add
062 WI-E2998 NO LONGER AVAILABLE N/A POA
064 710-1735 SCREW M10x60-8.8 DIN 931 £4.92 Add
065 736-0692 Flat Washer, 3/8" 43070 £3.20 Add
066 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.66 Add
068 710-1703 Screw 21.1443.77 £3.39 Add
069 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
070 712-0692 HEX NUT £3.10 Add
071 736-0692 Flat Washer, 3/8" 43070 £3.20 Add
073 WI-29801 SPRING (RED) £6.94 Add
074 WI-E3848 BAR £13.40 Add
075 24.1423.22 Nut £3.49 Add
076 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.66 Add
077 WI-E3851 SPACER £19.05 Add
091 WI-22962 NO LONGER AVAILABLE N/A POA
092 WI-D3625 TUBE (RED) £146.93 Add
093 WI-D3626 TUBE (RED) £146.93 Add
097 WI-E3400 EXHAUST PROTECTION (RED) £123.49 Add
098 710-1682 SCR:M8-1:25.00 LG:DIN 933 £2.98 Add
099 736-0700 FLAT WASHER £2.63 Add
100 736-0665 LOCK WASHER 24.8196.18 £3.34 Add
101 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.72 Add
102 WI-25674 NO LONGER AVAILABLE N/A POA
103 WI-D3624 WASHER £15.39 Add
41A WI-E3001 NLA 28/09/21 - PULLEY £125.55 Add
41B WI-E3003 INSERT £20.58 Add
43A WI-E3001 NLA 28/09/21 - PULLEY £125.55 Add
43B WI-E3004 PULLEY (RED) £20.58 Add
