MTD007963

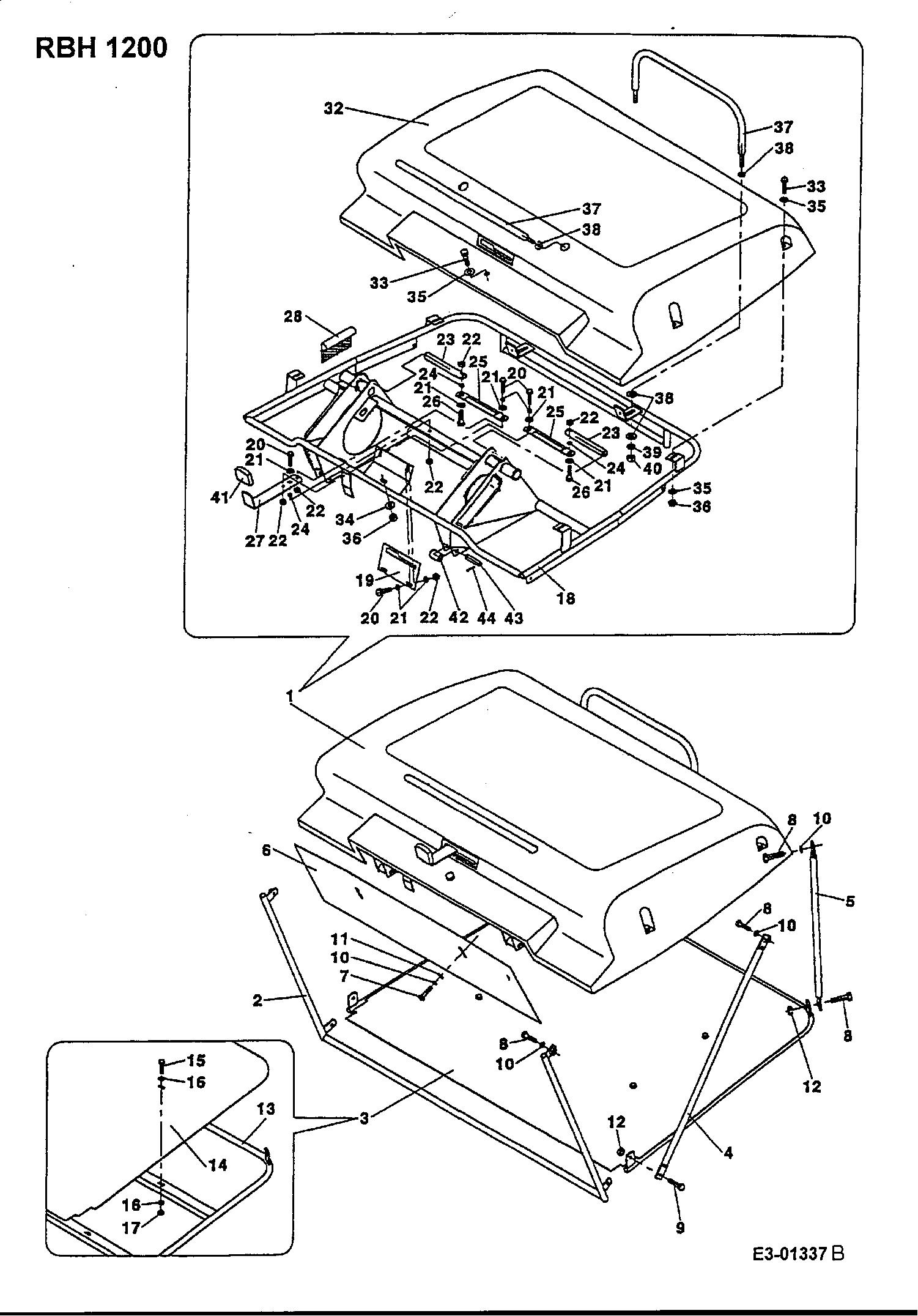

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	WI-E4158	NO LONGER AVAILABLE	N/A	POA
002	WI-E3382	FRAME (RED)	£113.21	Add
003	WI-E3384	FRAME	£335.78	Add
004	WI-E3391	BAR (RED)	£26.83	Add
005	WI-E3393	BAR (RED)	£19.85	Add
006	WI-E5642	PLATE CATCHER	£142.60	Add
007	21.1441.44	Screw	£4.69	Add
008	710-1690	HHCS:M6-1:16.00	£3.39	Add
009	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
010	24.8196.14	NO LONGER AVAILABLE	N/A	POA
011	736-0668	WASHER	£2.23	Add
012	712-0691	HEX NUT M6 DIN 985	£2.66	Add
013	WI-E3385	FRAME BASE	£335.78	Add
014	WI-E3385	FRAME BASE	£335.78	Add
015	710-1690	HHCS:M6-1:16.00	£3.39	Add
016	736-0668	WASHER	£2.23	Add
017	712-0691	HEX NUT M6 DIN 985	£2.66	Add
018	WI-E3532	FRAME	£498.69	Add
019	WI-E3374	LINE	£24.66	Add
020	710-1690	HHCS:M6-1:16.00	£3.39	Add
021	736-0668	WASHER	£2.23	Add
022	712-0691	HEX NUT M6 DIN 985	£2.66	Add
023	WI-E0631	PIN RBH1200	£30.02	Add
024	WI-E0633	SPACER	£12.47	Add
025	WI-E0634	DRAW ROD	£11.25	Add
026	710-1399	SCREW HEX	£4.62	Add
027	WI-E3375	LEVER	£14.65	Add
028	WI-26144	BAG	£236.80	Add
032	WI-E4159	COVER	£176.90	Add
033	710-1705	HEX. SCREW:M5X16:DIN 933 8.8	£4.00	Add
034	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
035	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
036	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
037	WI-E3436	HANDLE	£84.18	Add
038	736-0692	Flat Washer, 3/8" 43070	£3.20	Add
039	24.8196.22	LOCK WASHER	£4.69	Add
040	712-0635	NUT M10-8 DIN 934	£2.93	Add
041	WI-24581	GRIP	£8.54	Add
042	WI-E3526	BUSH	£19.39	Add
043	WI-E3527	PIN	£17.51	Add
044	24.6488.46	NO LONGER AVAILABLE	N/A	POA
